Precision, Durability, and Seamless Control-All in One Device

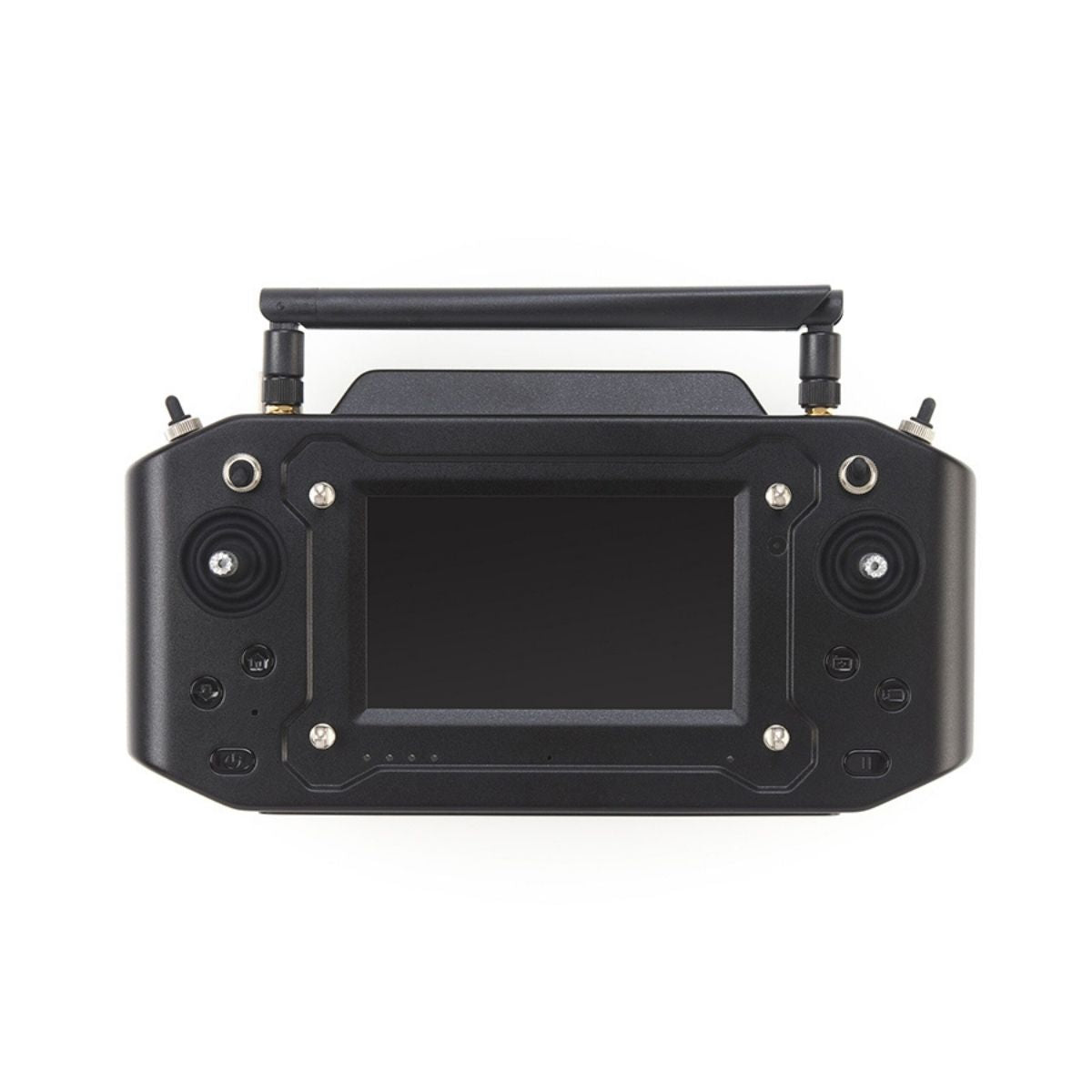

The ACSL TENSO-F3 Smart Controller is the industrial-grade solution engineered to give you full command of your ACSL SOTEN drone. Fully integrated with the ACSL TAKEOFF ground control system, it provides a high-performance interface for mission-critical operations such as inspections, surveys, and emergency response.
Equipped with a bright 5-inch, Full HD display and long-range wireless capabilities-including LTE and Wi-Fi-the TENSO-F3 ensures stable, real-time data transmission. With a 3-hour battery life (extendable via USB-C), it's ready for long operations in the field.
Crafted with a rugged, IP43-rated body, this smart controller is ready to perform in demanding environments. When your mission matters, rely on TENSO.
Specifications
- Dimensions: 10.8 x 6.5 x 2.7 inches
- Weight: 2.3 lbs
- Display Size: 5 inches
- Resolution: 1920 x 1080
- Display Brightness: 1000 nits
-
Controls:
- 2-axis control sticks
- 2 control wheels
- Photo capture button
- Video recording button
- Go-home button
- Auto-landing button
- Pause/resume button
- Power button
- Emergency stop button
- Flight mode switch
- Collision avoidance on/off switch
-
Built-in Indicators:
- Vibration motor
- Connection indicator
- Battery level indicator
-
Built-in Sensors:
- GNSS module
- Light sensor (auto brightness)
- Microphone
- Operating Time: 3 hours (can be extended by powering through USB-C)
- Operating Frequency: 2.4 GHz
- Operating Range: 2.5 miles (without obstruction or interference)
- Wireless Connectivity: Wi-Fi, LTE
-
Environmental:
- Operating temperature range: 14°F - 104°F
- Storage temperature range: 14°F - 140°F
- Charging temperature range: 41°F - 140°F
In The Box
- 1x ACSL SOTEN TENSO-F3 Smart Controller
