Take Control of Precision and Performance with Anzu Raptor T
The Anzu Raptor T, developed by U.S.-based Anzu Robotics, delivers cutting-edge performance with features designed for professionals. Powered by American-made software from Aloft, this drone ensures enhanced data security, compliance with FAA regulations, and a seamless user experience.
By prioritizing domestic technology and secure data storage, Anzu Robotics addresses concerns about foreign-made technology while providing precision, endurance, and versatility for a wide range of applications.
Exceptional Visual and Thermal Imaging
The Anzu Raptor T redefines imaging capabilities with a robust camera system:
-
56x Hybrid Zoom: Capture clear, detailed visuals from various distances.
-
640x512 LWIR Thermal Imaging Camera: High-resolution thermal imaging enables precise temperature analysis for tasks such as industrial inspections and search and rescue missions.
-
48MP and 12MP Visual Cameras: Deliver unparalleled image quality for a wide range of applications.
This advanced imaging setup ensures professionals can gather critical data in any operational environment.
Endurance for Demanding Missions
Designed to tackle extensive missions, the Anzu Raptor T boasts:
-
Flight Time: Up to 45 minutes on a single charge.
-
Range: Covers up to 9 miles, ensuring operational efficiency for large-scale tasks.
With its extended capabilities, the Raptor T excels in scenarios requiring sustained performance and wide coverage.
Precision Navigation with RTK
The optional RTK module offers centimeter-level accuracy for applications that demand precision. Whether navigating complex terrains or conducting detailed inspections, this feature ensures reliable performance and optimal results.
Flexible and Seamless Operations
The Raptor T integrates smoothly with third-party applications like DroneLink and DroneDeploy, making it ideal for automated mapping missions. Its compatibility with popular tools enhances versatility and provides professional users with a tailored, efficient workflow.
Uncompromising Safety and Compliance
Anzu Robotics prioritizes safety, security, and regulatory compliance:
-
Data Security: All data is stored securely on U.S.-based servers, guaranteeing customer privacy.
-
FAA Compliance: The Aloft Air Control app ensures adherence to FAA regulations, streamlining operations with pre-flight checklists and LAANC authorizations.
-
Obstacle Avoidance and Safety Features: Enhance operational safety and protect assets during complex missions.
These measures empower users to operate responsibly while protecting lives, assets, and sensitive data.
Tailored Solutions for Every Industry
Public Safety:
-
Locate missing persons with thermal imaging during search and rescue operations.
-
Monitor fire dynamics and identify hotspots for firefighting strategies.
-
Conduct surveillance and support law enforcement missions discreetly.
Industrial Inspections:
-
Assess powerlines, pipelines, and other infrastructure for faults and anomalies.
-
Perform detailed roof and building inspections for structural integrity.
Agriculture:
-
Evaluate crop health with infrared imaging.
-
Optimize irrigation and detect pest infestations or diseases.
Environmental Monitoring:
-
Track wildlife activity without disturbance.
-
Survey land to monitor ecological changes or assess damage.
The Anzu Raptor T’s combination of imaging technology, endurance, and precision makes it an indispensable tool for professionals across multiple sectors.
Innovation and Performance Redefined
With industry-leading thermal imaging, extended flight capabilities, and seamless integration with third-party tools, the Anzu Raptor T embodies innovation and reliability. From public safety to industrial inspections and environmental monitoring, this drone sets a new standard in professional drone technology.
Why Choose DSLRPros?
At DSLRPros, our mission is to provide cutting-edge drone solutions for diverse industries.
- Tailored Applications: Specialized for sectors like agriculture, safety, and energy.
- Insightful Expertise: We understand and address industry-specific challenges.
- Innovative Equipment: Featuring drones like DJI Phantom with advanced features.
- Reliable Data Solutions: GDPR-compliant systems built for efficiency.
- Supportive Training: Equipping you with tools and knowledge to succeed.
We combine technology, expertise, and support to drive results.
Specifications
Aircraft
- Weight (with propellers, without accessories): DJI Mavic 3E: 915 g | DJI Mavic 3T: 920 g
- Max Takeoff Weight: DJI Mavic 3E: 1,050 g | DJI Mavic 3T: 1,050 g
- Dimensions: Folded (without propellers): 221×96.3×90.3 mm (L×W×H) | Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
- Diagonal Distance: 1 mm
- Max Ascent Speed: 6 m/s (Normal Mode) | 8 m/s (Sport Mode)
- Max Descent Speed: 6 m/s (Normal Mode) | 6 m/s (Sport Mode)
- Max Flight Speed (at sea level, no wind): 15 m/s (Normal Mode) | Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode)
- Max Wind Speed Resistance: 12 m/s
- Max Take-off Altitude Above Sea Level: 6000 m (without payload)
- Max Flight Time (no wind): 45 mins
- Max Hover Time (no wind): 38 mins
- Max Flight Distance: 32 km
- Max Tilt Angle: 30° (Normal Mode) | 35° (Sport Mode)
- Max Angular Velocity: 200°/s
- GNSS: GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
- Hovering Accuracy: Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) | Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
- Operating Temperature Range: -10° to 40° C (14° to 104° F)
- Internal Storage: N/A
- Motor Model: 2008
- Propeller Model: 9453F Propellers for Enterprise
- Beacon: Built into the aircraft
Wide Camera
- Sensor: DJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MP | DJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
- Lens: DJI Mavic 3E: FOV: 84°; Format Equivalent: 24 mm; Aperture: f/2.8-f/11; Focus: 1 m to ∞ | DJI Mavic 3T: FOV: 84°; Format Equivalent: 24 mm; Aperture: f/2.8; Focus: 1 m to ∞
- ISO Range: DJI Mavic 3E: 100-6400 | DJI Mavic 3T: 100-25600
- Shutter Speed: DJI Mavic 3E: Electronic Shutter: 8-1/8000 s; Mechanical Shutter: 8-1/2000 s | DJI Mavic 3T: Electronic Shutter: 8-1/8000 s; Max Image Size; DJI Mavic 3E: 5280×3956; DJI Mavic 3T: 8000×6000
- Still Photography Modes: DJI Mavic 3E: Single: 20 MP; Timed: 20 MP; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s; JPEG+RAW: 3/5/7/10/15/20/30/60 s; Smart Low-light Shooting: 20 MP; Panorama: 20 MP (raw image) | DJI Mavic 3T:
- Single: 12 MP/48 MP; Timed: 12 MP/48 MP; JPEG: 2/3/5/7/10/15/20/30/60 s*; Panorama: 12 MP (raw image); 100 MP (stitched image); Smart Low-light Shooting: 12 MP | * Shooting 48MP photo does not support 2s interval
- Video Resolution:264 | 4K: 3840×2160@30fps | FHD: 1920×1080@30fps
- Bitrate: DJI Mavic 3E: 4K: 130 Mbps; FHD: 70 Mbps | DJI Mavic 3T: 4K: 85 Mbps; FHD: 30 Mbps
- Supported File Formats: exFAT
- Photo Format: DJI Mavic 3E: JPEG/DNG (RAW) | DJI Mavic 3T: JPEG
- Video Format: MP4 (MPEG-4 AVC/H.264)
Tele Camera
- Sensor: 1/2-inch CMOS, Effective pixels: 12 MP
- Lens: FOV: 15° | Format Equivalent: 162 mm | Aperture: f/4.4 | Focus: 3 m to ∞
- ISO Range: DJI Mavic 3E: 100-6400 | DJI Mavic 3T: 100-25600
- Shutter Speed: Electronic Shutter: 8-1/8000 s
- Max Image Size: 4000×3000
- Photo Format: JPEG
- Video Format: MP4 (MPEG-4 AVC/H.264)
- Still Photography Modes: DJI Mavic 3E: Single: 12 MP; Timed: 12 MP; JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s; Smart Low-light Shooting: 12 MP | DJI Mavic 3T:
- Single: 12 MP; Timed: 12 MP; JPEG: 2/3/5/7/10/15/20/30/60 s; Smart Low-light Shooting: 12 MP
- Video Resolution: H.264 | 4K: 3840×2160@30fps | FHD: 1920×1080@30fps
- Bitrate: DJI Mavic 3E: 4K: 130 Mbps; FHD: 70 Mbps | DJI Mavic 3T: 4K: 85 Mbps; FHD: 30 Mbps
- Digital Zoom: 8x (56x hybrid zoom)
Thermal Camera
- Thermal Imager: Uncooled VOx Microbolometer
- Pixel Pitch: 12 μm
- Frame Rate: 30 Hz
- Lens: DFOV: 61° | Format Equivalent: 40 mm | Aperture: f/1.0 | Focus: 5 m to ∞
- Sensitivity: ≤50 mk@F1.1
- Temperature Measurement Method: Spot Meter, Area Measurement
- Temperature Measurement Range: -20° to 150° C (-4° to 302° F, High Gain Mode) | 0° to 500° C (32° to 932° F, Low Gain Mode)
- Palette: White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
- Photo Format: JPEG (8-bit) | R-JPEG (16-bit)
- Video Resolution: 640×512@30fps
- Bitrate: 6 Mbps
- Video Format: MP4 (MPEG-4 AVC/H.264)
- Still Photography Modes: DJI Mavic 3T: Single: 640×512; Timed: 640×512; JPEG: 2/3/5/7/10/15/20/30/60 s
- Digital Zoom: 28x
- Infrared Wavelength: 8-14 μm
- Infrared Temperature Measurement Accuracy: ±2° C or ±2% (using the larger value)
Gimbal
- Stabilization: 3-axis (tilt, roll, pan)
- Mechanical Range: DJI Mavic 3E: Tilt: -135° to 100°; Roll: -45° to 45°; Pan: -27° to 27° | DJI Mavic 3T: Tilt: -135° to 45°; Roll: -45° to 45°; Pan: -27° to 27°
- Controllable Range: Tilt: -90° to 35° | Pan: Not controllable
- Max Control Speed (tilt): 100°/s
- Angular Vibration Range: ±0.007°
Sensing
- Type: Omnidirectional binocular vision system supplemented with an infrared sensor at the bottom of the aircraft.
- Forward: Measurement Range: 0.5-20 m| Detection Range: 0.5-200 m | Effective Sensing Speed: Flight Speed ≤15 m/s| FOV: Horizontal 90°, Vertical 103°
- Backward: Measurement Range: 0.5-16 m | Effective Sensing Speed: Flight Speed ≤12 m/s | FOV: Horizontal 90°, Vertical 103°
- Lateral: Measurement Range: 0.5-25 m | Effective Sensing Speed: Flight Speed ≤15 m/s | FOV: Horizontal 90°, Vertical 85°
- Upward: Measurement Range: 0.2-10 m | Effective Sensing Speed: Flight Speed ≤6 m/s | FOV: Front and Back 100°, Left and Right 90°
- Downward: Measurement Range: 0.3-18 m | Effective Sensing Speed: Flight Speed ≤6 m/s | FOV: Front and Back 130°, Left and Right 160°
- Operating Environment: Forward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15) | Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)
Video Transmission
- Video Transmission System: DJI O3 Enterprise Transmission
- Live View Quality: Remote Controller: 1080p/30fps
- Operating Frequency:400-2.4835 GHz | 5.725-5.850 GHz
- Max Transmission Distance (unobstructed, free of interference): DJI Mavic 3E: FCC: 15 km; CE: 8 km; SRRC: 8 km; MIC: 8 km | DJI Mavic 3T: FCC: 15 km; CE: 8 km; SRRC: 8 km; MIC: 8 km
- Max Transmission Distance (Obstructed): Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC) | Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC) | Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
- Max Download Speed: 15 MB/s (with DJI RC Pro Enterprise)
- Latency (depending on environmental conditions and mobile device): 200 ms
- Antenna: 4 Antennas, 2T4R
- Transmission Power (EIRP): 4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) | 5.8 GHz: <33 dBm (FCC), ＜30 dBm (SRRC), <14 dBm (CE)
DJI RC Pro Enterprise
- Video Transmission System: DJI O3 Enterprise Transmission
- Max Transmission Distance (unobstructed, free of interference): FCC: 15 km | CE/SRRC/MIC: 8 km
- Video Transmission Operating Frequency:400-2.4835 GHz | 5.725-5.850 GHz
- Antenna: 4 Antennas, 2T4R
- Video Transmission Transmitter Power (EIRP):4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) | 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC)
- Wi-Fi Protocol:11 a/b/g/n/ac/ax | Support 2×2 MIMO Wi-Fi
- Wi-Fi Operating Frequency:400-2.4835 GHz | 5.150-5.250 GHz | 5.725-5.850 GHz
- Wi-Fi Transmitter Power (EIRP):4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) | 5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC) | 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
- Bluetooth Protocol: Bluetooth 5.1
- Bluetooth Operating Frequency: 400-2.4835 GHz
- Bluetooth Transmitter Power (EIRP): < 10 dBm
- Screen Resolution: 1920×1080
- Screen Size:5 inches
- Screen: 60 fps
- Brightness: 1,000 nits
- Touchscreen Control: 10-point multi-touch
- Battery: Li-ion (5000 mAh @ 7.2 V)
- Charging Type: Recommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V
- Rated Power: 12 W
- Storage Capacity: Internal Storage (ROM): 64 GB | Supports a microSD card for expanded capacity.
- Charging Time: 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V) | Approx. 2 hours (with a USB charger at 12 V) | Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously)
- Operating Time: 3 hours
- Video Output Port: Mini-HDMI port
- Operating Temperature Range: -10° to 40° C (14° to 104° F)
- Storage Temperature: -30° to 60° C (-22° to 140° F) (within one month) | -30° to 45° C (-22° to 113° F) (one to three months) | -30° to 35° C (-22° to 95° F) (three to six months) | -30° to 25° C (-22° to 77° F) (more than six months)
- Charging Temperature: 5° to 40° C (41° to 104° F)
- Supported DJI Aircraft: DJI Mavic 3E | DJI Mavic 3T
- GNSS: GPS+Galileo+GLONASS
- Dimensions: Antennas folded and controller sticks unmounted: 183.27×137.41×47.6 mm (L×W×H) | Antennas unfolded and controller sticks mounted: 183.27×203.35×59.84 mm (L×W×H)
- Weight: 680 g
- Model: RM510B
Storage
- Supported Memory Cards: Aircraft: U3/Class10/V30 or above is required. A list of recommended microSD cards can be found below.
- Recommended microSD Cards: Remote Controller: SanDisk Extreme PRO 64GB V30 A2 microSDXC; SanDisk High Endurance 64GB V30 microSDXC; SanDisk Extreme 128GB V30 A2 microSDXC; SanDisk Extreme 256GB V30 A2 microSDXC; SanDisk Extreme 512GB V30 A2 microSDXC; Lexar 667x 64GB V30 A2 microSDXC; Lexar High-Endurance 64GB V30 microSDXC; Lexar High-Endurance 128GB V30 microSDXC; Lexar 667x 256GB V30 A2 microSDXC; Lexar 512GB V30 A2 microSDXC; Samsung EVO Plus 64GB V30 microSDXC; Samsung EVO Plus 128GB V30 microSDXC; Samsung EVO Plus 256GB V30 microSDXC; Samsung EVO Plus 512GB V30 microSDXC; Kingston Canvas Go! Plus 128GB V30 A2 microSDXC; Kingston Canvas React Plus 128GB V90 A1 microSDXC | Aircraft: SanDisk Extreme 32GB V30 A1 microSDHC; SanDisk Extreme PRO 32GB V30 A1 microSDHC; SanDisk Extreme 512GB V30 A2 microSDXC; Lexar 1066x 64GB V30 A2 microSDXC; Kingston Canvas Go! Plus 64GB V30 A2 microSDXC; Kingston Canvas React Plus 64GB V90 A1 microSDXC; Kingston Canvas Go! Plus 128GB V30 A2 microSDXC; Kingston Canvas React Plus 128GB V90 A1 microSDXC; Kingston Canvas React Plus 256GB V90 A2 microSDXC; Samsung PRO Plus 256GB V30 A2 microSDXC
Battery
- Capacity: 5000 mAh
- Standard Voltage:4 V
- Max Charging Voltage:6 V
- Type: LiPo 4S
- Chemical System: LiCoO2
- Energy: 77 Wh
- Weight:5 g
- Charging Temperature: 5° to 40° C (41° to 104° F)
Charger
- Input: 100-240 V (AC Power), 50-60 Hz, 2.5 A
- Output Power: 100 W
- Output: 100 W (total) | When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.
Charging Hub
- Input: USB-C: 5-20 V, 5.0 A
- Output: Battery Port: 12-17.6 V, 8.0 A
- Rated Power: 100 W
- Charging Type: Three batteries charged in sequence
- Charging Temperature Range: 5° to 40° C (41° to 104° F)
RTK Module
- Dimensions:2×40.2×66.2 mm (L×W×H)
- Weight: 24±2 g
- Interface: USB-C
- Power: 1.2 W
- RTK Positioning Accuracy: RTK Fix: Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm
Speaker
- Dimensions:1×82.0×54.7 mm (L×W×H)
- Weight: 85±2 g
- Interface: USB-C
- Rated Power: 3 W
- Max Volume: 110 dB @ 1 m
- Effective Broadcast Distance: 100 m @ 70 dB
- Bit Rate: 16 Kbps/32 Kbps
- Operating Temperature Range: -10° to 40° C (14° to 104° F)

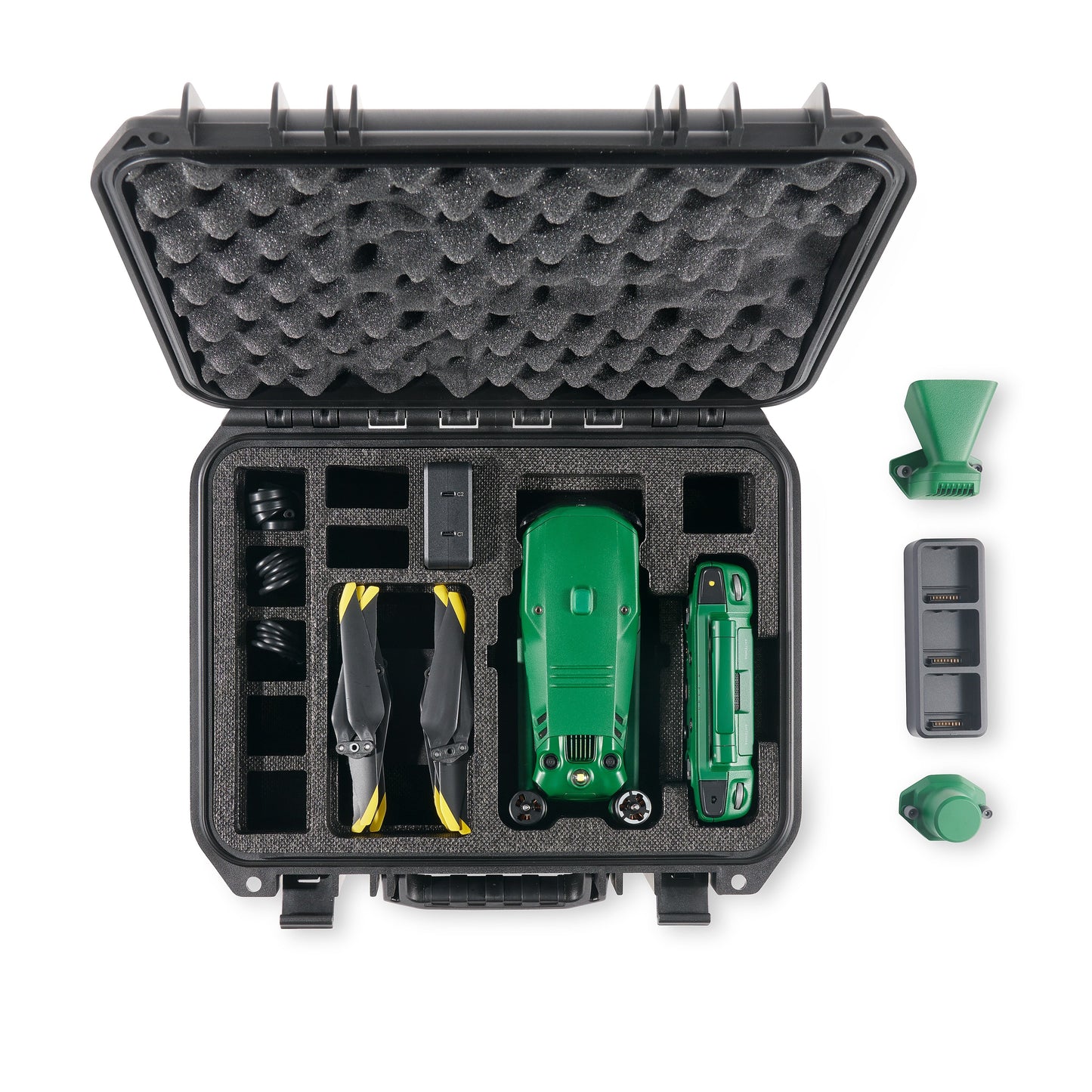

In the Box
- 1x Anzu Raptor T aircraft
- 1x Controller w/ built-in screen
- 1x Battery
- 1x Charging Station
- 1 Set Propellers
- 1x Hard Case
- Manuals
