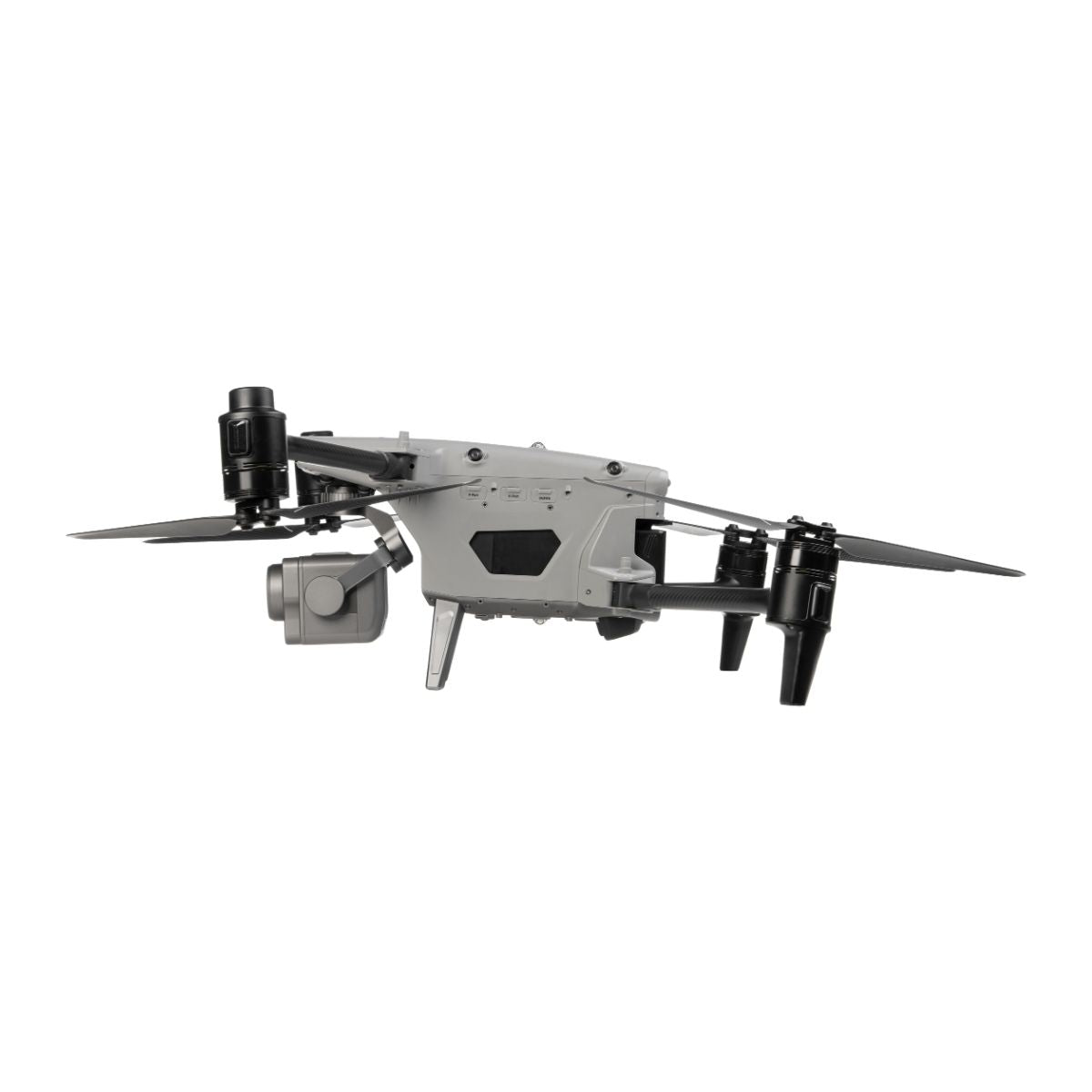

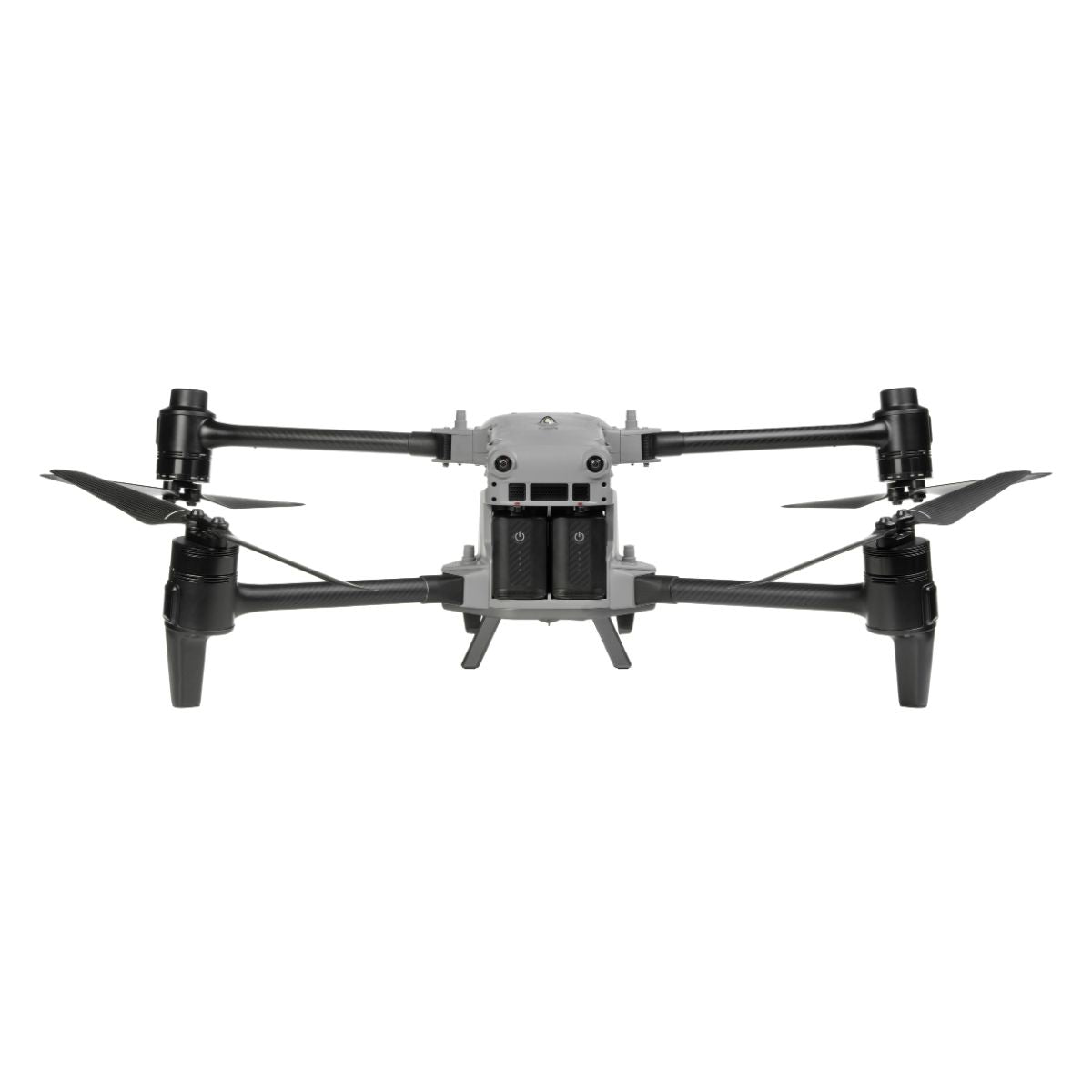

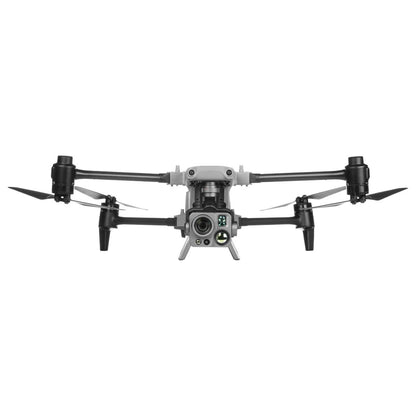

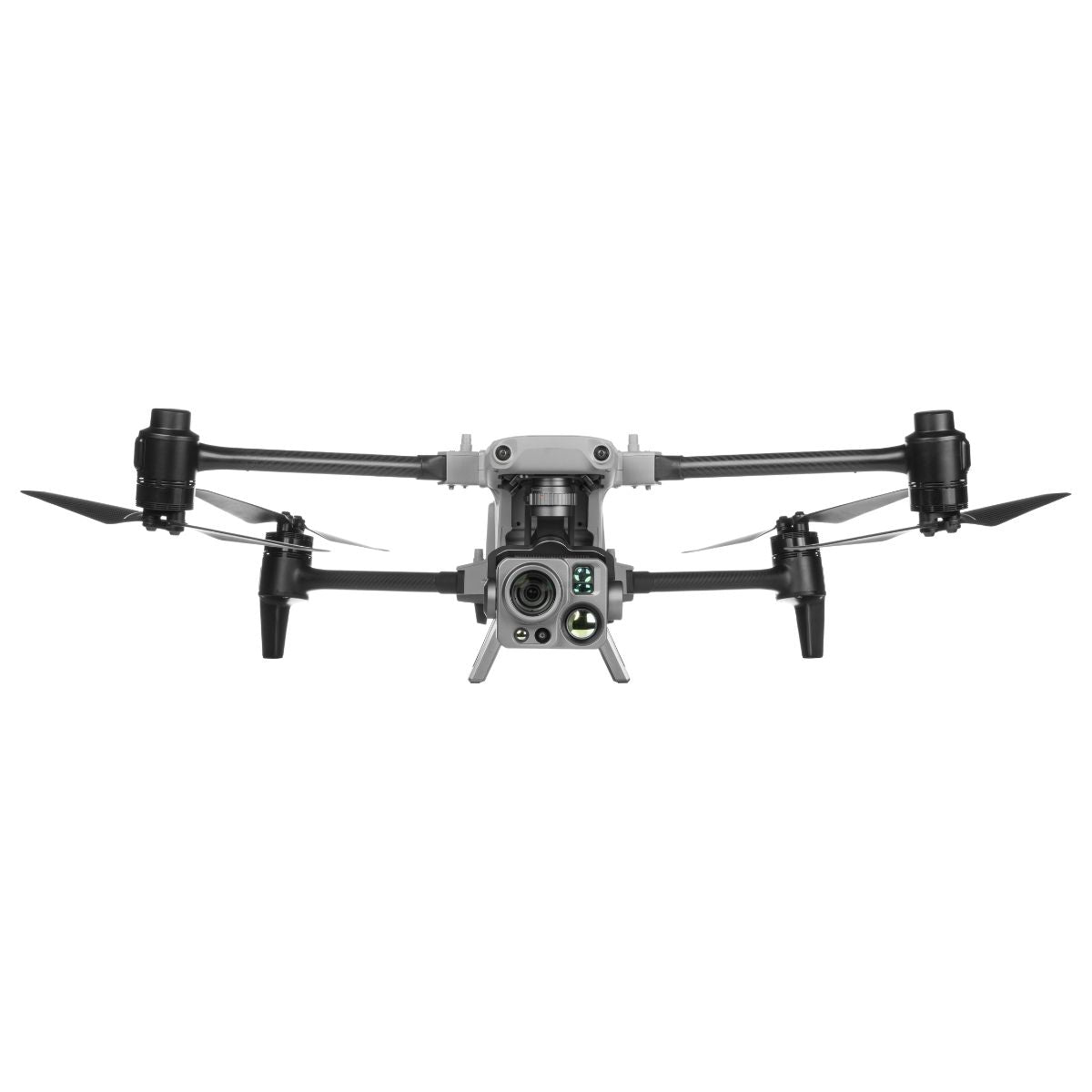

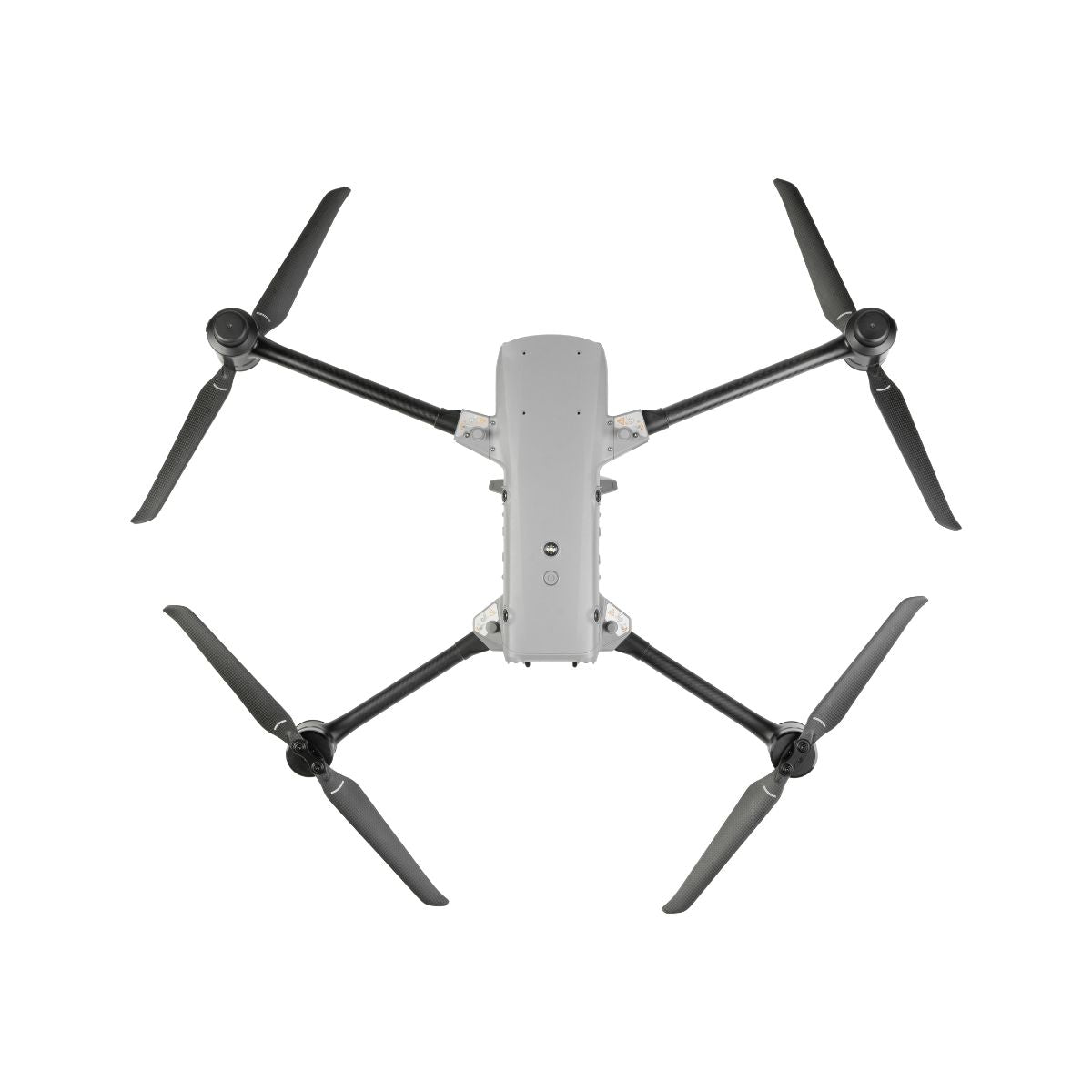

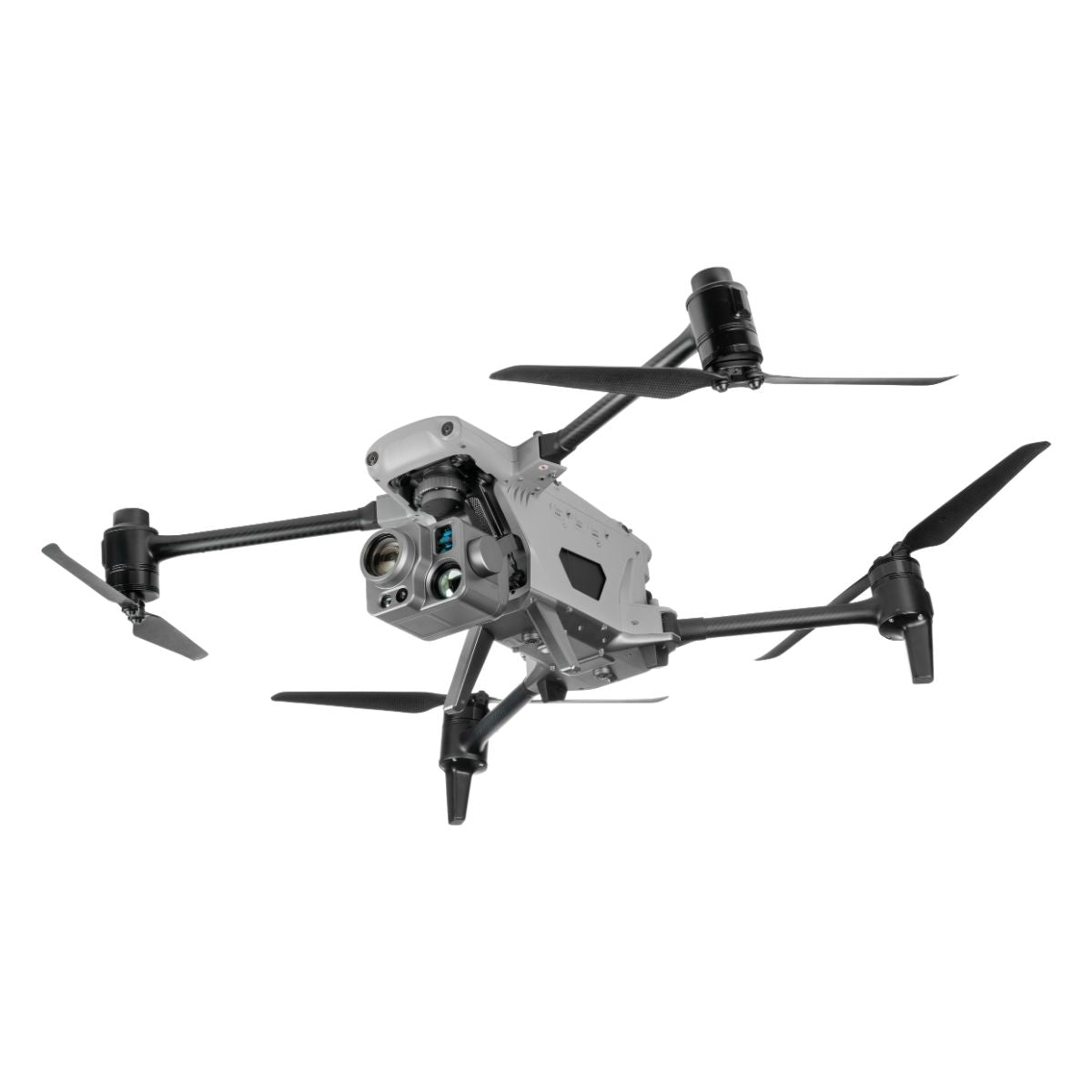

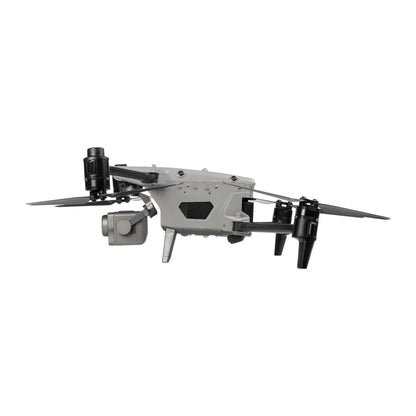

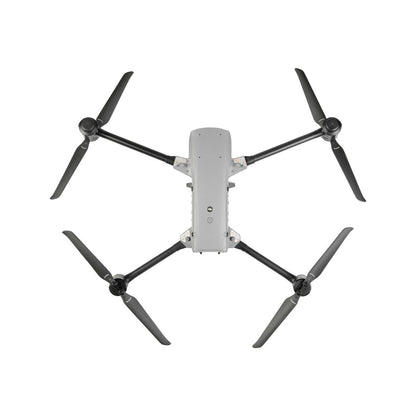

Autel Alpha with L35T Gimbal Camera

Smart Flight and Powerful Vision with Autel Alpha + L35T

The Autel Alpha, a commercial-grade UAV developed by Autel Robotics, has attracted considerable attention at industry events such as the June 2023 Energy Drone and Robotics Summit. It exemplifies the innovation required to meet the demanding standards of modern professional applications.

With its recent FCC certification, the drone is well-positioned to establish a significant presence in the U.S. market by delivering advanced functionality and dependable performance.

Transmission Range and Flight Endurance

Featuring a reliable 20-kilometer transmission range, the Autel Alpha ensures stable communication even in challenging environments.

Its robust design allows for a maximum flight time of 40 minutes and a hover time of 38 minutes, showcasing efficient energy management.

An IP55 weather resistance rating enhances its durability, supporting operation in a variety of environmental conditions. The aircraft weighs 6100g, including the battery and gimbal.

Advanced L35T Camera Payload

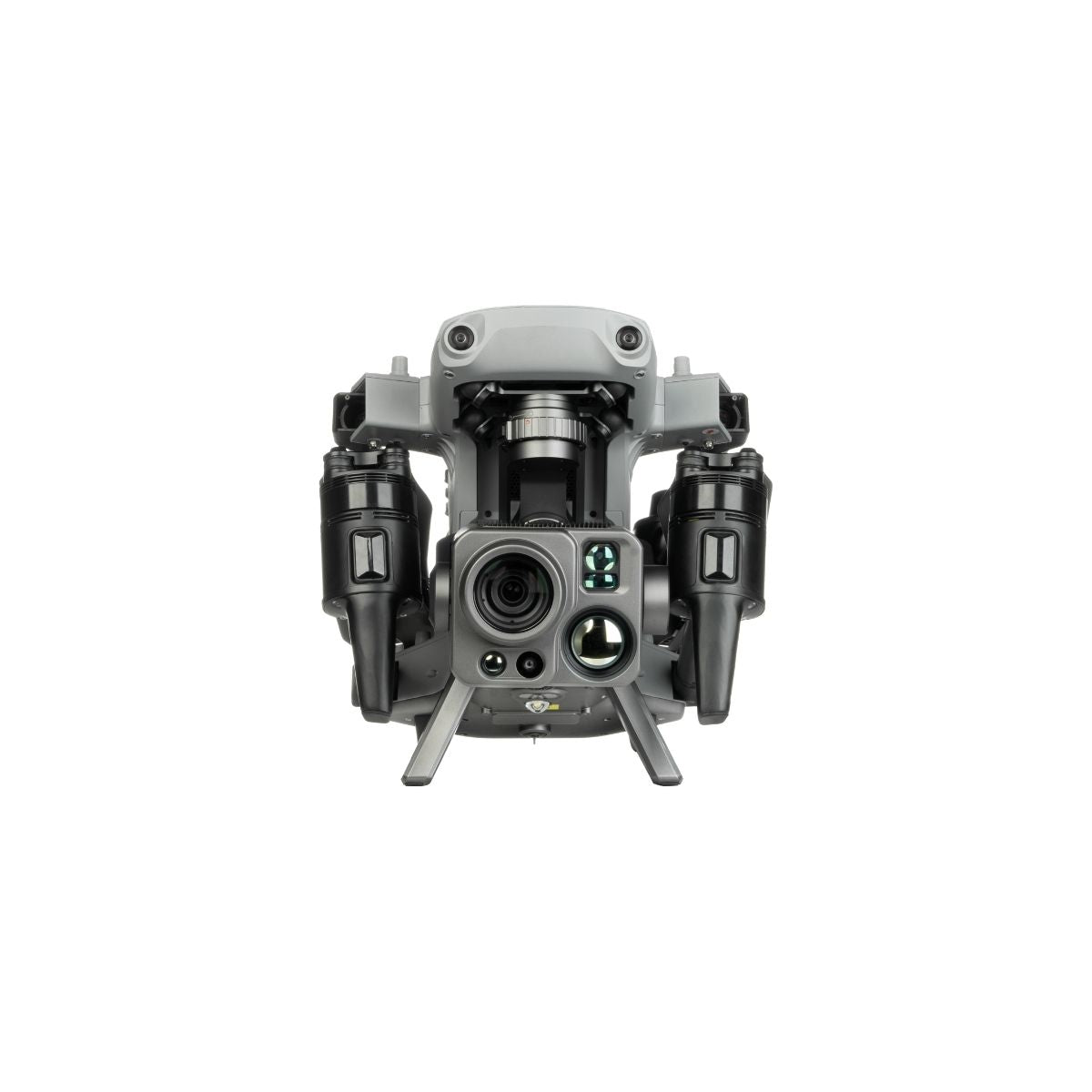

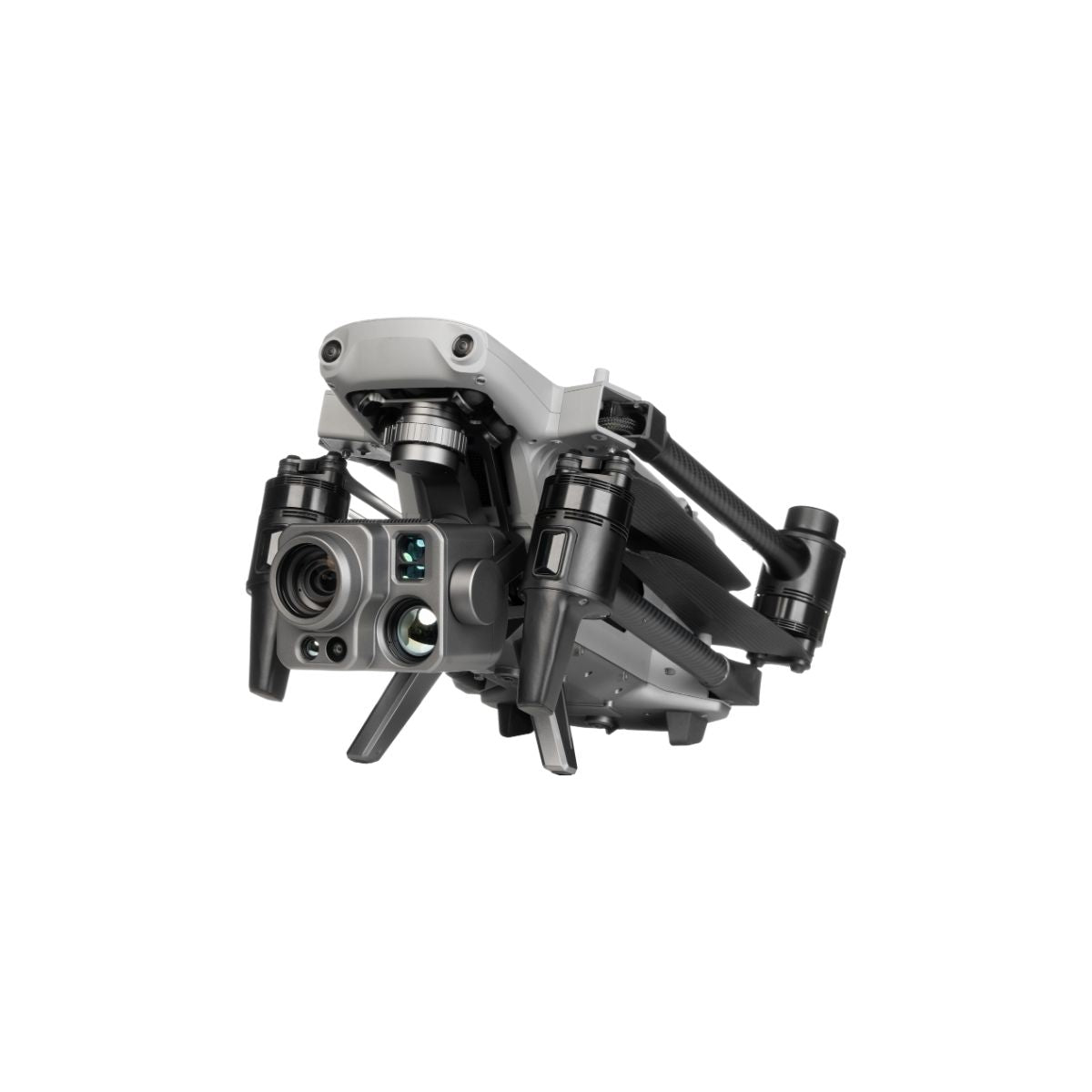

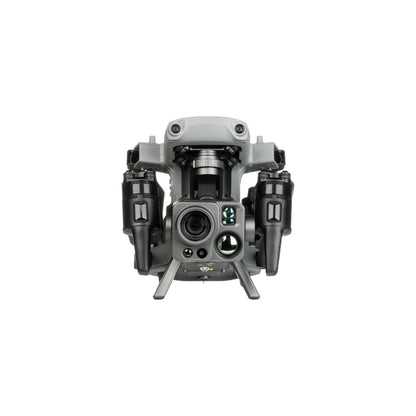

The Autel L35T Gimbal Camera integrates multiple high-performance sensors, designed specifically for next-generation UAV platforms such as the Autel Alpha and Autel Titan.

Equipped with LiDAR capabilities, a powerful 35x optical zoom, and advanced thermal imaging, the L35T represents a comprehensive aerial imaging solution.

Wide-Angle Camera

• Sensor and Lens

The wide-angle camera utilizes a 1/2" CMOS sensor with 48 megapixels, enabling the capture of detailed, high-resolution landscapes.

It includes a 24mm equivalent focal length and an f/2.8 aperture, supporting wide field imaging with precision and clarity.

• ISO Range and Media Formats

Designed for adaptability in diverse lighting conditions, this camera supports ISO levels up to 6400 for still images and 64000 for video, with an expanded range of ISO 256000 in Night Scene mode.

Media is recorded in JPG and DNG for photos, and MP4/MOV for video, with a maximum video resolution of 3840×2160 at 30 fps.

Zoom Camera

• Sensor and Zoom Capabilities

The zoom camera features a 1/1.8" CMOS sensor and supports an optical zoom from 1x to 35x, with digital zoom extending up to 560x—ideal for capturing distant targets with exceptional clarity.

• ISO Range and Aperture Control

It offers a dynamic ISO range, including an enhanced Night Scene capability reaching ISO 320000. The variable aperture ensures optimal exposure and image quality in varying lighting conditions.

Thermal Imaging Cameras

• Thermal Sensors and Optics

Two thermal imaging modules—Wide and Tele—are integrated into the L35T payload. Each employs Uncooled VOx Microbolometers to capture precise thermal data.

They feature differing fields of view (42° for Wide, 12.3° for Tele) and focal lengths (13mm and 45mm, respectively), addressing varied operational requirements.

• Resolution and Temperature Range

Both thermal cameras deliver a resolution of 640×512 at 25 fps and can detect temperatures ranging from -20℃ to +550℃. This makes them highly suitable for industrial assessments, environmental monitoring, and emergency response applications.

Comprehensive Safety Systems

Engineered with advanced navigational precision, the Autel Alpha incorporates GNSS technologies including GPS, GLONASS, BeiDou, and Galileo.

It is fortified with electronic countermeasures such as resistance to RFI/EMI and GPS spoofing, ensuring consistent performance in high-interference environments.

360-degree obstacle detection further enhances flight safety, while support for multi-band operation (2.4/5.2/5.8 GHz) allows for flexible communication strategies.

Operational Versatility and Performance

Autonomy in flight empowers complex operations with reduced manual intervention. The drone's modular payload compatibility increases its utility across various mission profiles.

Security is reinforced through AES-256 encryption, protecting data transmission from unauthorized access and cyber threats.

With a top horizontal velocity of 24m/s and wind resistance up to 15m/s, the Autel Alpha remains stable and effective under diverse field conditions.

Its operational temperature range of -20℃ to +50℃ further affirms its reliability in extreme environments.

Enterprise Use Cases

Combining advanced imaging, flight reliability, and durable construction, the Autel Alpha emerges as a transformative asset for enterprise applications across sectors.

Agriculture

The drone facilitates smart agriculture by utilizing high-resolution and thermal sensors to monitor crop vitality, pest activity, and soil hydration with precision.

Its capabilities enable informed decision-making, enhancing productivity and resource efficiency. Livestock monitoring also benefits from the drone's expansive coverage and real-time visuals.

Construction

By integrating with mapping platforms, the Alpha generates accurate 2D and 3D models, improving construction planning and site management.

Its imaging systems support thorough structural inspections while reducing operational risks, enhancing safety and compliance on construction sites.

Public Safety and Search and Rescue

In security and emergency scenarios, the UAV’s extended imaging capabilities and autonomous features enable comprehensive surveillance and expedited location of individuals in distress.

These capabilities contribute significantly to improving the speed, safety, and effectiveness of public safety operations.

Specifications

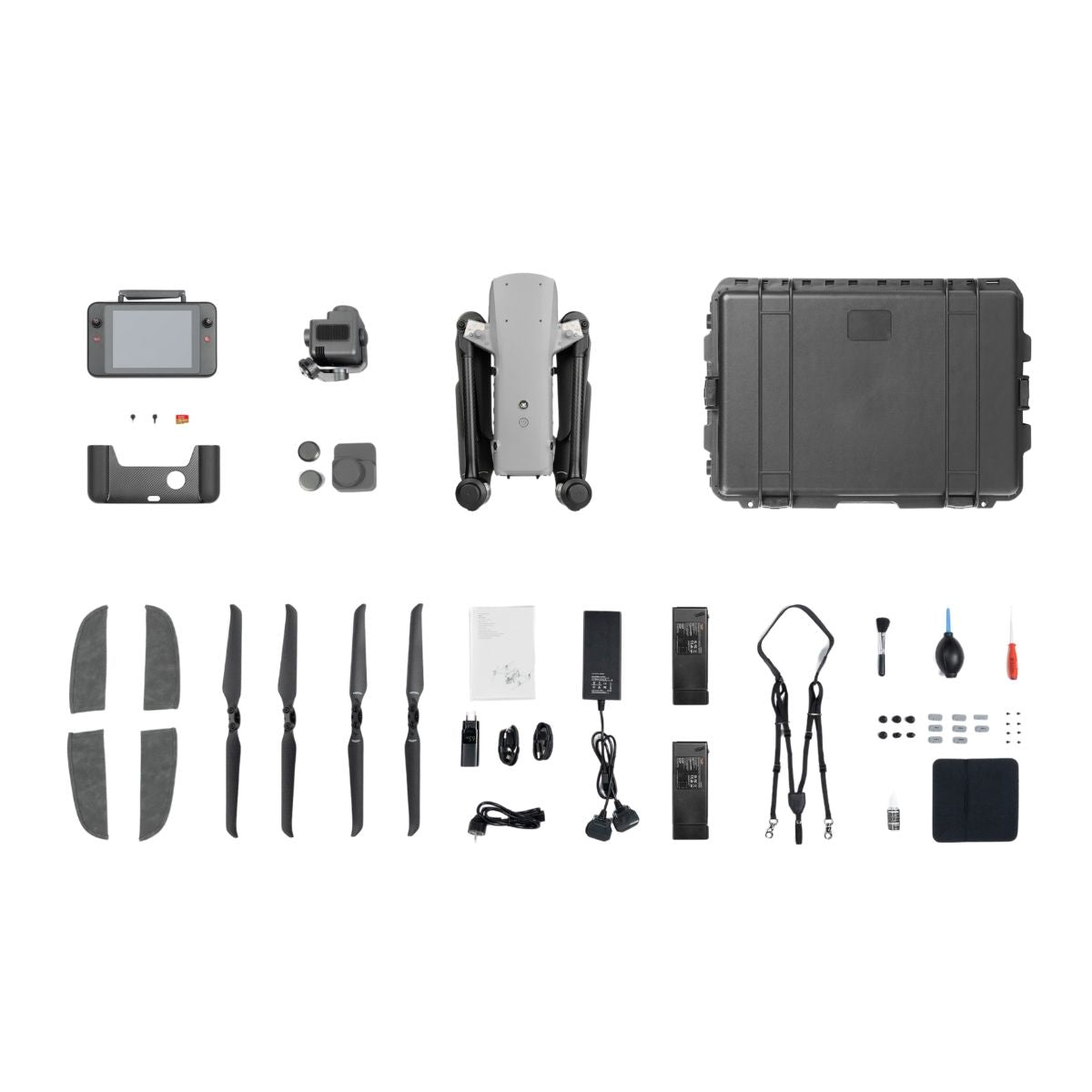

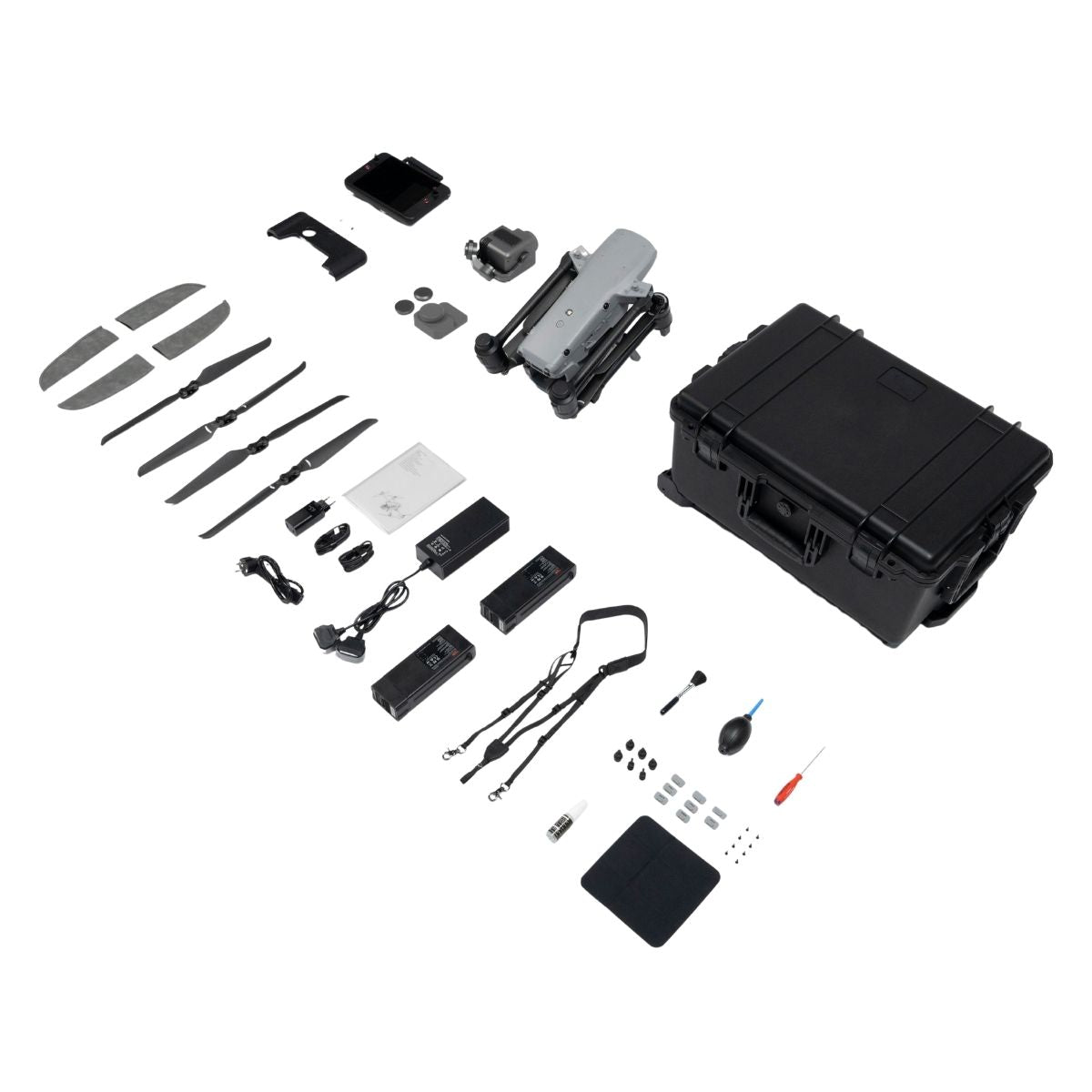

In the Box

• 1x Autel Alpha Aircraft
• 1x Autel DG-L35T Gimbal Camera
• 1x Manuals
• 1x Cleaning Kit
• 1x Spare Propellers
• 1x Smart Controller V3
• 1x Battery Charger
• 2x Battery
• 1x Cables and Adapter
• 1x Lanyard
• 1x Screwdriver
