Autel EVO II Dual 640T Enterprise V3 – Power, Precision, and Performance
The Autel EVO II Dual 640T Enterprise V3 takes thermal drone technology to the next level, delivering advanced capabilities while building on the success of its predecessor. With its third-generation upgrades, this UAV is designed to enhance aerial imaging, surveying, and mission-critical operations with unmatched efficiency and reliability.
Bundled with exclusive enterprise accessories, the EVO II Enterprise V3 provides exceptional value, offering everything you need to excel in the field.

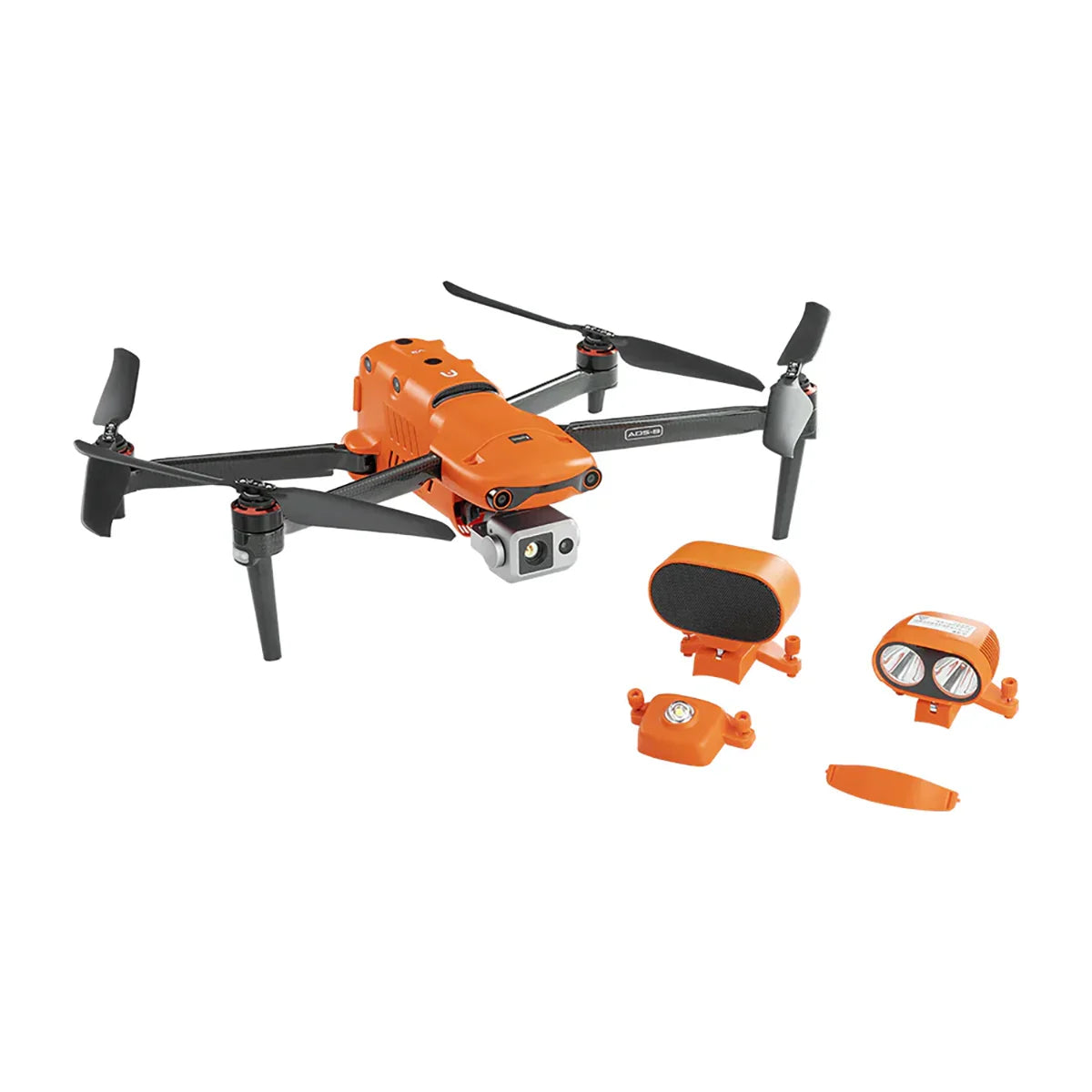

Maximize Efficiency with Enterprise-Grade Accessories
The Autel EVO II Dual 640T Enterprise V3 bundle is packed with tools to optimize your drone operations, helping you save both time and resources.
Included Accessories:
-
Two Spare Batteries: Extend flight time for uninterrupted missions.
-
Multi-Charger: Recharge multiple batteries simultaneously.
-
Autel Smart Controller V3: Experience superior control and visuals.
-
Loudspeaker, Spotlight, and Strobe: Easily mountable tools for enhanced versatility.
With the option to add an RTK module for centimeter-level positioning, this bundle is engineered for maximum performance and precision.
The Dual-Camera Advantage

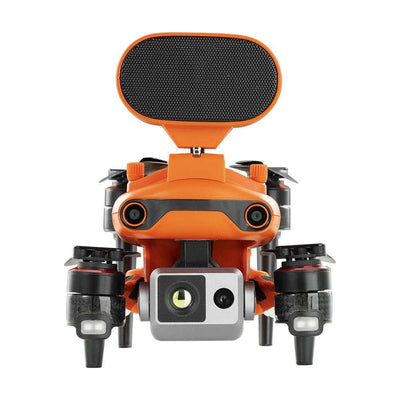

Equipped with both thermal and visual cameras, the EVO II Dual 640T Enterprise V3 empowers professionals to tackle diverse missions with a single platform.
640T Thermal Camera
-
High Resolution: 640x512 HD thermal imaging with a 30Hz refresh rate.
-
Enhanced Clarity: 16x digital zoom and advanced image processing for detailed thermal analysis.
-
Versatile Applications: Ideal for identifying hotspots, locating individuals, or performing industrial inspections.
50-MP Ultra-Sensitive Visual Camera
-
RYYB Sensor with Moonlight Algorithm 2.0: Captures detailed imagery, even in low-light conditions.
-
Forensic-Grade Analysis: Delivers exceptional detail for critical decisions.
-
Quick and Precise Tracking: PDAF and CDAF technologies ensure targets stay in focus.
The combination of thermal and visual imaging allows operators to collect actionable insights for better decision-making across various industries.
Unmatched Performance with Safety at the Core
The EVO II Dual 640T Enterprise V3 offers:
-
Extended Range: Fly up to 15 kilometers with SkyLink 2.0 Video Transmission.
-
Long Flight Time: Up to 42 minutes per charge for prolonged missions.
-
Advanced Sensors: Features 19 sensors, including 12 visual sensors and IMUs, for obstacle avoidance and real-time 3D path planning.
-
Anti-Interference Technology: Tri-band communication and frequency hopping ensure stable performance.
These features combine to create a safe, efficient flying experience that professionals can rely on.
Smart Control, Simplified
The Autel Smart Controller V3 enhances the drone’s usability with its robust features:
-
Ultra-Bright 7.9-Inch Display: 2000-nit brightness for clear visibility in direct sunlight.
-
Long Battery Life: Operates for up to 4.5 hours with a 5800-mAh battery, rechargeable in just two hours.
-
Ample Storage: 128 GB of internal storage eliminates the need for external devices.
-
Responsive Interface: Powered by a Qualcomm 8-core processor, capable of playing 4K/60fps video smoothly.
Whether you’re conducting long field operations or critical missions, the Smart Controller is designed to support your every need.
Versatile Applications for Industry Professionals
Public Safety:
-
Locate missing persons during search and rescue missions with thermal imaging.
-
Identify hotspots and monitor fire spread in real-time for firefighting.
-
Enhance law enforcement operations with discreet surveillance.
Industrial Inspections:
-
Assess powerlines, pipelines, and infrastructure for potential faults.
-
Conduct building inspections with detailed visual and thermal imaging.
Surveying and Mapping:
-
Capture precise data for urban planning and resource management.
-
Perform large-scale surveys with RTK-enabled positioning for accurate results.
Agriculture:
-
Monitor crop health, detect irrigation issues, and identify pest infestations efficiently.
Why Choose the EVO II Dual 640T Enterprise V3?
For organizations requiring a dependable, feature-rich drone, the Autel EVO II Dual 640T Enterprise V3 from DSLRPros offers unparalleled capabilities. From extended flight time and advanced imaging to smart control and versatile accessories, this UAV is the ultimate tool for inspection, surveying, and public safety missions.
Ready to elevate your operations? Discover the difference with the Autel EVO II Dual 640T Enterprise V3. Contact us today to learn more or customize your drone package for your specific needs.
Specifications
Aircraft
-
Takeoff Weight (Without Accessories):
- EVO II Pro Enterprise: 2.45 lbs (1110 g)
- EVO II Dual 640T Enterprise: 2.51 lbs (1136.5 g)
- Diagonal Length: 16.8 inches (427 mm)
-
Size (L×W×H):

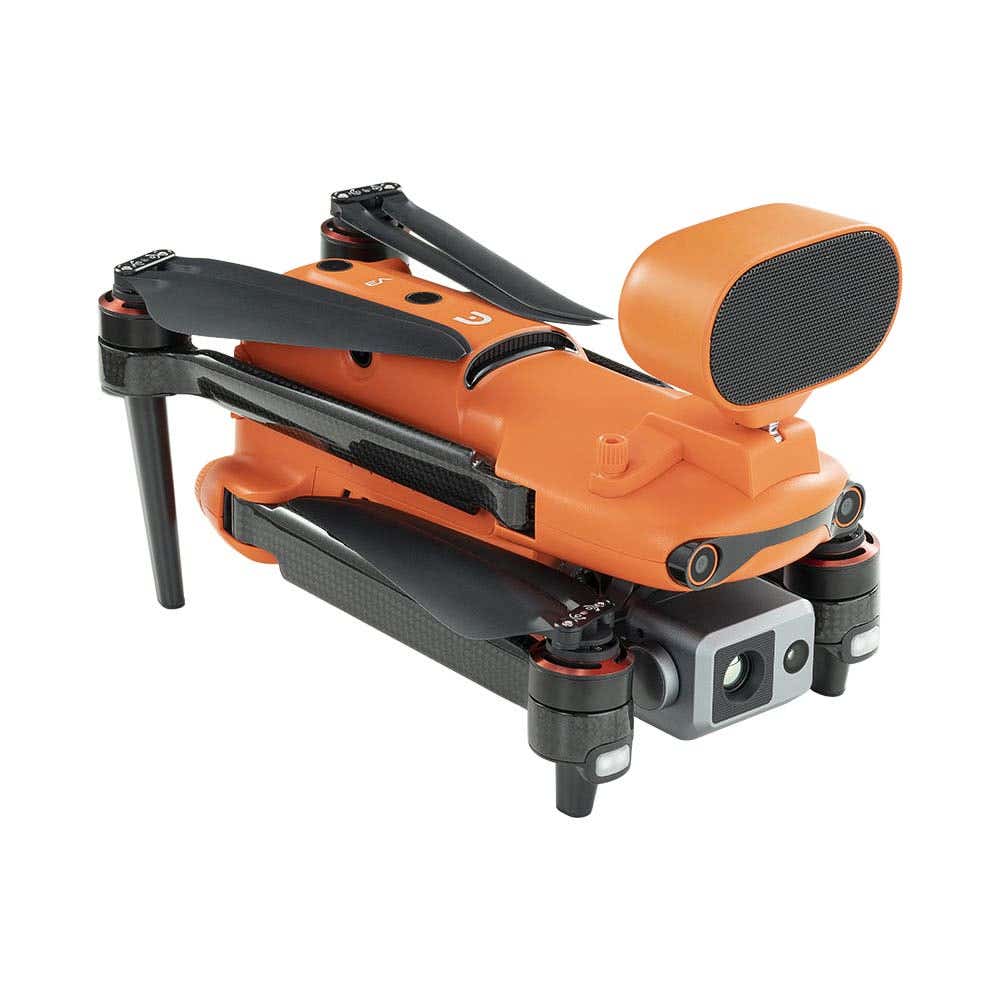

- Folded: 245 × 130 × 111 mm
- Unfolded: 506 × 620 × 111 mm
- Max Service Ceiling Altitude: 4.3 miles (7000 m) MSL
- Max Ascent Speed: 18 mph (8 m/s) (Ludicrous)
- Max Descent Speed: 9 mph (4 m/s) (Ludicrous)
- Max Level Flight Speed: 45 mph (20 m/s) (Ludicrous)
- Max Angular Velocity: 120°/s
- Max Tilt Angle: 33° (Ludicrous)
- Max Flight Time (no wind): 42 min (without accessories)
-
Max Hovering Time (no wind):
- With strobe: 38 min
- With spotlight: 29 min
- With loudspeaker: 34 min
- With RTK module: 36 min
- Operating Temperature Range: 14℉ to 104℉ (-10℃ to 40℃)
- Max Wind Speed Resistance: 39 - 46 mph (17-20 m/s)
-
Operating Frequency:
- 2.400 GHz - 2.4835 GHz
- 5.725 GHz - 5.850 GHz
-
Hovering Accuracy:
- When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m
- When Visual Positioning is working normally: Vertical: ±0.1 m; Horizontal: ±0.3 m
- When GPS is working normally: Vertical: ±0.5 m; Horizontal: ±1.5 m
- Internal Storage: 8 GB
- SD Storage: Max. support 256 GB (UHS-3 or Class 10)
Gimbal
- Gimbal: 3-axis stabilization
- Mechanical Range: Tilt: -135° to +45°; Pan: -100° to +100°
- Controllable Rotation Range: Tilt: -90° to +30°; Pan: -90° to +90°
- Max Control Speed (Tilt): 300°/s
- Angular Vibration Range: ±0.005°
Remote Controller and Image Transmission
-
Operating Frequency:
- 902-928 MHz (FCC Only)
- 2.400-2.4835 GHz
- 5.725-5.850 GHz (non-Japan)
- 5.650-5.755 GHz (Japan Only)
-
Transmission Power:
- FCC: ≤33 dBm
- CE: ≤20 dBm @ 2.4G, ≤14 dBm @ 5.8G
- SRRC: ≤20 dBm @ 2.4G, ≤33 dBm @ 5.8G/5.7G
-
Max Transmission Distance (unobstructed, free of interference):
- FCC: 15 km
- CE: 8 km
- Display Screen: 2048 × 1536 @ 60 fps
- Battery: 5800 mAh
-
Operating Time:
- ~3 hours (Max. Brightness)
- ~4.5 hours (50% Brightness)
- Charging Time: 90 minutes
- Internal Storage: ROM 128 GB
Sensing System
- Sensing System Type: Omnidirectional sensing system
-
Forward:
- Accurate Measurement Range: 0.5-18 m
- Effective Sensing Speed: <12 m/s
- Viewing Angle: Horizontal: 60°, Vertical: 80°
-
Backward:
- Accurate Measurement Range: 0.5-16 m
- Effective Sensing Speed: <12 m/s
- Viewing Angle: Horizontal: 60°, Vertical: 80°
-
Upward:
- Accurate Measurement Range: 0.5-10 m
- Effective Sensing Speed: <5 m/s
- Viewing Angle: Horizontal: 65°, Vertical: 50°
-
Downward:
- Accurate Measurement Range: 0.5-10 m
- Effective Sensing Speed: <5 m/s
- Viewing Angle: Horizontal: 100°, Vertical: 80°
-
Left and Right:
- Accurate Measurement Range: 0.5-10 m
- Effective Sensing Speed: <5 m/s
- Viewing Angle: Horizontal: 65°, Vertical: 50°
-
Operating Environment:
- Forward, Backward, and Sides: Surface with clear pattern and adequate lighting (lux > 15)
- Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
- Downward: Surface with clear pattern and adequate lighting (lux > 15); Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

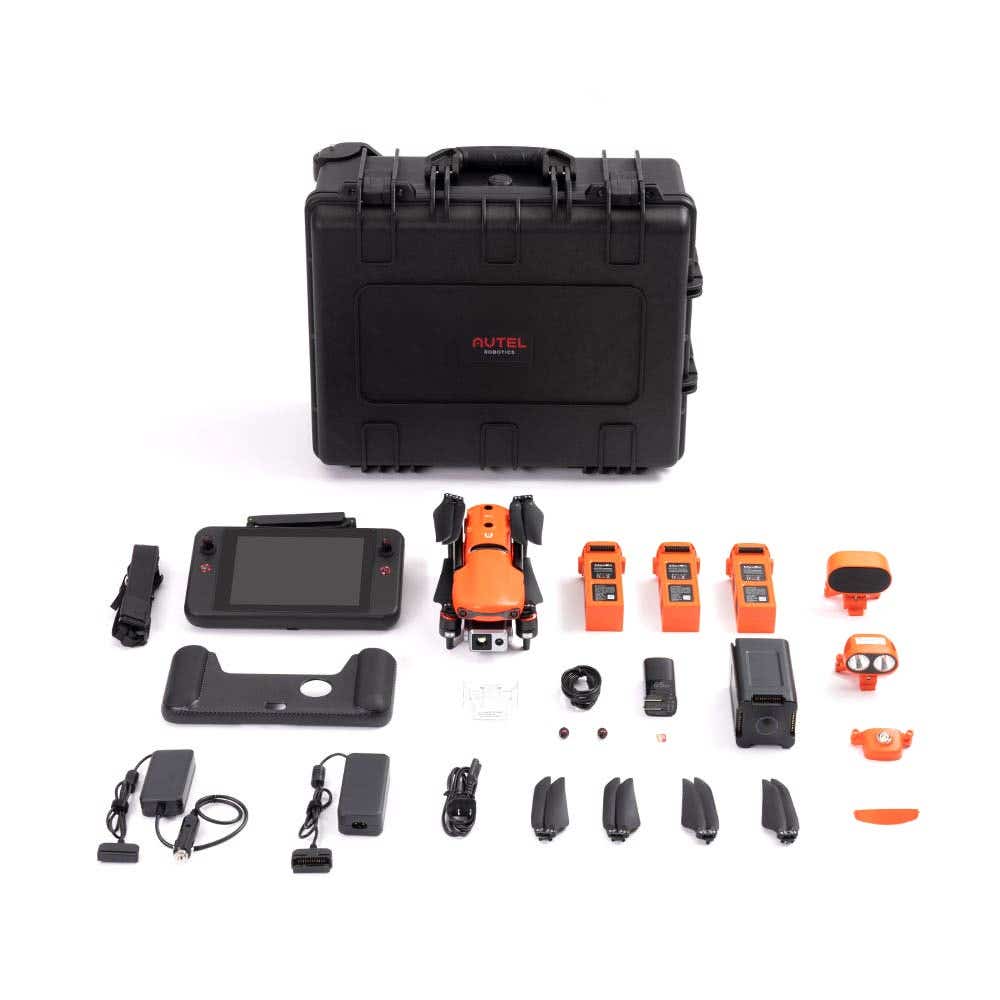

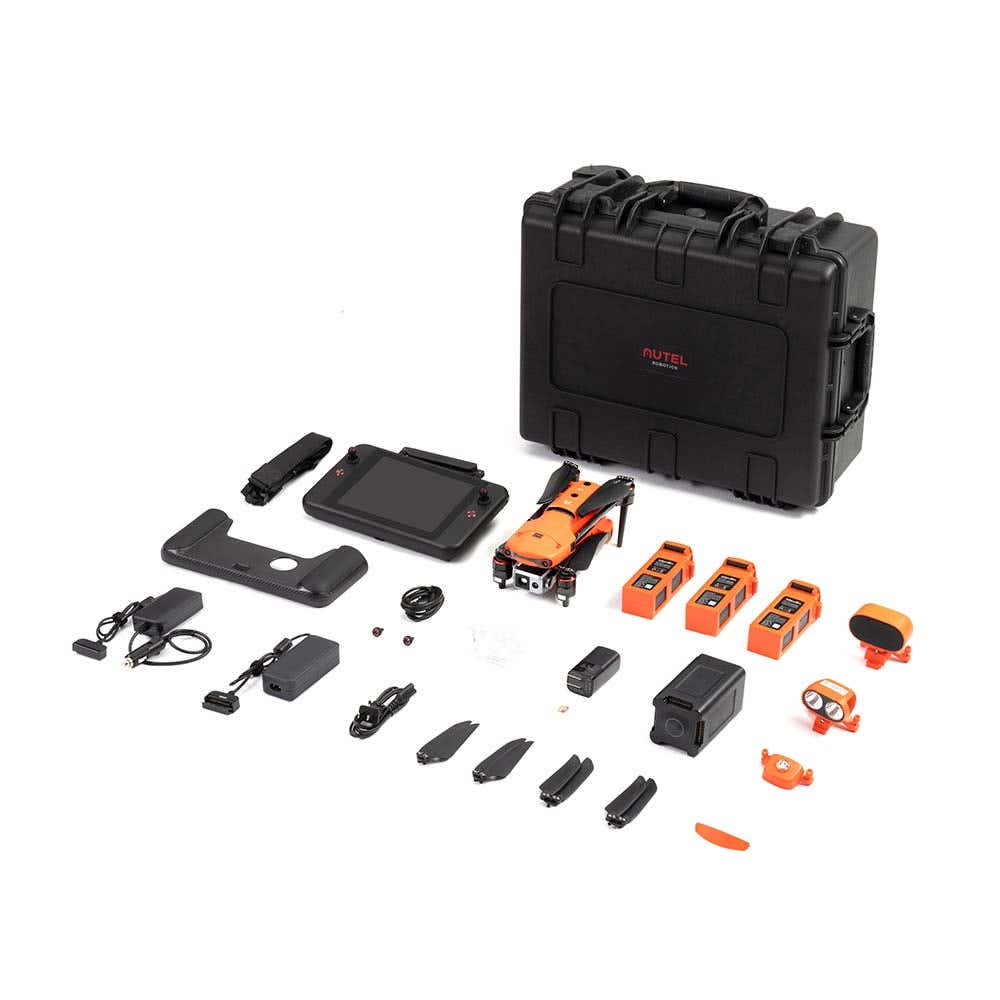

In the Box
- 1x Aircraft (including battery, propellers, gimbal cover, and 32G SD Card)
- 1x Autel Smart Controller V3 (sticks included)
- 2x Spare batteries
- 2x Spare propellers (pair)
- 1x Battery charger + power cable
- 1x Car charger
- 1x Multi-charger
- 1x RC charger
- 1x RC charging cable
- 1x RC lanyard
- 1x RC protective case
- 1x Spare control stick (pair)
- 1x Loudspeaker
- 1x Spotlight
- 1x Strobe
- 1x Extended port cover
- 1x Protector case
- 1x Manual (Packing List, Quick Guide, Disclaimer & Safety Instructions, Battery Safety Instructions, Car Charger Quick Guide, and Multi-Charger Quick Guide)
