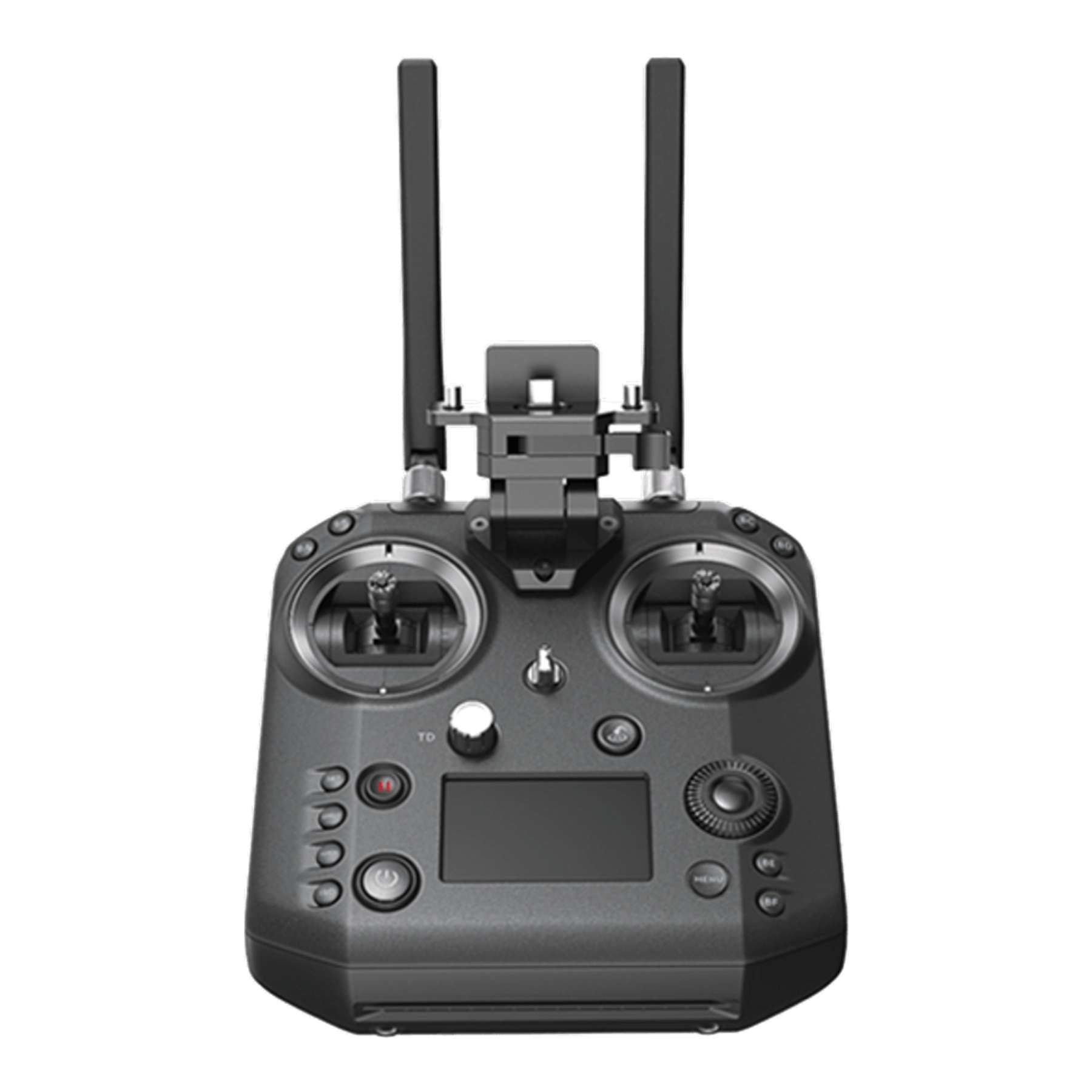

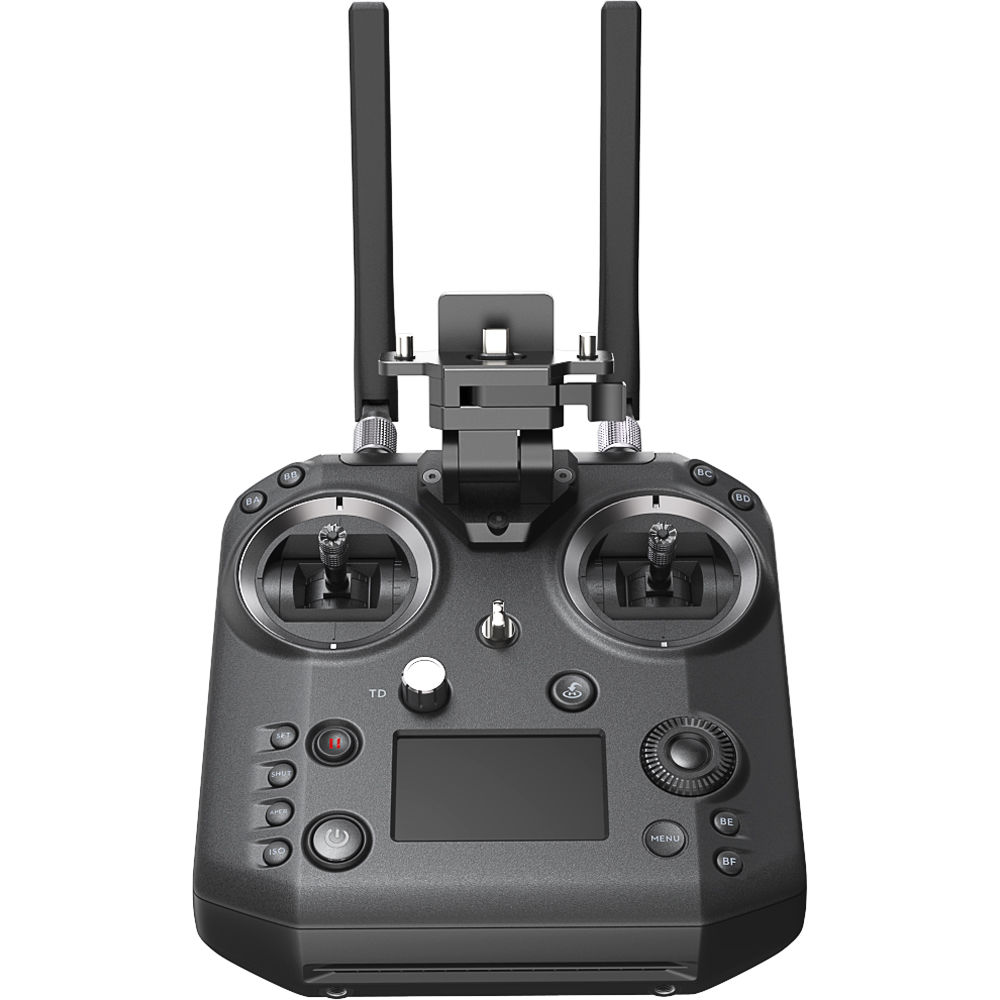

The Cendence remote controller is a high-end, customizable device designed for seamless integration with advanced DJI products such as the Inspire 2 and CrystalSky monitor. It features modular components, offering up to five analog control channels and more than ten programmable buttons for enhanced control efficiency.
Its design allows for antenna interchangeability, boosting the power of DJI Lightbridge technology to improve anti-interference and image quality. Additionally, it includes a Cendence Monitor Mounting Bracket and various ports for expanded functionality.
Note: This is an open-box item.
Specifications
- Type: GL800A
- Operating Frequency: 2.400-2.483 GHz; 5.725-5.825 GHz
- Max Transmitting Distance (unobstructed, free of interference): 2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC) | 5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC)
- EIRP: 2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC) | 5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC)
- Power Supply: Intelligent Battery (Type: WB37-4920mAh-7.6V)
- Intelligent Battery: 4923 mAh LiPo
- Charging: DJI charger
- Output Power: 20 W (supplying power to DJI CS550 monitor) | 12 W (without supplying power to monitor)
- Video Output Ports: USB, HDMI, SDI
- USB Supply Power: iOS: 1 A, 5.2 V (Max); Android: 1.5 A, 5.2 V (Max)
- Dual User Capability: Primary and secondary connection
- Operating Temperature: -4° to 104°F (-20° to 40°C)
- Storage Temperature: Less than 3 months: -4°to 113°F (-20° to 45°C) | More than 3 months: 72° to 82° F (22° to 28° C)
- Charging Temperature: 32° to 104° F (0° to 40° C)
- Charging Time: About 2 hours and 24 minutes (using a 180 W charger)
- Supply Power Time: About 4 hours (only primary remote controller function enabled and without supplying power to monitor)
- Weight: 1041 g
- Notes: The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
