Transform Remote Drone Operations with the DJI Dock 3
Designed for continuous remote missions, DJI Dock 3 pairs seamlessly with Matrice 4D or Matrice 4TD high-performance drones to bring automated deployments to new heights. Featuring vehicle-mounted support for rapid multi-location tasks, Dock 3 ensures continuous drone readiness with quick charging and robust IP-rated protection. Now you can leverage DJI FlightHub 2's intelligent detection capabilities to streamline operations, reduce labor costs, and maximize efficiency like never before.
Key Advantages
- Outstanding Weather Resistance: IP56-rated dock with an IP55-rated drone, operating in -30°C to 50°C, ready for harsh environments.
- Vehicle-Mounted Deployment: Hardware optimized for in-transit drone charging and data transfer, perfect for emergency or long-distance tasks.
- Unmatched Efficiency: 10 minutes longer flight endurance than Dock 2 and a 27-minute charge time from 15% to 95%.
- Top-Performing Compact Drone: The Matrice 4D series inherits Matrice 4's intelligent features, plus an IP rating and onboard relay for greater transmission range.
- Advanced Obstacle Sensing: Optional module detects 12mm wires at up to 15m/s, avoiding collisions even in pitch-dark environments.Official repair compensation may apply if collision damage occurs due to obstacle avoidance failure.
- Intelligent Operations: Automatic detection routes via DJI FlightHub 2 and the ability to create alerts for temperature anomalies, vehicles, vessels, and more.
- Future-Ready FlightHub 2: Will support on-premises deployment in H2 2025 and introduce an EU-based AWS server for European clients, enabling new third-party integrations.
Applications
- Emergency Response & Security: Enable rapid multi-site deployment with vehicle-mounted docking for continuous vigilance.
- Critical Infrastructure Inspections: Efficiently assess powerlines, pipelines, or telecommunications networks in remote locations.
- Environmental & Wildlife Monitoring: Collect consistent aerial data with minimal manpower, even across challenging terrains.
- Research & Surveying: Gather real-time information on expansive project sites while automating flight, detection, and notifications.
Why Buy from DSLRPros
- Industry-Focused Solutions: We tailor drone kits to meet public safety, industrial, and commercial needs.
- Expert Guidance: Our knowledgeable team ensures you get the most out of advanced DJI tools like Dock 3.
- Proven Track Record: Years of experience equipping professionals with top-tier drone solutions.
- Ongoing Support: From training to troubleshooting, we help you stay mission-ready at all times.
Specifications
- Dock - General
- Product Name: DJI Dock 3
- Total Weight: 55 kg (without aircraft)
The actual product weight may vary due to differences in batch materials and external factors. - Dimensions:

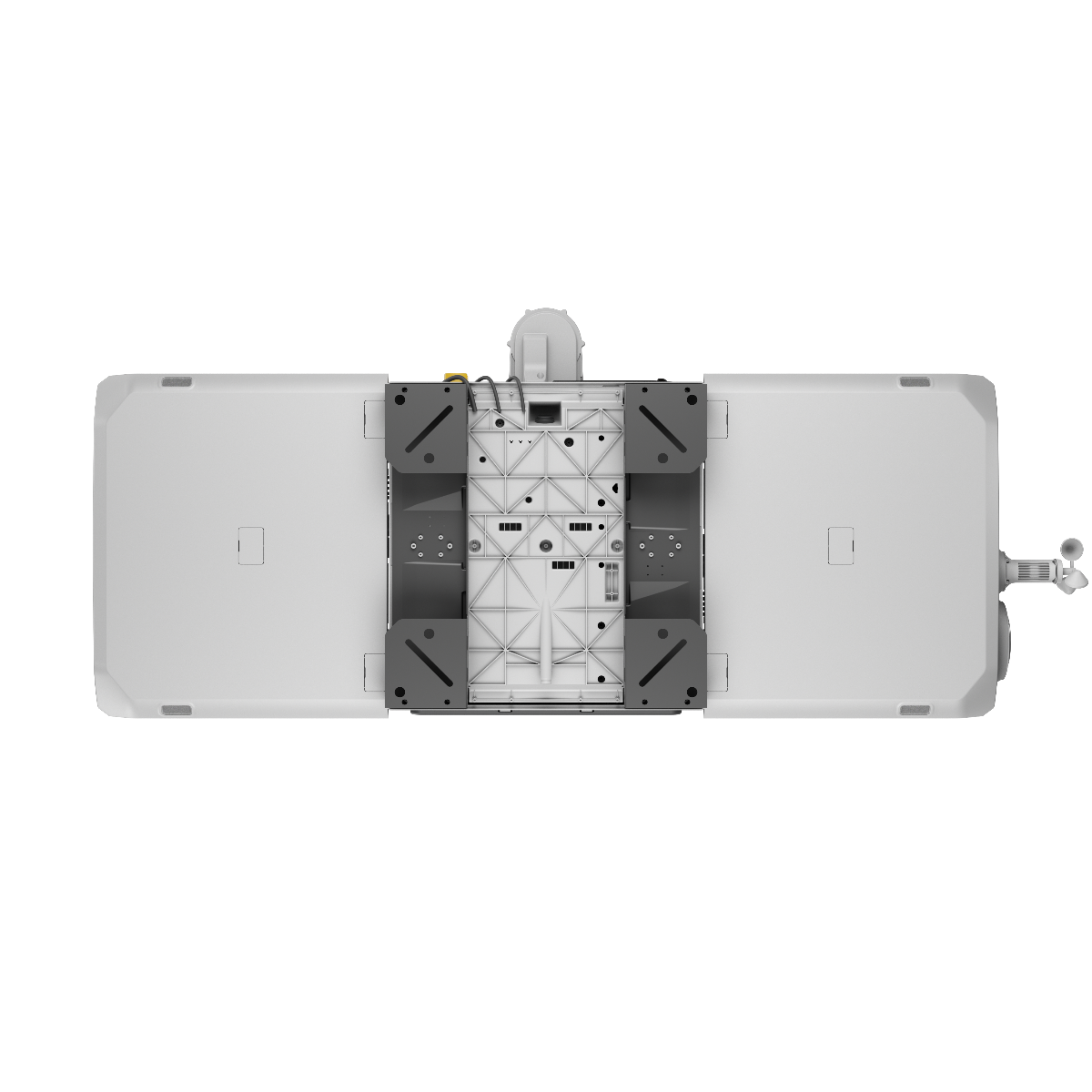

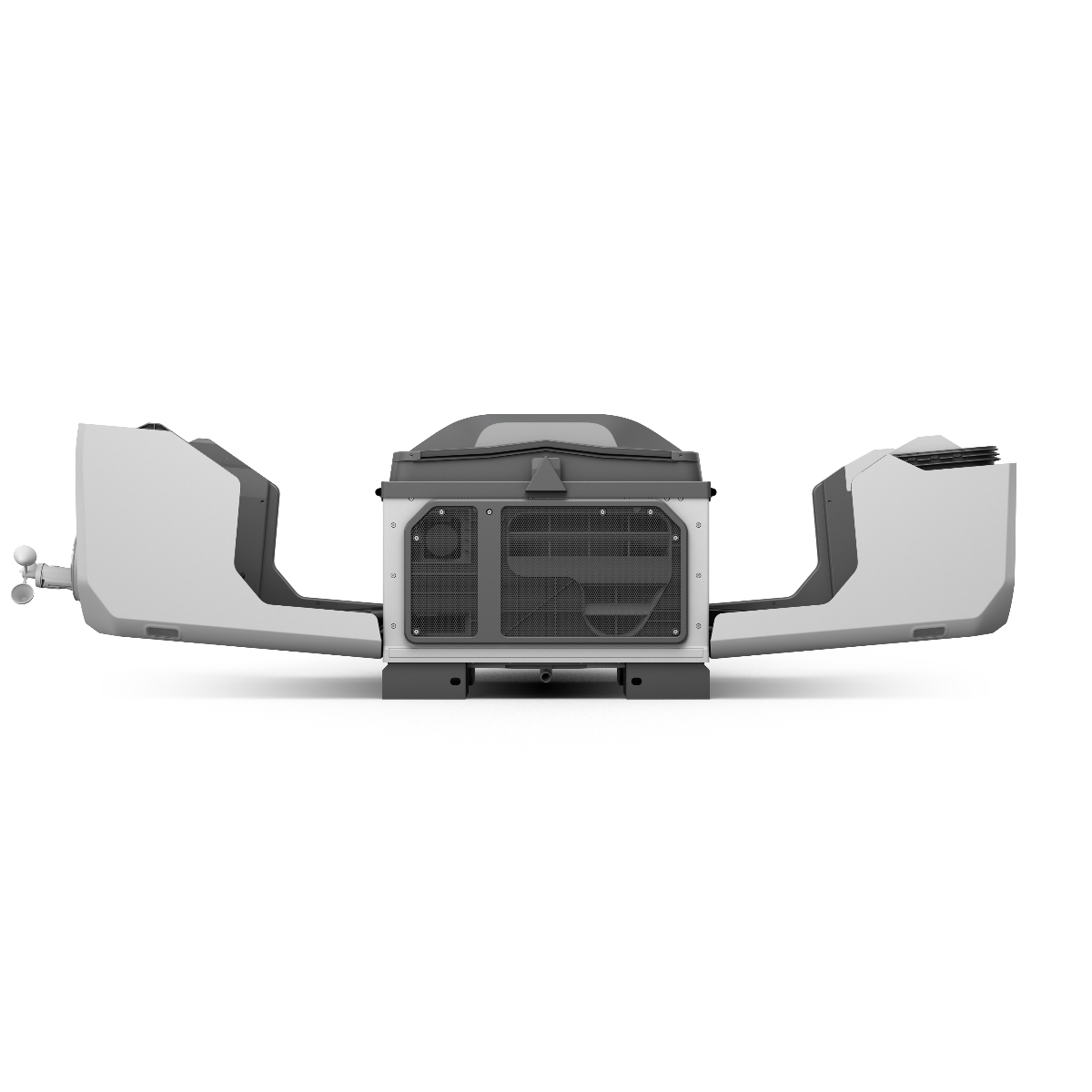

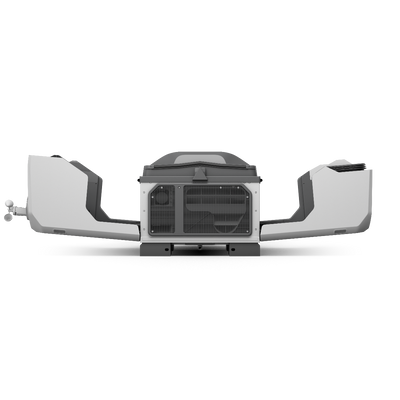

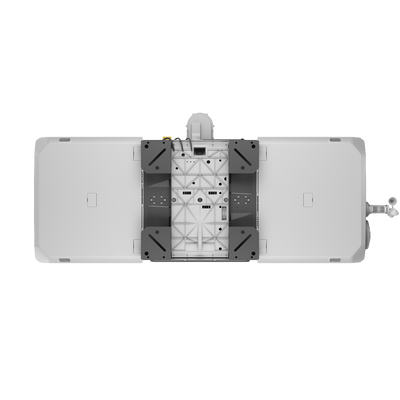

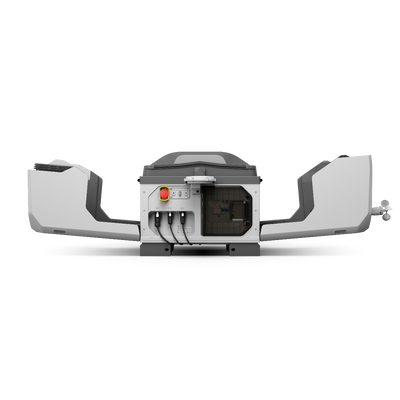

- Dock Cover Opened: 1760×745×485 mm (L×W×H)

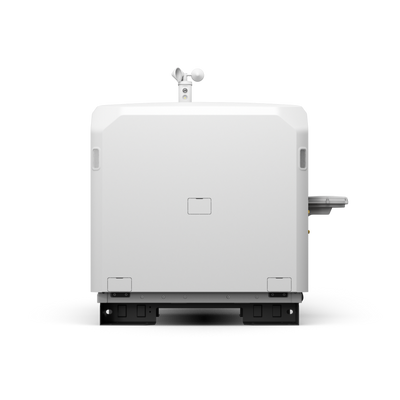

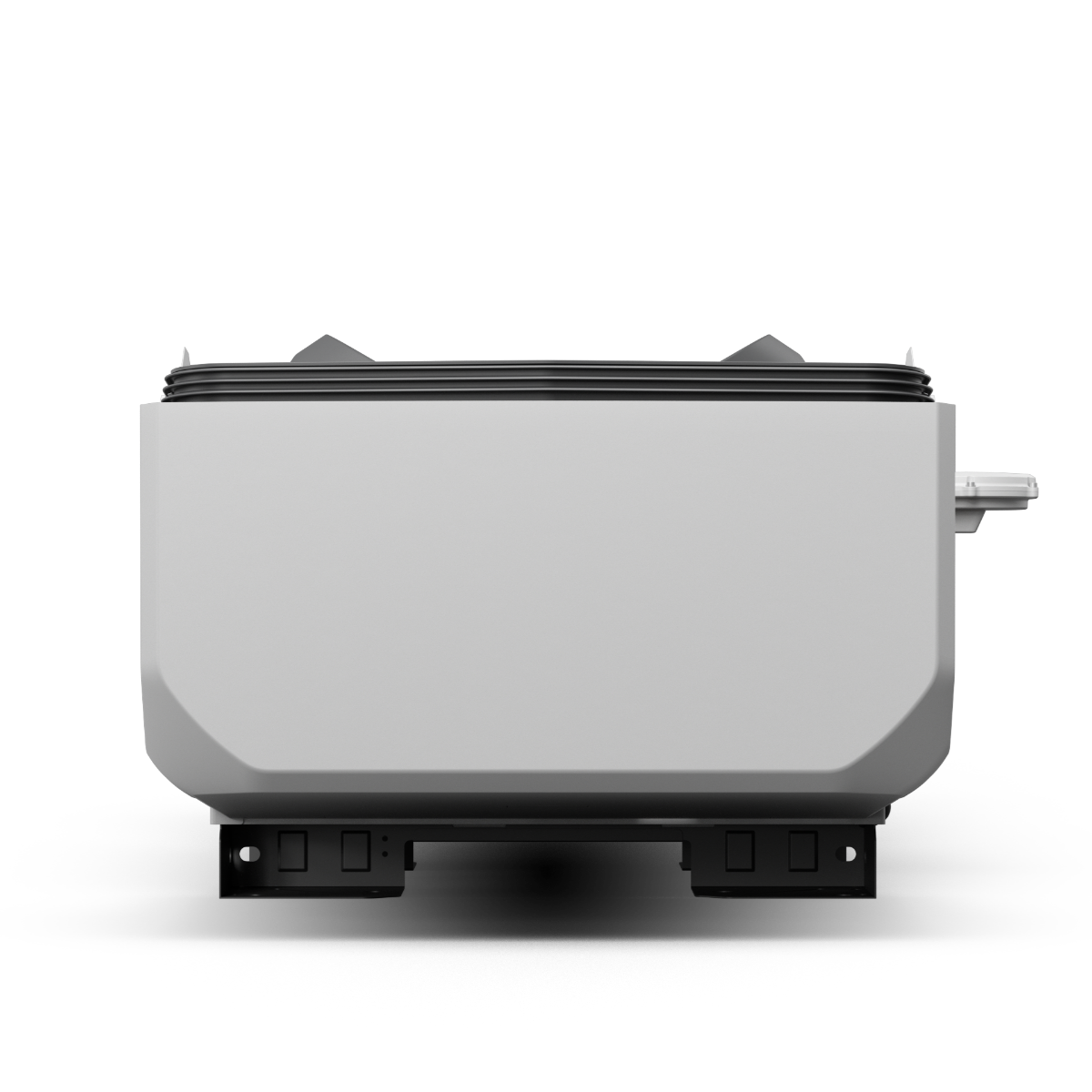

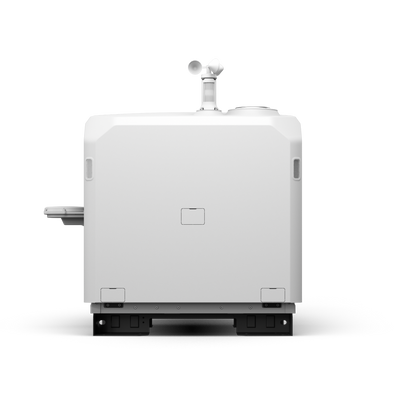

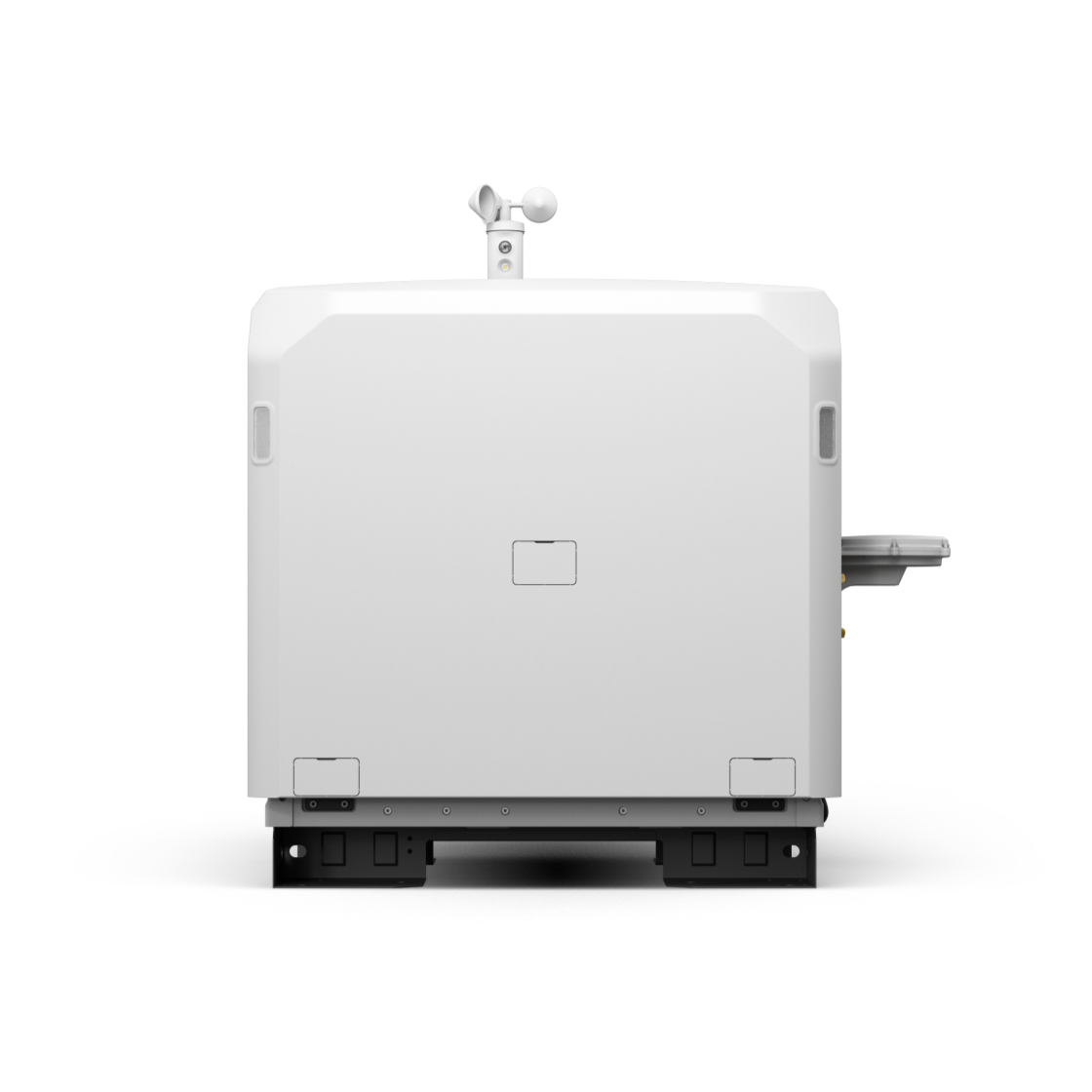

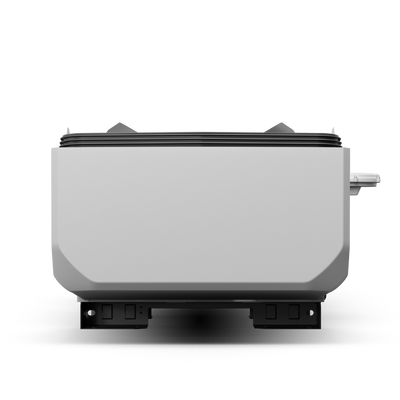

- Dock Cover Closed: 640×745×770 mm (L×W×H)
- Input Voltage: 100-240 V (AC), 50/60 Hz
- Input Power: Max 800 W
- Operating Temperature: -30° to 50° C (-22° to 122° F)
- Ingress Protection Rating: IP56
- Number of Drones Accommodated: 1
- Max Allowable Landing Wind Speed: 12 m/s
- Max Operating Altitude: 4500 m
- Receiving Frequency of RTK Base Station Satellite:
- GPS: L1 C/A, L2, L5
- BeiDou: B1l, B2l, B3l, B2a, B2b, B1C
- GLONASS: F1, F2
- Galileo: E1, E5a, E5b, E6
- QZSS: L1, L2, L5
- Positioning Accuracy of RTK Base Station:
- Horizontal: 1 cm + 1 ppm (RMS)
- Vertical: 2 cm + 1 ppm (RMS)
- Dock - Charging Performance
- Output Voltage: 35 V DC
- Charging Time: 27 minutes
The data was measured when charging the aircraft (when powered off) from 15% to 95% in a 25° C (77° F) environment.
- Dock - Video Transmission
- Operating Frequency:
- 2.400-2.4835 GHz
- 5.150-5.250 GHz (CE: 5.170-5.250 GHz)
- 5.725-5.850 GHz
- Antenna: Built-in 9 antennas, 2T4R, supports intelligent switching
- Transmitter Power (EIRP):
- 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
- 5.2 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE)
- 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 30 dBm (SRRC)
- Operating Frequency:
- Dock - Air Conditioning System
- Operating Voltage: 48 V DC
- Air Conditioning Type: Compressor-based air conditioning
- Dock - Backup Battery
- Battery Capacity: 12 Ah
- Output Voltage: 12 V
- Battery Type: Lead-acid battery
- Battery Life: > 4 hours
Measured with a fully charged backup battery in a 25° C (77° F) environment. After a power outage, the dock does not support functions like aircraft charging, air conditioning operation, dock cover heating, and wind speed gauge heating. Please restore power promptly.
- Dock - Network Access
- Ethernet Access: 10/100/1000Mbps adaptive Ethernet port
- 4G Access: Requires DJI Cellular Dongle 2
Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details.
- Dock - Sensor
- Wind Speed Sensor: Supported
- Rainfall Sensor: Supported
- Ambient Temperature Sensor: Supported
- Water Immersion Sensor: Supported
- In-Cabin Temperature Sensor: Supported
- In-Cabin Humidity Sensor: Supported
- Dock - Security Camera (External)
- Resolution: 1920×1080
- Field of View (FOV): 151°
- Auxiliary Light: Auxiliary White Light
- Dock - Security Camera (Internal)
- Resolution: 1920×1080
- FOV: 151°
- Auxiliary Light: Auxiliary White Light
- Dock - Lightning Protection
- AC Power Port: 20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements
- Ethernet Port: 10 kA (Itotal), meets EN/IEC 61643-21 Category C protection level requirements
- Dock - Supported Software
- Applications: DJI Enterprise app (used with Android phones for deployment and commissioning)
- Cloud Platform:
- FlightHub 2
- FlightHub 2 On-Premises Version
- FlightHub 2 FlightHub Sync
- DJI Cloud API
- Dock - Expansion Capability
- Edge Computing: Supports data communication with external switches
In The Box
- 1x Dock Body (incl. Ground Wire)
- 1x Wind Speed Gauge Module
- 4x Expansion Bolt
- 1x Ethernet Cable Connector
- 1x Power Cable Connector
- 1x Wire Ferrule
- 1x Screws and Tools
- 1x Manuals
