Rise above logistical limits with the DJI FlyCart 30, a groundbreaking drone designed to streamline delivery operations. Engineered to carry heavy payloads over extended distances, it features robust signal capabilities, advanced obstacle avoidance, and versatile delivery modes. Whether you're transporting urgent medical supplies or routine e-commerce packages, the FlyCart 30's reliability and efficiency help you tackle last-mile delivery challenges with ease.
Key Features
-
Heavy Lifter Across Long Distances
- Max payload of 30 kg in dual-battery mode, 40 kg in single-battery mode
- Up to 28 km range without payload; 16 km range with full payload
- 20 m/s top speed for fast, timely deliveries
-
Weather the Extremes
- Operational altitude up to 6,000 m
- Temperature range of -20°C to 45°C (-4°F to 113°F)
- Wind resistance up to 12 m/s for dependable performance in tough conditions
-
Enhanced Connectivity
- 20-km video transmission range with O3 technology
- 4G enhanced video transmission for real-time, stable monitoring
- Dual Operator Mode for collaborative control and FPV gimbal camera for clear navigation
-
Advanced Safety and Intelligent Features
- Front and rear phased array radars + dual binocular vision for obstacle sensing
- ADS-B signal receiver for aircraft detection and avoidance
- Integrated parachute with automatic self-check and independent power source
- RTK module for centimeter-level positioning accuracy
-
Convenient Payload Configurations
- Cargo Mode: Built-in weight and center-of-gravity detection for stable flights
- Winch Mode: Remote cable deployment for precision drops or pick-ups (winch kit sold separately)
-
One-Stop Solution for Aerial Delivery
- DJI Pilot 2 for real-time monitoring of flight and cargo status
- DJI DeliveryHub for comprehensive planning, team management, and data analysis
- Intelligent flight features like Cruise Control and AR Projection for efficient route execution
How DJI FlyCart 30 Helps Solve Pain Points
- Reduced Delivery Costs: Saves fuel, labor, and vehicle maintenance expenses
- Dangerous Operations: Accesses remote or hazardous locations without risking human operators
- Faster Delivery Time: Flies at 30-60 mph, ideal for urgent deliveries to disaster zones or remote areas
- Low Carbon Emissions: Electric propulsion reduces the environmental impact compared to ground vehicles
Bundle Contents
- (1) DJI FlyCart 30 Delivery Drone
- (4) DJI FlyCart 30 DB2000 Intelligent Flight Battery - FC30
- (2) DJI CrystalSky/Cendence - WB37 Intelligent Battery (4920mAh)
- (1) DJI FlyCart 30 Winch System Kit
- (1) DJI WB37 Battery Charging Hub (USB-C)
- (1) DJI C8000 (FlyCart 30) Intelligent Battery Station
Why Buy from DSLRPros
- Specialized Tools: Tailored to meet unique industry needs-from construction to agriculture and public safety.
- Focused Expertise: Solutions crafted to overcome your sector's challenges with ease.
- Advanced Drones: Featuring best-in-class products like DJI FlyCart 30 for superior results.
- Secure Systems: GDPR-compliant data tools for peace of mind.
- Full Support: Training and resources to help you achieve maximum efficiency and success.
Specifications
Aircraft
- Weight: 42.5 kg (without battery), 65 kg (with two DB2000 batteries)
- Max Takeoff Weight: 95 kg (with cargo at sea level)
- Max Diagonal Wheelbase: 2200 mm
-
Dimensions:
- 1590 x 1900 x 947 mm (arms unfolded, propellers folded)
- 2800 x 3085 x 947 mm (arms & propellers unfolded)
- 1115 x 760 x 1027 mm (arms & propellers folded)
- Folding Method: Towards body
- Loadable Battery Quantity: 2
-
Hovering Endurance:
- Empty weight: 29 mins (dual battery), 15 mins (single battery)
- Max weight: 18 mins (30 kg load, dual battery), 8 mins (40 kg load, single battery)
-
Max Flight Distance:
- Empty weight: 28 km (dual battery), 12 km (single battery)
- Max weight: 16 km (30 kg load, dual battery), 8 km (40 kg load, single battery)
- Max Flight Time (Max Weight): 18 mins (30 kg load, dual battery), 9 mins (40 kg load, single battery)
- Operating Temperature: -20° to 45° C
- Ingress Protection Rating: IP55
- Hovering Accuracy (with strong GNSS signal): ±10 cm horizontal, ±10 cm vertical (RTK enabled)
- RTK/GNSS Operating Frequency: GPS L1/L2, Galileo F1/F2, BeiDou B1I/B2I/B3I, etc.
- Max Pitch Angle: 30°
- Max Ascent Speed: 5 m/s
- Max Descent Speed: 3 m/s (vertical), 5 m/s (tilted)
- Max Horizontal Speed: 20 m/s
- Max Flight Altitude: 6000 m (without payload)
- Max Wind Speed Resistance: 12 m/s
Propulsion System
- Stator Size: 100x33 mm
- Motor KV Value: 48 rpm/V
- Max Motor Power: 4000 W/rotor
-
Propellers:
- Material: Carbon fiber composite
- Diameter: 54 inches
- Type: Foldable double-blade
- Rotor Quantity: 8
LED Light
- Effective Illumination Distance: 10 m
- Illumination Mode: 60 Hz, automatic switching based on ambient light
DJI O3 Image Transmission
- Model: Pigeon (with DDR)-2T4R
- Signal Effective Distance: 20 km (FCC), 8 km (CE/SRRC/MIC)
- Operating Frequency: 2.4000-2.4835 GHz, 5.725-5.850 GHz
-
EIRP:
- 2.400 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
- 5.725 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)
- Data Security: AES-256
- ADS-B: Supported
Forward and Backward Active Phased Array Radar
- Model Number: RD241608RF (forward), RD241608RB (backward)
- Altitude Detection: 1.5-200 m
- Rear Obstacle Avoidance: 1.5-50 m
- FOV: Forward 360° horizontal, ±45° vertical; Backward ±45° horizontal, 360° vertical
Binocular Vision System
- FOV: Horizontal 90°, Vertical 106°
- Work Environment: Normal lighting with clearly textured surfaces
FPV Camera
- Resolution: 1920x1440
- DFOV: 149°
- Frame Rate: 30fps
- Type: Full HD FPV Single Axis Gimbal Camera
- Fill Light: Supported
Cargo Case
- Dimension: 754x472x385 mm (LxWxH)
- Inner Space: 573x416x305 mm (LxWxH)
- Material: EPP plus aluminum alloy frame
- Weight: Approx. 3 kg
- Load Capacity: 0-40 kg
- Weighing Feature: Supported
Parachute
- Max Payload: ≤ 95 kg
- Dimension: 300x200x120 mm (LxWxH)
- Weight: Approx. 2.1 kg
- Automatic Reaction Time: Approx. 1000 ms
- Descending Speed: ≤ 6 m/s
- Material: Nylon
- Surface Area: Approx. 22 ㎡
- Minimum Opening Height: 60 m
- Operating Temperature: -20° to 45° C
- Ingress Protection Rating: IP55
- Mainboard Power-off Battery Life: ≥ 1 hour
- Memory Card Capacity: Real-time record for 10 flights
- Buzzar Alarm: Supported
- Lighting Alarm: Supported
- Manually Opening: Supported
- Automatic Opening: Supported

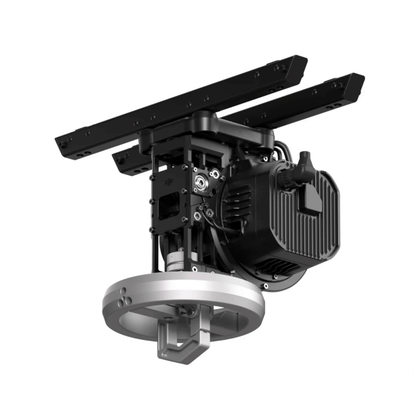

Winch System (Optional)
- Model: A2EWI-30A
- Dimension: 252x195x193 mm (LxWxH)
- Weight: 2.5 kg (without clump and couple)
- Payload Capacity: 5-30 kg (dual battery), 5-40 kg (single battery)
- Cable Length: 20 m
- Max Retraction Speed: 0.8 m/s
- Operating Temperature: -20° to 45° C
- Ingress Protection Rating: IP55
- Weighing Function: Supported
- Cut Cable Protection: Supported
DJI DB2000 Intelligent Battery
- Model: DB2000
- Capacity: 38000 mAh
- Nominal Voltage: 52.22 V
- Energy: 1984.4 Wh
- Weight: Approx. 11.3 kg
- Dimension: 316x152x279 mm (LxWxH)
- Operating Temperature: -20° to 45° C
- Max Charging Power: 5700 W
- Automatic Heating Feature: Supported

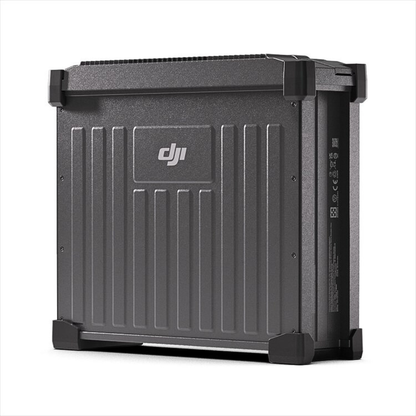

DJI C8000 Intelligent Charger
- Model: CHX101-7000
- Input: 90-264 V AC
- Max Output Power: 7200 W (Dual input), 3600 W (Single input)
- Output Channel Quantity: 2
- Protection Features: Overheating, overvoltage, undervoltage, short circuits, fan stalls
- Operating Temperature: -20° to 45° C
Remote Controller
- Type: DJI RC Plus
- Operating Frequency: 2.400-2.483 GHz, 5.725-5.850 GHz
-
EIRP:
- 2.400-2.4835 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
- 5.725-5.850 GHz: <33 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)
- Operating Temperature: -20° to 50° C
- Charging Time: 2 hours with built-in battery
- Ingress Protection Rating: IP54
- Screen: 7.02 inch touch LCD, resolution 1920x1200, brightness 1200 nits
- Dual Operator Mode: Supported
In the Box

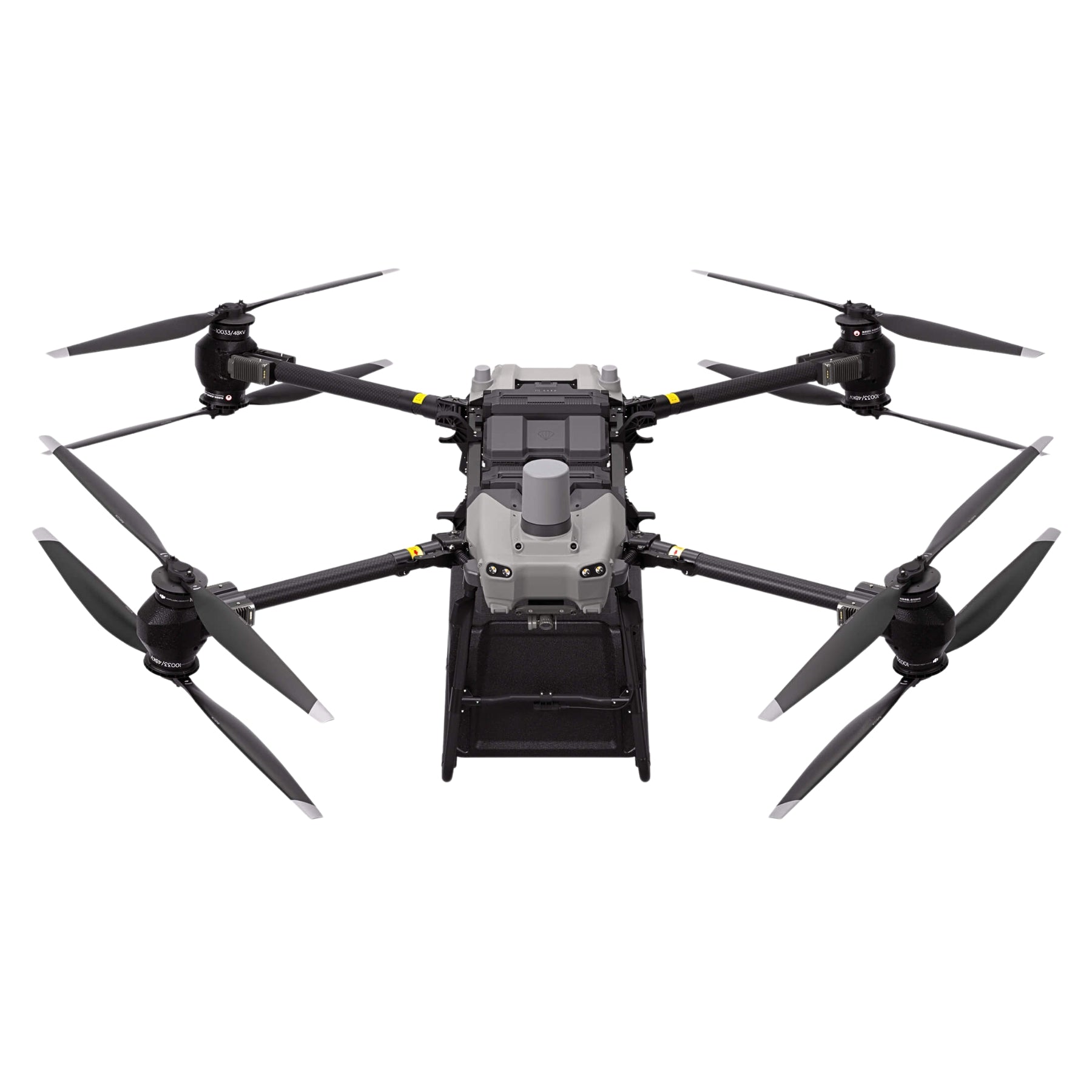

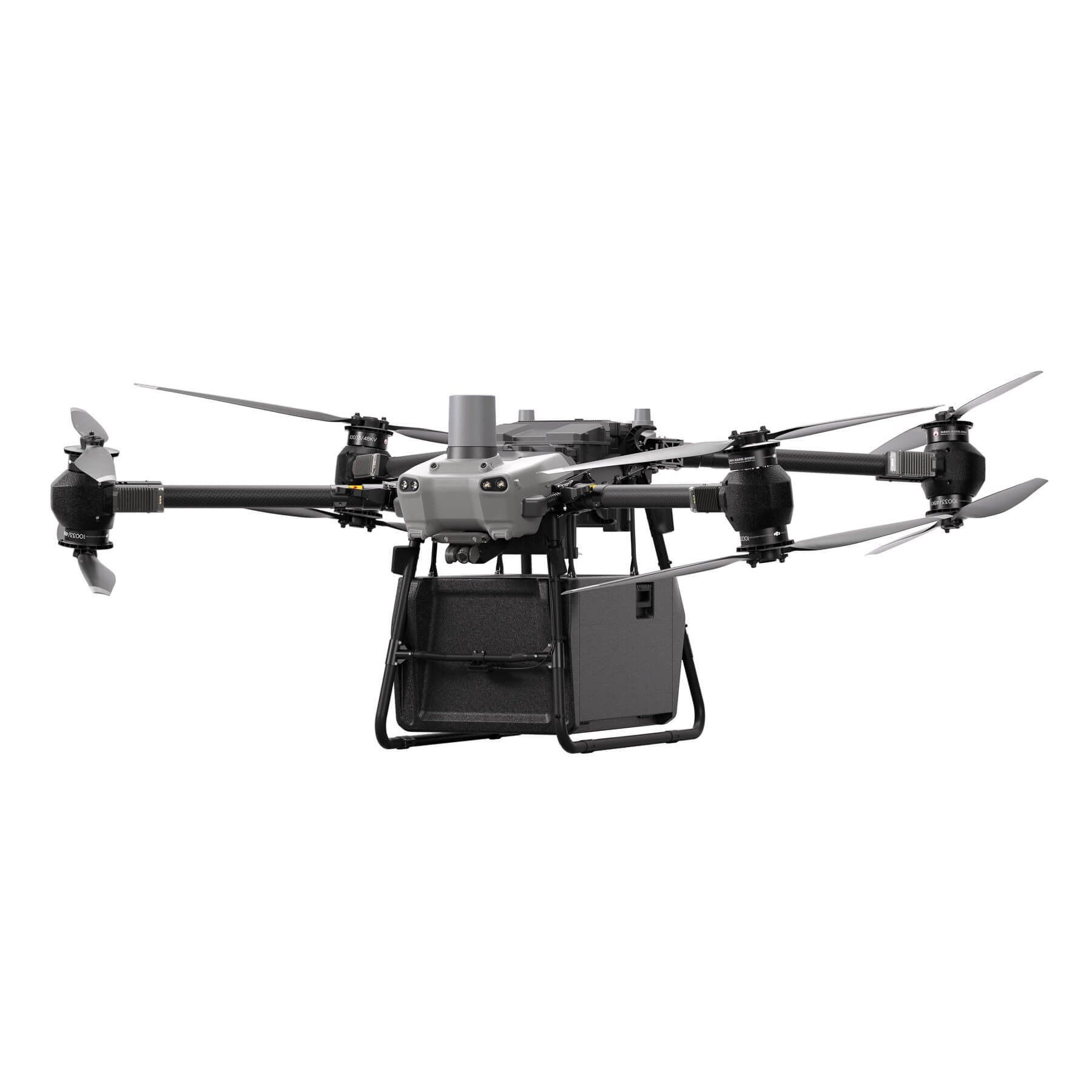

- 1x DJI FlyCart 30 - Delivery Drone
- 4x DJI Flycart 30 DB2000 Intelligent Flight Battery - FC30
- 2x DJI CrystalSky/Cendence - WB37 Intelligent Battery (4920mAh)
- 1x DJI FlyCart 30 Winch System Kit

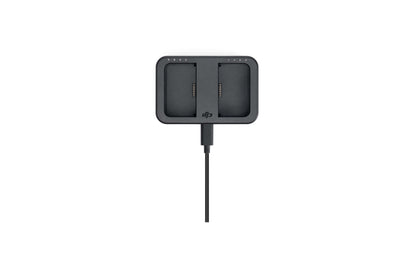

- 1x DJI WB37 Battery Charging Hub (USB-C)
- 1x DJI C8000 (Flycart 30) Intelligent Battery Station
