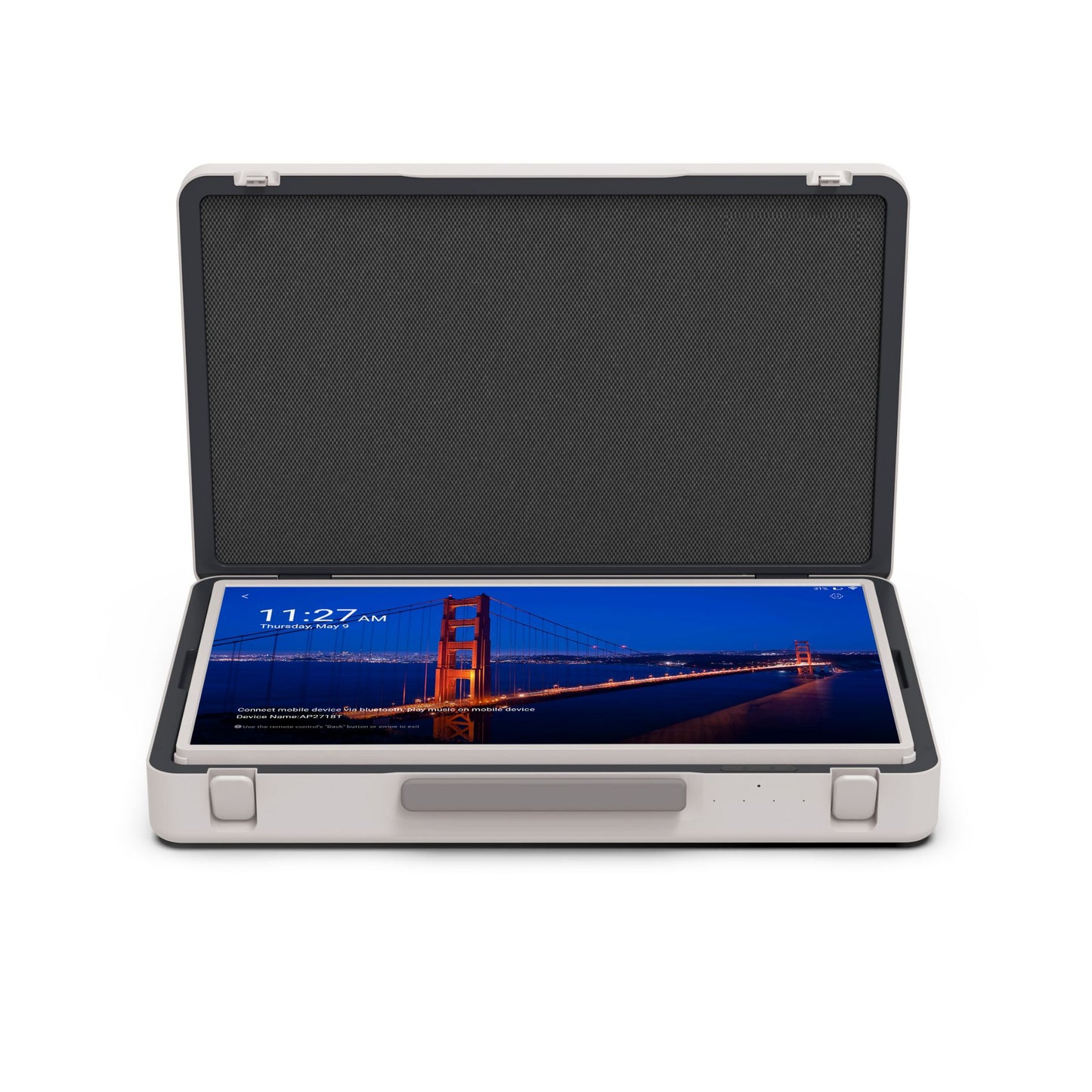

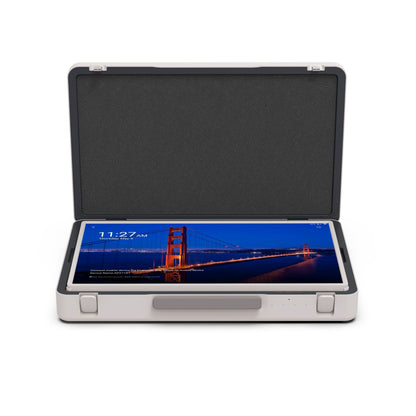

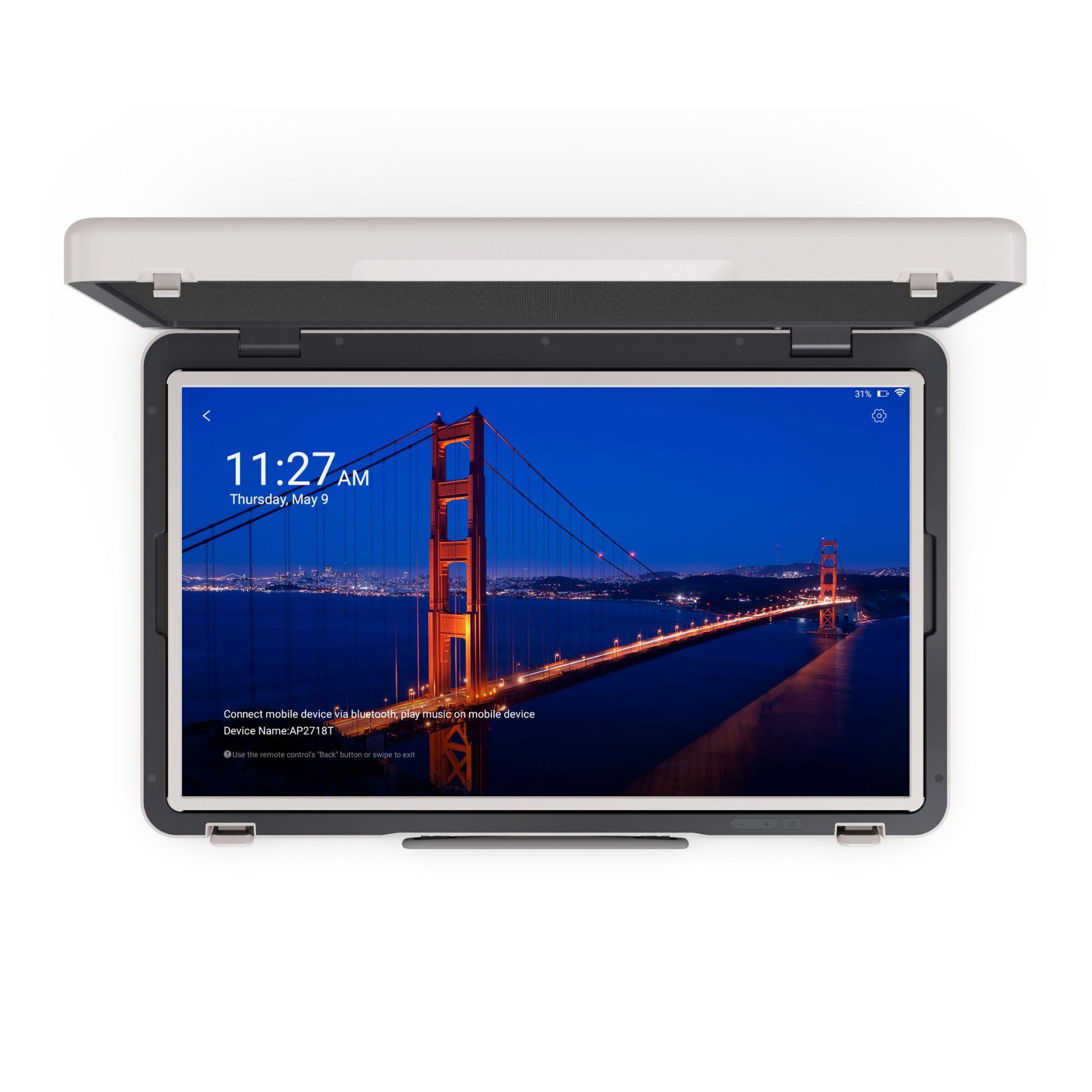

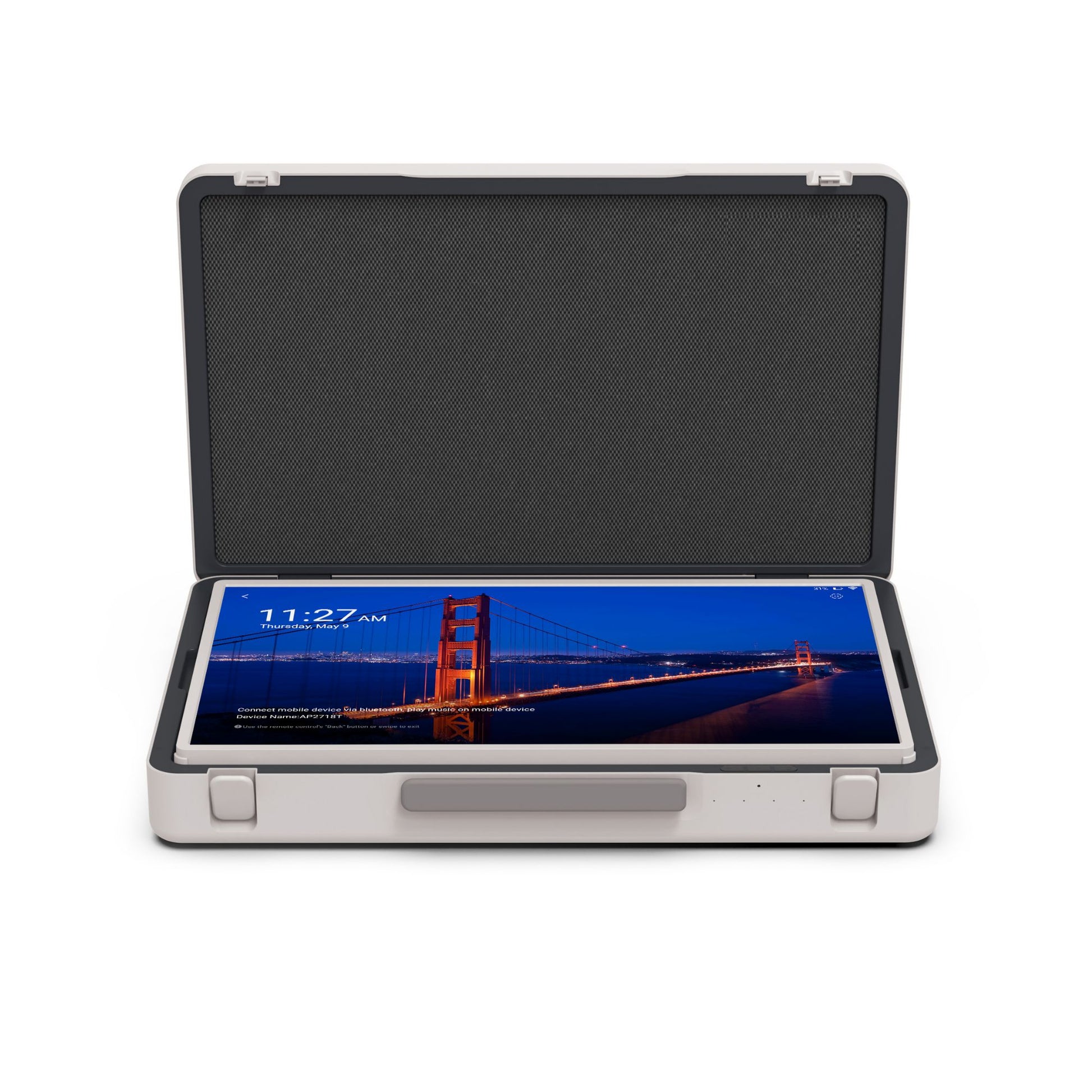

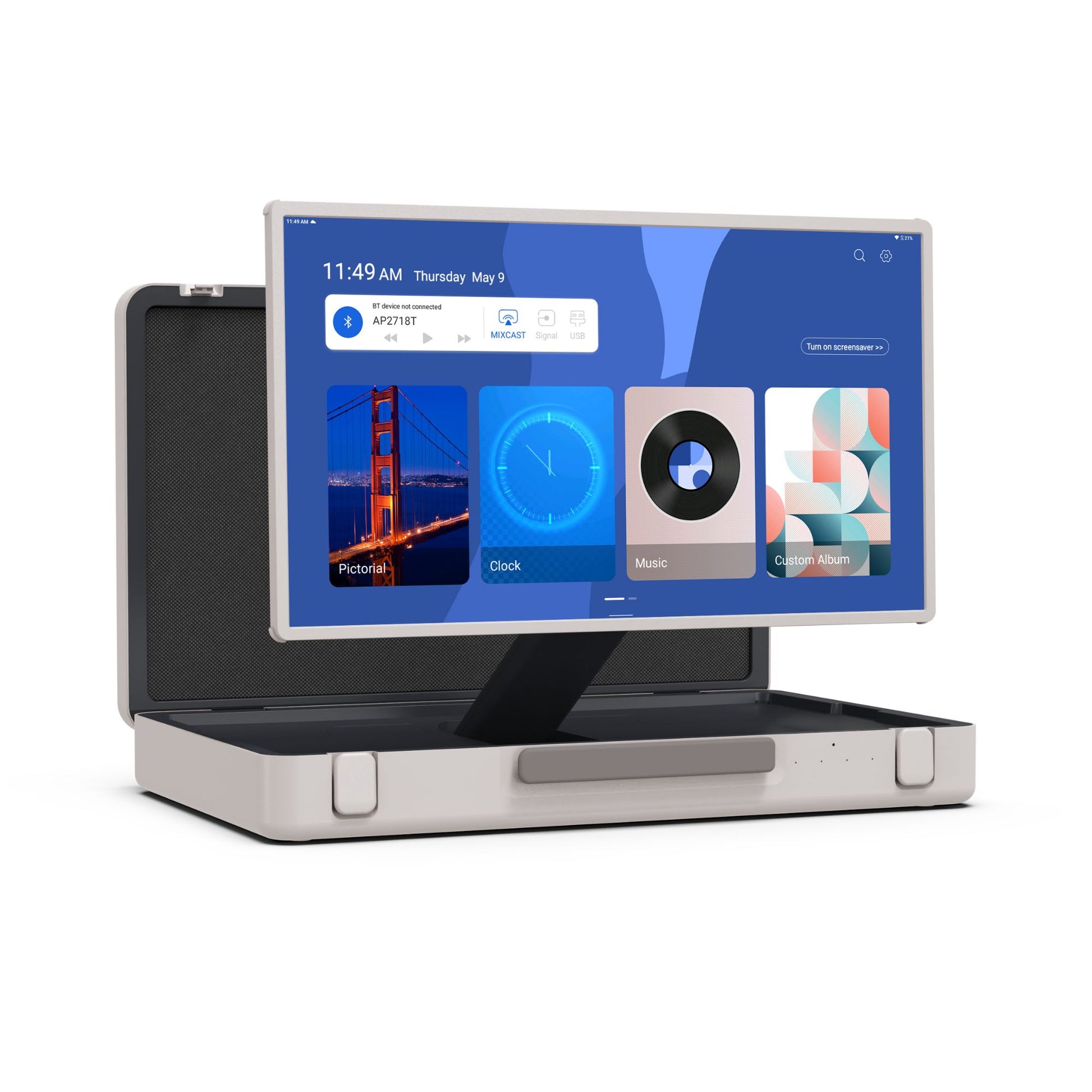

Elevate your UAV workflow with the DSLRPros 27" Mobile Display Suitcase , a portable display tailored for professionals demanding precision and reliability. This 27" touchscreen monitor offers a stunning 1000:1 contrast ratio, delivering vibrant, detailed visuals for real-time flight monitoring, aerial footage analysis, and mission-critical planning. The suitcase design ensures maximum portability, making it ideal for field operations and on-the-go setups.
With versatile input options—Type-C, USB, HDMI, and display port—it connects effortlessly to drones, ground control systems, and other devices. Powered by the Android 12 operating system, with 8GB of RAM and 128GB of storage, it offers robust multitasking capabilities for handling advanced UAV software applications. Backed by a 1-year warranty, online technical support, and a dedicated call center, the DSLRPros 27" Mobile Display Suitcase guarantees a seamless, worry-free experience. Perfect for UAV operators looking for unparalleled performance and convenience.
Specifications
Display
- Diagonal Size: 27-inch
- Screen Type: IPS
- Resolution: 1920 x 1080 pixels
- Number of Colors: 16.7M Colors
- Color Gamut: 72% NTSC
- Viewing Angle: R/L 89/89, U/D 89/89
- Display Mode: Normally black
- Contrast Ratio: 1000:1
- Response time (GtG): 6ms
- Backlight: LED
- Luminance: 450 nits
- Aspect Ratio: 16:9
- Touchscreen Type: In-cell touch
- Number of Points: 10-point
- Interface for Touch: HID-USB
Processor
- CPU: RK3588 Quad-core cortex A55 + Quad-core cortex A76
- RAM: 8GB
- ROM: 128GB
- Operating System: Android 12
Size and Weight
- Dimensions: 669 × 420 × 115.3 mm (L × W × H)
- Shipping Box Dimensions: 765 × 568 × 180 mm (L × W × H)
- Weight (Unpackaged): 13.8 kg
- Weight (Packaged): 16.1 kg
Power and Battery
- Battery Type: 18650 rechargeable lithium-ion battery
- Battery Capacity: 14.4V/ 6800mAh
- Battery Life: 5-6 hours
Wireless
- WiFi: IEEE 802.11b/g/n/a/ac/ax
- Bluetooth: Bluetooth 5.2
I/O Ports
- USB Type-C: Full Function (Except for charging function)
- DP in: DP IN function, Compatible with PD fast charge output, support 5V/3A, 9V/3A, 12V/3A, 15/3A output
- USB-A: USB 3.0 HOST
- HDMI: Support 800*600, 1024*768, 1280*720, 1280*800, 1280*1024, 1366*768, 1600*900, 1920*1080, 3840*2160, etc
- AC Power Input: Socket, AC voltage 100-240V input
- Rocker Switch: Control the motherboard battery switch
- Storage Box: ×3
Media Format
- Video Format: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC, AV1, etc., support up to 8K@60fps
- Audio Format: MP3/WMA/AAC/WAV/OGG, etc
- Photo: JPEG/PNG/GIF, etc
Others
- Color: Warm Grey
- Button: Power/Volume+/Volume-
- Gravity Sensor: Supports 90° rotation
- Speaker: Tweeter 0.75inch 4Ω/10W*2, woofer 2.5inch 4Ω/10W*2
- Microphone: Standard built-in 4 microphones, supporting noise reduction and echo cancellation
- OSD Language: Multilingual OSD operation in Chinese and English
- Closure Dormancy: Supports lid closure sleep, lid opening wake-up/lid opening startup
- LED light (front):
- Blue light: Battery level > 15%
- Green light: Flashing during AC charging, always on when fully charged
- Red light: Battery level ≤ 15%
- Turn off the lights: Shutdown and hibernation

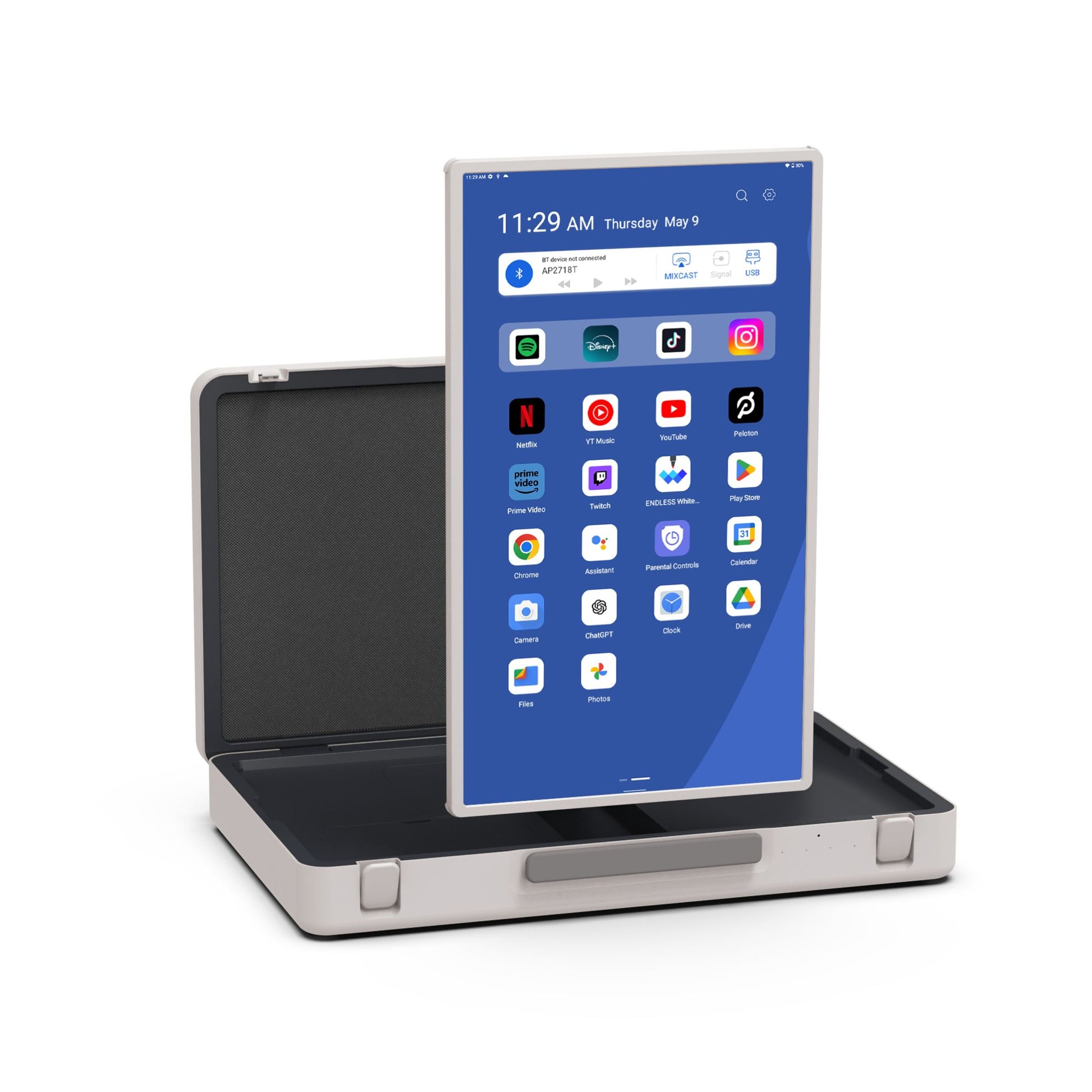

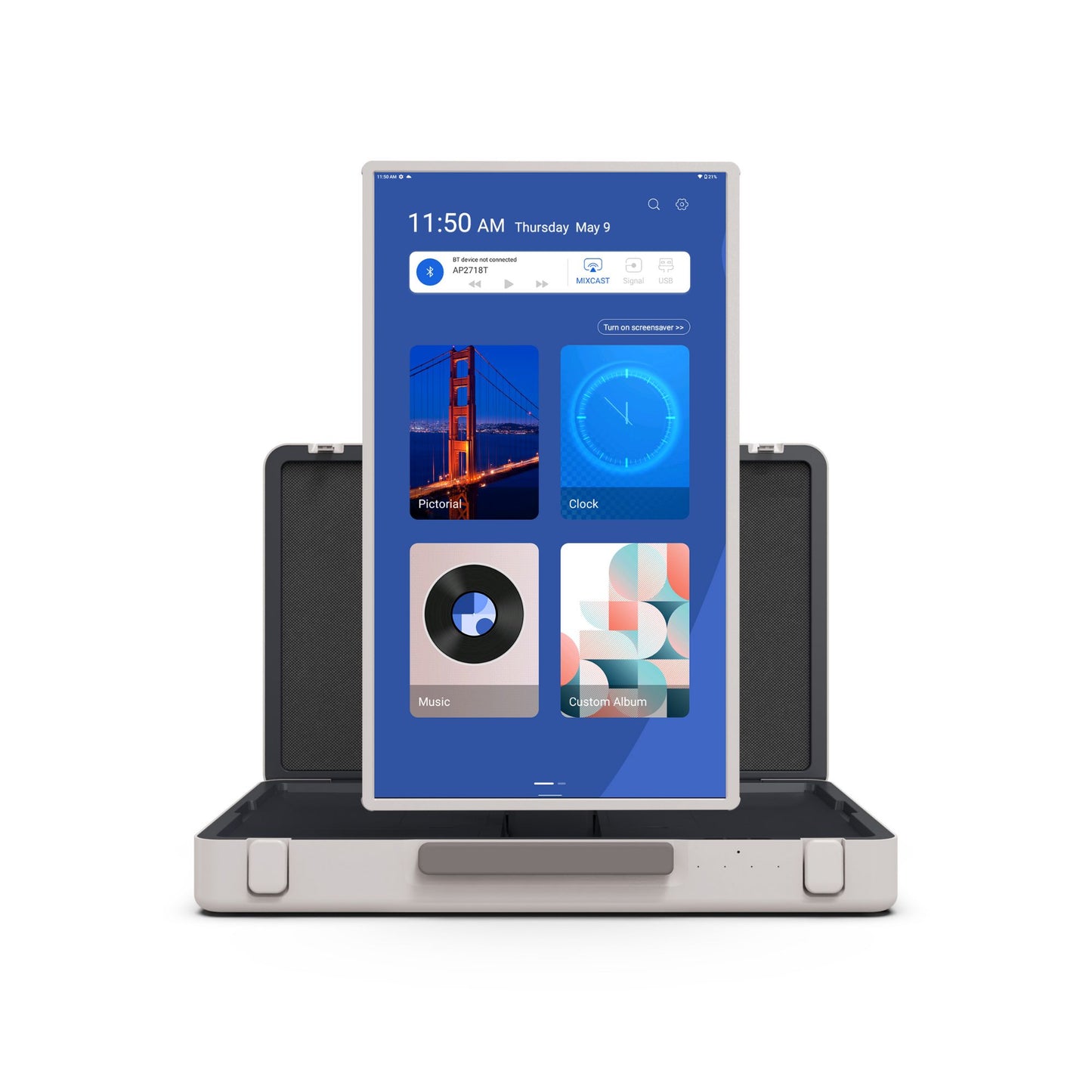

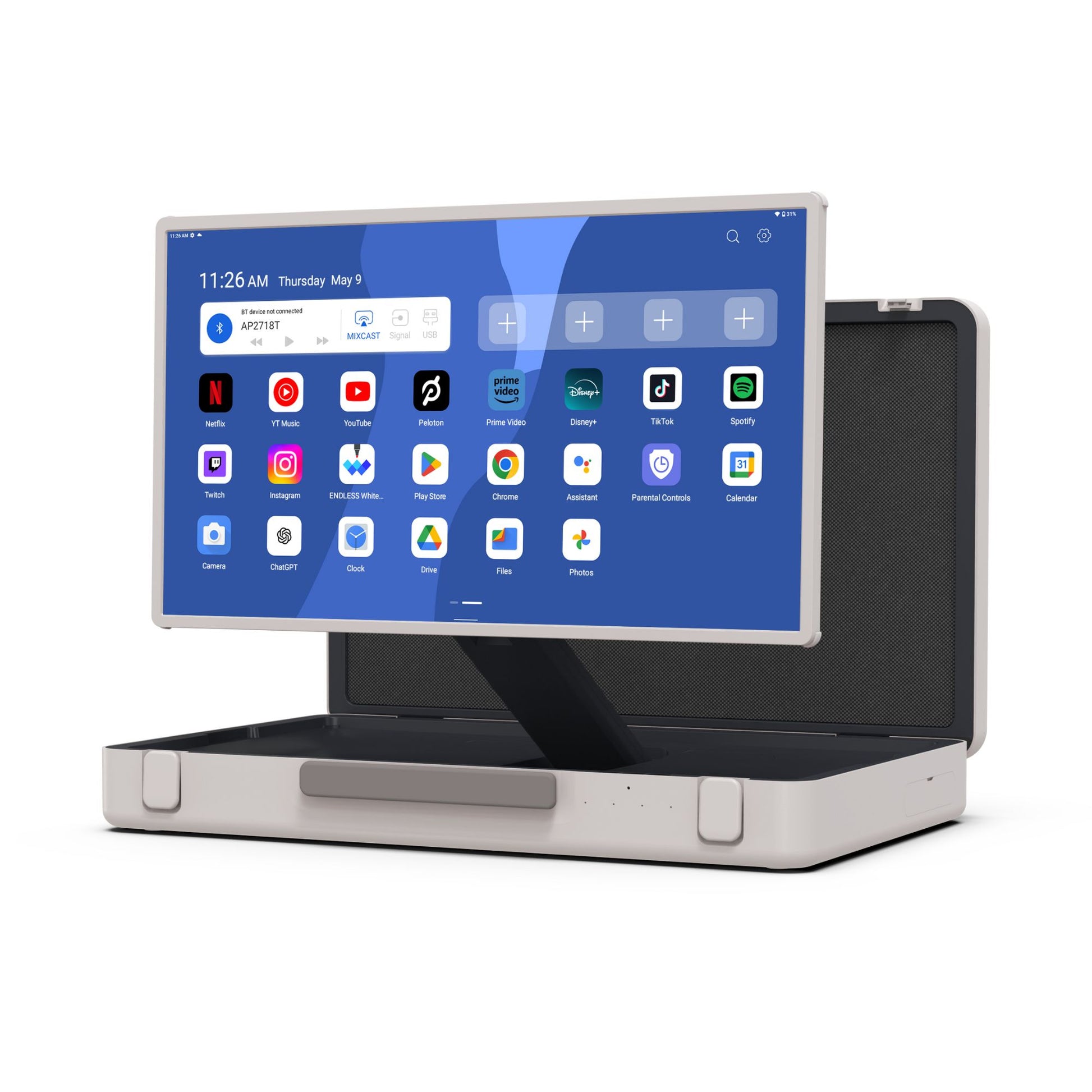

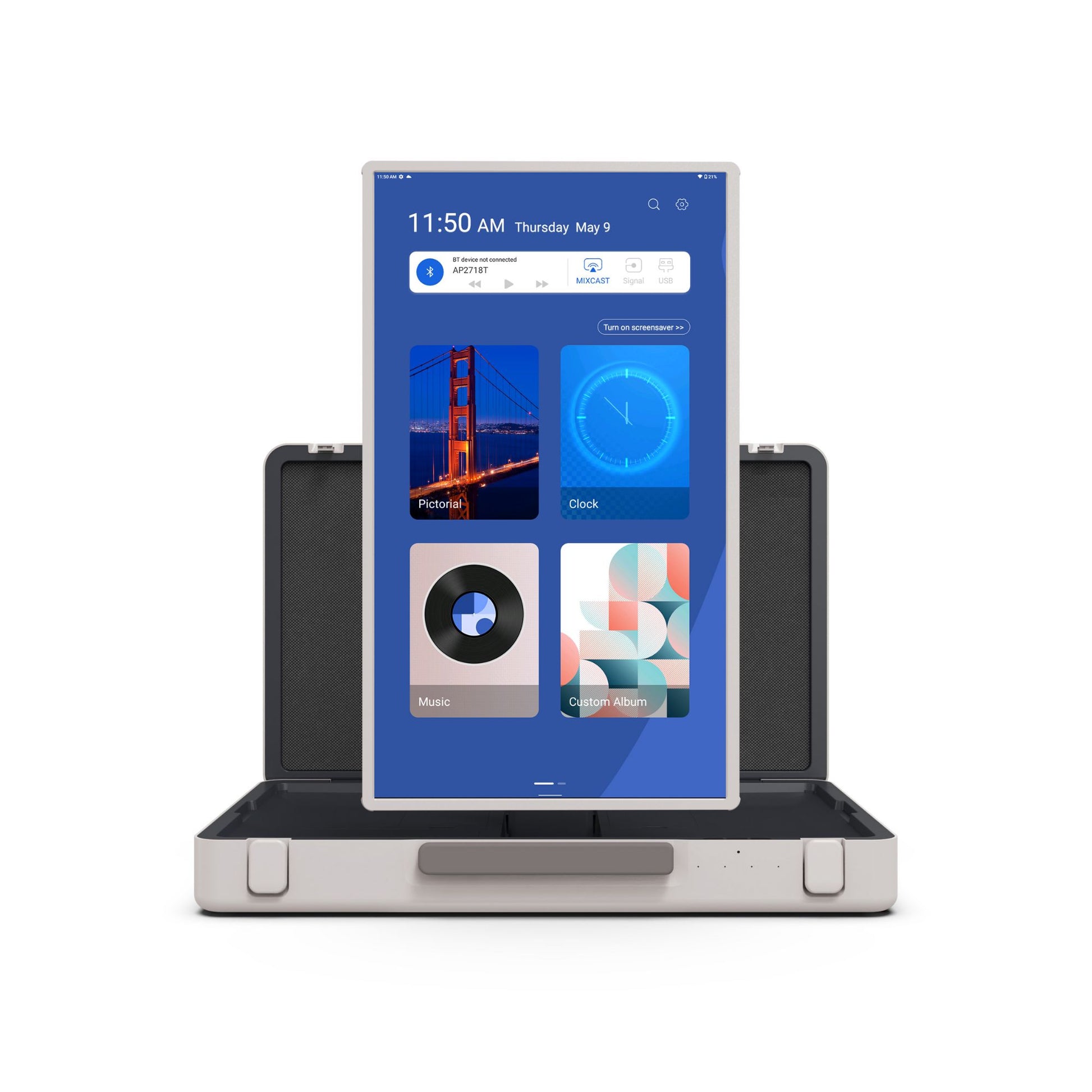

- Tilt: For Landscape Mode: Forward tilt 3°, backward tilt 90°; For Portrait Mode: Forward tilt 3 degrees, backward tilt 40°
- Rotation: 0-90°
- Height: 200mm
- Operation Temperature: 0℃-45℃
- Storage Temperature: -20℃-60℃
- Operation Humidity: 20~80%RH
- Storage Humidity: 10~95%RH
In The Box
- 1x DSLRPros 27" Mobile Display Suitcase
- 1x 1.5 meters AC Cable
- 1x 0.8 meters Bluetooth Remote Control
- 1x USB-C Cable
- 1x User Manual
