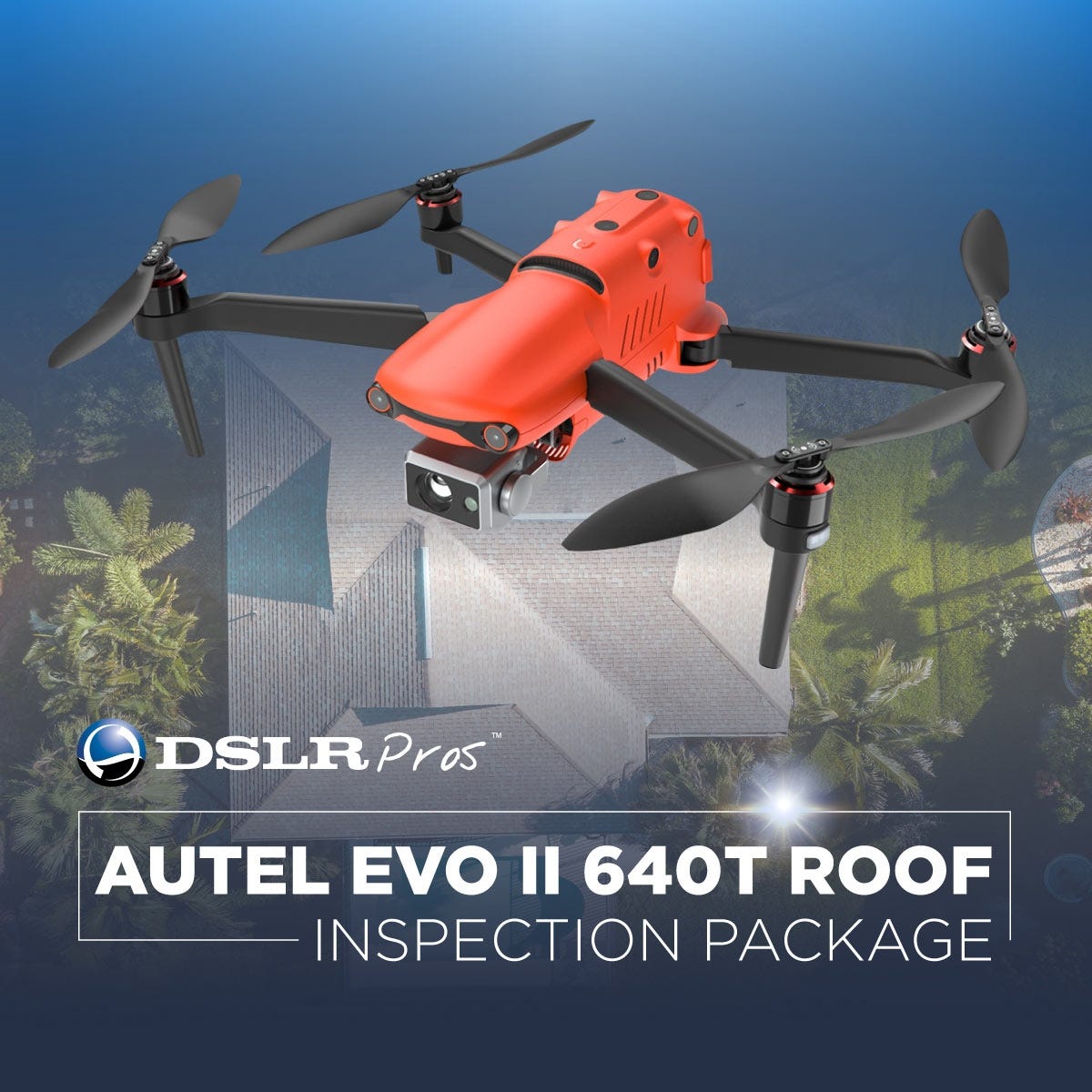

Redefine Precision with the EVO II 640T Roof Inspection Package
Elevate your roof inspection operations with the DSLRPros EVO II 640T Roof Inspection Package. Designed for professionals, this cutting-edge solution combines advanced imaging capabilities with smart control technology, streamlining workflows and delivering unparalleled accuracy.
The Dual-Cam Advantage
The EVO II Dual 640T V3 features 2 cameras that give you the ability to carry out different kinds of missions with just one powerful drone. Whether it's casual overhead photography, area surveying, line inspection, locating of hotspots, search and rescue, or crowd monitoring, this drone has got you covered.
-
640T thermal camera
The Autel EVO II Dual 640T Rugged Bundle V3 is equipped with 640*512 30Hz HD thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom. Now you'll find it easy to observe distant targets.
The system uses a new image processing algorithm which helps make thermal imaging details clearer and more discernible than competition with the similar resolution and hardware.
-
50-MP ultra-sensitive visual camera
The visual camera installed in the drone features a unique RYYB sensor with Moonlight Algorithm 2.0. This improves the camera's 50 megapixels by giving users more information for better forensics and analysis even in low-light situations.
High-Performance Imaging Technology
Equipped with advanced imaging systems, the EVO II 640T enhances operational efficiency and delivers detailed analysis for critical inspections.
- Thermal Precision: A proprietary image processing algorithm sharpens thermal details, making observations more accurate and reliable.
- Low-Light Optimization: Detect and identify objects confidently in low visibility with enhanced camera sensitivity.
- Quick Target Tracking: PDAF and CDAF technologies ensure rapid and accurate focus.
Harness state-of-the-art imaging tools to uncover insights that drive informed decisions.
Reliable Performance for Demanding Missions
The EVO II 640T offers long-range communication, extended flight time, and advanced safety features to support complex missions.
- Long-Range Operations: SkyLink 2.0 technology enables video transmission up to 15 kilometers.
- Extended Flight Time: A robust battery supports up to 40 minutes of continuous operation.
- Enhanced Safety: 19 sensors, including obstacle detection, real-time path planning, and three-dimensional mapping, ensure secure flights.
- Anti-Interference Technology: Tri-band communication and frequency hopping maintain stable connections.
Rely on superior performance and safety features for seamless execution of high-stakes operations.
Smart Control for Effortless Operation
The Autel Smart Controller SE empowers users with intuitive and reliable control.
- HD Visuals: A 6.4-inch OLED touchscreen provides crystal-clear image transmission.
- Weather-Resistant Design: IP43-rated construction ensures functionality in all conditions.
- Customizable System: The Android-based interface allows integration of third-party applications.
- Anti-Interference Capability: Triple band frequency hopping ensures smooth operation in complex environments.
Simplify your workflow with intelligent controls that put you in charge of every mission.
Professional Solutions for Specialized Fields
The EVO II 640T Roof Inspection Package is a versatile tool designed to meet the needs of industry professionals.
- Roof Inspections: Conduct thorough assessments of commercial and residential properties with thermal and visual imaging.
- Solar Energy Maintenance: Detect inefficiencies and damages in solar panels with precision thermal sensors.
- Utility Infrastructure: Monitor and inspect power lines, substations, and critical infrastructure with ease.
- Public Safety: Enhance search and rescue missions with thermal tracking and quick deployment capabilities.
- Construction and Real Estate: Capture detailed aerial imagery for project planning and promotional materials.
From inspections to public safety, this drone is the trusted choice for professionals in demanding industries.
Ready to Elevate Your Operations?
The Autel EVO II 640T Roof Inspection Package is a game-changing solution for inspection and survey professionals. Contact us today to learn more about pricing and discover how this powerful tool can transform your operations.
Why Choose DSLRPros for Drone Solutions?
At DSLRPros, we focus on delivering performance-driven drone systems for professionals.
- Precision Tools: Designed for industries like safety, agriculture, and more.
- Industry Know-How: Solutions built to solve sector-specific obstacles.
- High-Caliber Technology: Drones like the DJI Phantom for superior stability.
- Data Confidence: GDPR-compliant systems for reliable data handling.
- Expert Training: Support to unlock your drone’s full capabilities.
Your operations deserve proven expertise and tools.
Specifications
-
Aircraft
- Takeoff weight: 1150 g
- Max takeoff weight: 2000 g
- Size (L*W*H): 230*130*108mm (folded), 457*558*108mm (unfolded)
- Wheelbase: 397 mm
- Maximum service ceiling altitude: 7000 m
- Max ascent speed: 8 m/s (Ludicrous)
- Max descent speed: 4 m/s (Ludicrous)
- Max horizontal flight speed: 20 m/s (Ludicrous)
- Max flight distance (no wind): 22 km
- Max angular velocity: 120°/s
- Max tilt angle: 33° (Ludicrous)
- Max flight time (no wind): 38 min
- Max hovering time (no wind): 33 min
- Operating temperature range: -10℃ ~ 40℃
- Maximum resistance to wind: Level 8
- Operating frequency:
- 902-928MHz (FCC Only)
- 2.400-2.4835GHz
- 5.725-5.850GHz (non-Japan)
- 5.650-5.755GHz (Japan Only)
- Transmission power:
- 900M FCC/ ISED: ≤31dBm
- 2.4G FCC/ ISED: ≤32dBm, SRRC/CE/MIC/RCM: ≤20dBm
- 5.8G (non-Japan); 5.7G (Japan) FCC/ISED/SRRC/MIC: ≤33dBm, CE/ RCM: ≤14dBm
- Hovering accuracy:
- Vertical: ±0.1 m (visual positioning); ±0.5 m (GPS)
- Horizontal: ±0.3 m (visual positioning); ±1.5 m (GPS)
- GNSS: GPS/Beidou/Glonass/Gallieo
- Internal storage: 8GB
- SD storage: max. support 256GB (UHS-3 or Class 10)
-
Gimbal
- Gimbal: 3-axis stabilization
- Mechanical range: Tilt: -135° to +45°; Pan: -100° to +100°
- Controllable rotation range: Tilt: -90° to +30°; Pan: -90° to +90°
- Max control speed (Tilt): 300°/s
- Angular Vibration Range: ±0.005°
-
Remote controller and image transmission
- Operating frequency:
- 902-928MHz (FCC Only)
- 2.400-2.4835GHz
- 5.725-5.850GHz (non-Japan)
- 5.650-5.755GHz (Japan Only)
- Transmission power:
- FCC: ≤33dBm
- CE: ≤20dBm@2.4G, ≤14dBm@5.8G
- SRRC: ≤20dBm@2.4G, ≤33dBm@5.8G/5.7G
- Max Transmission Distance (unobstructed, free of interference):
- FCC: 15km
- CE: 8km
- Display screen: 2048x1536 60fps
- Battery: 5800mAh
- Operating time:
- ~3 hours (Max. Brightness)
- ~4.5 hours (50% Brightness)
- Charging time: 120 minutes
- Internal Storage: ROM 128GB
- Operating frequency:
-
Sensing system
- Sensing system type: Omnidirectional sensing system
- Forward:
- Accurate measurement range: 0.5-18 m
- Effective sensing speed: <12m/s
- Viewing angle: Horizontal: 60°, Vertical: 80°
- Backward:
- Accurate measurement range: 0.5-16 m
- Effective sensing speed: <12m/s
- Viewing angle: Horizontal: 60°, Vertical: 80°
- Upward:
- Accurate measurement range: 0.5-10 m
- Effective sensing speed: <5m/s
- Viewing angle: Horizontal: 65°, Vertical: 50°
- Downward:
- Accurate measurement range: 0.5-10 m
- Effective sensing speed: <5m/s
- Viewing angle: Horizontal: 100°, Vertical: 80°
- Left and right:
- Accurate measurement range: 0.5-10 m
- Effective sensing speed: <5m/s
- Viewing angle: Horizontal: 65°, Vertical: 50°
-
Thermal camera
- Sensor: Uncooled VOx Microbolometer
- Lens:
- FOV H33°V26°
- Focal length: 13mm
- Zoom: 1-16x
- Sensor resolution: 640*512
- Pixel size: 12µm
- Wavelength range: 8 - 14µm
- Temperature range:
- High gain mode: -20° to +150°
- Low gain mode: 0° to +550°
- Temperature measurement accuracy: ±3℃ or ±3% of reading (whichever is greater) at Environmental temperature -20℃~60℃
- Accurate temperature measurement distance: 2-20 meters
- Video resolution: 640x512@30fps
- Video format: MOV / MP4 (Support H.264/H.265)
- Camera resolution:
- Infrared mode: 640*512
- Picture-in-picture mode: 1920*1080, 1280*720
-
Visible light camera
- Sensor: 1/2 inch CMOS; 48M effective pixels
- Lens:
- FOV: 79°
- 35 mm format equivalent focal length: 25.6 mm
- Aperture: f/1.8
- Focus range: 0.5 m to infinity (with auto focus)
- ISO range:
- Video: 100-64000
- Photos: 100-6400
- Shutter speed:
- Photo mode: 1/8000 ~ 8s
- Other: 1/8000 ~ 1/frame rates
- Zoom: 1-16x (up to 4x lossless zoom)
- Photo mode: Single shot / Burst shooting / AEB / Time Lapse / HDR imaging
- Maximum photo size:
- 8192*6144 (4:3)
- 4096*3072 (4:3)
- 3840x2160 (16:9)
- Image Format: JPG (default) / DNG / JPG+DNG
- Video format: MOV / MP4
- Video resolution:
- 3840x2160P60/P50/P48/P30/P25/P24
- 2720x1528P60/P50/P48/P30/P25/P24
- 1920x1080P60/P50/P48/P30/P25/P24
- Max bitrate: 120Mbps
- Supported file system: FAT32/exFAT
-
Battery
- Capacity: 7100 mAh
- Voltage: 11.55 V
- Battery type: LiPo 3S
- Energy: 82 Wh
- Weight: 365 g
- Charging temperature range: 5℃ to 45℃
- Storage temperature and humidity: -10~30℃, 65±20%RH
- Recommended storage temperature: 22-28℃
- Max charging power: 93W
- Charging time: 90 minutes
-
Charger
- Input: 100-240 V, 50/60 Hz, 1.5A
- Output:
- 13.2 V ⎓ 5 A
- 5V⎓3A 9V⎓2A 12V⎓1.5A
- Voltage: 13.2±0.1V
- Rated power: 66W
-
Multi-Charger
- Voltage: 13.2 V
- Charging temperature range: 5℃ to 45℃
In the Box
- 1x EVO II 640T V3 aircraft
- 1x Remote Controller (sticks included)
- 2x Spare batteries
- 2x Spare propellers (pair)
- 1x Battery charger + power cable
- 1X Car charger
- 1x Multi-charger
- 1x RC charger
- 1x RC charging cable
- 1x RC lanyard
- 1x RC protective case
- 1x Spare control stick (pair)
- 1x Protector case
- 1x Manual (Packing List, Quick Guide, Disclaimer & Safety Instructions, Battery Safety Instructions, Car Charger Quick Guide, and Multi-Charger Quick Guide)
