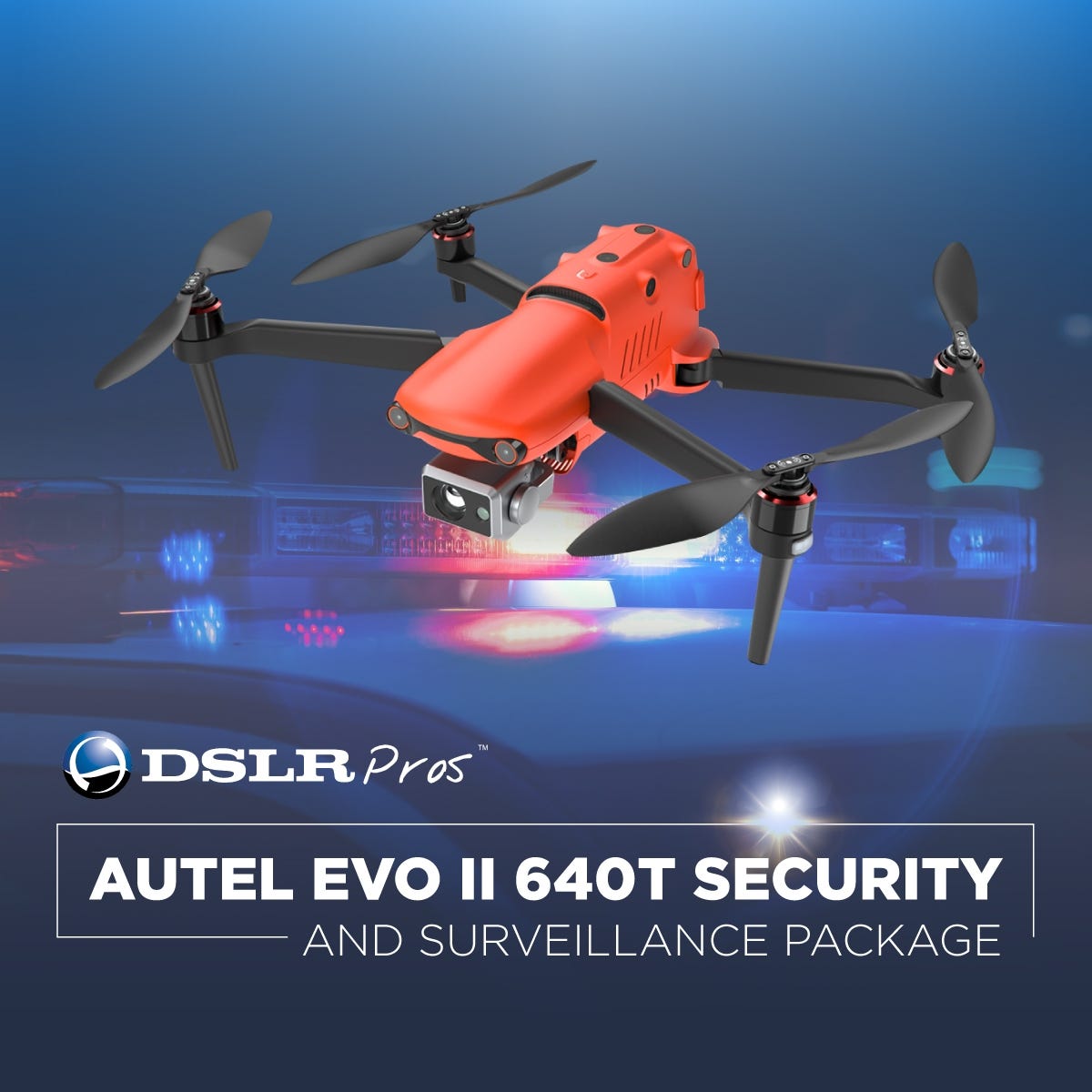

EVO II 640T: The Ultimate Drone for Security and Surveillance
When it comes to active security and surveillance, you need tools that combine reliability with cutting-edge technology. The Autel EVO II 640T delivers unmatched performance in a compact and durable package, enhancing situational awareness for public safety professionals.
Dual Cameras for Enhanced Vision
See every detail, day or night. The EVO II Dual 640T V3 features an advanced dual-camera system, enabling a wide range of mission capabilities with one device.
- Thermal Imaging Sensor: A 640x512 thermal camera with a 13mm lens and 16x digital zoom for detecting heat signatures in complete darkness.
- Visual Camera: A 50-MP RYYB sensor with Moonlight Algorithm 2.0 for detailed imaging in low-light conditions.
- Integrated Data: Merge thermal and visual data to make swift, informed decisions.
From locating individuals in no-light environments to crowd monitoring, these cameras deliver unparalleled clarity.
Advanced Imaging for Critical Operations
The Autel EVO II 640T’s advanced imaging capabilities set a new standard in surveillance technology.
- Thermal Precision: Enhanced image processing algorithms provide clearer thermal details.
- Low-Light Mastery: Detect and identify objects even in challenging visibility conditions.
- Rapid Target Focus: PDAF and CDAF technologies ensure accurate tracking of fast-moving objects.
Elevate your mission effectiveness with superior imaging technology.
Performance That Inspires Confidence
Operate with precision and safety. With its robust design and advanced flight capabilities, the EVO II 640T is ready for demanding missions.
- Extended Range: SkyLink 2.0 enables video transmission up to 15 kilometers.
- Long Flight Time: A powerful battery provides up to 40 minutes of operation.
- Safety First: Equipped with 19 sensors, including obstacle detection and real-time path planning.
- Anti-Interference: Tri-band communication and frequency hopping maintain secure and stable connections.
Rely on the EVO II 640T for secure, uninterrupted performance.
Intuitive Control for Effortless Command
Take charge with the smart controller SE. The EVO II 640T comes with a user-friendly controller that ensures seamless operation in any environment.
- HD Touchscreen: A 6.4-inch OLED display delivers crystal-clear visuals.
- Weather-Ready Design: IP43-rated for reliable performance in all conditions.
- Customizable Interface: An Android-based OS supports third-party apps for enhanced functionality.
- Strong Signal: Triple band frequency hopping ensures robust anti-interference capabilities.
Simplify your workflow with a controller designed for professionals.
Live Streaming and Real-Time Mapping
Enhance your missions with custom options. Take your surveillance operations further with additional tools tailored for success.
- Airdata Live Streaming: Share live video securely within your organization or with PIN-protected external access. No extra equipment needed.
- Pix4DReact Mapping: Create accurate 2D maps in minutes, helping emergency teams coordinate effectively.
- Collaboration: Share marked digital maps with team members to keep everyone informed.
Improve situational awareness and team collaboration with these advanced features.
Professional-Grade Solutions for Critical Missions
The DSLRPros EVO II 640T Security and Surveillance Package excels in a variety of professional scenarios:
- Public Safety: Monitor crowds, locate missing persons, and enhance situational awareness during emergencies.
- Law Enforcement: Conduct surveillance, track suspects, and ensure public safety with confidence.
- Critical Infrastructure: Inspect and secure essential facilities like power plants and communication towers.
- Emergency Response: Generate real-time maps to support disaster recovery and resource allocation.
- Event Security: Provide oversight and ensure safety at large public gatherings.
Trusted by professionals worldwide, this package is the ultimate solution for advanced security and surveillance.
Protect What Matters Most
The Autel EVO II 640T Security and Surveillance Package is designed to keep people and property safe.
Contact us today to learn more about how this powerful tool can elevate your operations.
Why Professionals Choose DSLRPros
At DSLRPros, we create robust drone solutions tailored for industry professionals.
- Specialized Tools: Built for agriculture, construction, and public safety.
- Sector Expertise: Addressing the challenges unique to your field.
- Top-Tier Performance: Exceptional drones like the DJI Phantom series.
- Secure Data Systems: Scalable, GDPR-compliant solutions you can trust.
- Complete Training: Equipping your team for optimal success.
Partner with us to achieve operational excellence.
Specifications
-
Aircraft
- Takeoff weight: 1150 g
- Max takeoff weight: 2000 g
- Size (L*W*H): 230*130*108mm (folded), 457*558*108mm (unfolded)
- Wheelbase: 397 mm
- Maximum service ceiling altitude: 7000 m
- Max ascent speed: 8 m/s (Ludicrous)
- Max descent speed: 4 m/s (Ludicrous)
- Max horizontal flight speed: 20 m/s (Ludicrous)
- Max flight distance (no wind): 22 km
- Max angular velocity: 120°/s
- Max tilt angle: 33° (Ludicrous)
- Max flight time (no wind): 38 min
- Max hovering time (no wind): 33 min
- Operating temperature range: -10℃ ~ 40℃
- Maximum resistance to wind: Level 8
- Operating frequency:
- 902-928MHz (FCC Only)
- 2.400-2.4835GHz
- 5.725-5.850GHz (non-Japan)
- 5.650-5.755GHz (Japan Only)
- Transmission power:
- 900M: FCC/ ISED ≤ 31dBm
- 2.4G: FCC/ ISED ≤ 32dBm, SRRC/CE/MIC/RCM ≤ 20dBm
- 5.8G (non-Japan) / 5.7G (Japan): FCC/ISED/SRRC/MIC ≤ 33dBm, CE/ RCM ≤ 14dBm
- Hovering accuracy:
- Vertical: ±0.1 m (visual positioning), ±0.5 m (GPS)
- Horizontal: ±0.3 m (visual positioning), ±1.5 m (GPS)
- GNSS: GPS/Beidou/Glonass/Gallieo
- Internal storage: 8GB
- SD storage: Max support 256GB (UHS-3 or Class 10)
-
Gimbal
- Type: 3-axis stabilization
- Mechanical range:
- Tilt: -135° to +45°
- Pan: -100° to +100°
- Controllable rotation range:
- Tilt: -90° to +30°
- Pan: -90° to +90°
- Max control speed (Tilt): 300°/s
- Angular Vibration Range: ±0.005°
-
Remote controller and image transmission
- Operating frequency:
- 902-928MHz (FCC Only)
- 2.400-2.4835GHz
- 5.725-5.850GHz (non-Japan)
- 5.650-5.755GHz (Japan Only)
- Transmission power:
- FCC: ≤33dBm
- CE: ≤20dBm @ 2.4G, ≤14dBm @ 5.8G
- SRRC: ≤20dBm @ 2.4G, ≤33dBm @ 5.8G/5.7G
- Max Transmission Distance (unobstructed, free of interference): FCC: 15km, CE: 8km
- Display screen: 2048x1536 60fps
- Battery: 5800mAh
- Operating time:
- ~3 hours (Max. Brightness)
- ~4.5 hours (50% Brightness)
- Charging time: 120 minutes
- Internal Storage: ROM 128GB
- Operating frequency:
-
Sensing system
- Type: Omnidirectional sensing system
- Forward:
- Measurement range: 0.5-18 m
- Effective sensing speed: <12m/s
- Viewing angle: Horizontal: 60°, Vertical: 80°
- Backward:
- Measurement range: 0.5-16 m
- Effective sensing speed: <12m/s
- Viewing angle: Horizontal: 60°, Vertical: 80°
- Upward:
- Measurement range: 0.5-10 m
- Effective sensing speed: <5m/s
- Viewing angle: Horizontal: 65°, Vertical: 50°
- Downward:
- Measurement range: 0.5-10 m
- Effective sensing speed: <5m/s
- Viewing angle: Horizontal: 100°, Vertical: 80°
- Left and right:
- Measurement range: 0.5-10 m
- Effective sensing speed: <5m/s
- Viewing angle: Horizontal: 65°, Vertical: 50°
-
Thermal camera
- Sensor: Uncooled VOx Microbolometer
- Lens:
- FOV H33°, V26°
- Focal length: 13mm
- Zoom: 1-16x
- Sensor resolution: 640*512
- Pixel size: 12µm
- Wavelength range: 8 - 14µm
- Temperature range:
- High gain mode: -20° to +150°
- Low gain mode: 0° to +550°
- Temperature measurement accuracy: ±3℃ or ±3% of reading
- Accurate temperature measurement distance: 2-20 meters
- Video resolution: 640x512@30fps
- Video format: MOV / MP4 (Support H.264/H.265)
- Camera resolution:
- Infrared mode: 640*512
- Picture-in-picture mode: 1920*1080, 1280*720
- Photo mode:
- Single shot
- Burst shooting: 3/5 frames (default 3)
- Time Lapse: JPG: 2s/5s/7s/10s/20s/30s/60s
- Photo format: JPG (with irg file)
-
Visible light camera
- Sensor: 1/2 inch CMOS; 48M effective pixels
- Lens:
- FOV: 79°
- 35 mm format equivalent focal length: 25.6 mm
- Aperture: f/1.8
- Focus range: 0.5 m to infinity (with auto focus)
- ISO range:
- Video: 100-64000
- Photos: 100-6400
- Shutter speed:
- Photo mode: 1/8000 ~ 8s
- Other: 1/8000 ~ 1/frame rates
- Zoom: 1-16x (up to 4x lossless zoom)
- Photo mode: Single shot / Burst shooting / AEB / Time Lapse / HDR imaging
- Maximum photo size:
- 8192*6144 (4:3)
- 4096*3072 (4:3)
- 3840x2160 (16:9)
- Image Format: JPG (default) / DNG / JPG+DNG
- Video format: MOV / MP4
- Video resolution:
- 3840x2160P60/P50/P48/P30/P25/P24
- 2720x1528P60/P50/P48/P30/P25/P24
- 1920x1080P60/P50/P48/P30/P25/P24
- Max bitrate: 120Mbps
- Supported file system: FAT32/exFAT
-
Battery
- Capacity: 7100 mAh
- Voltage: 11.55 V
- Battery type: LiPo 3S
- Energy: 82 Wh
- Weight: 365 g
- Charging temperature range: 5℃ to 45℃
- Storage temperature and humidity: -10~30℃, 65±20%RH
- Recommended storage temperature: 22-28℃
- Max charging power: 93W
- Charging time: 90 minutes
-
Charger
- Input: 100-240 V, 50/60 Hz, 1.5A
- Output:
- 13.2 V ⎓ 5 A
- 5V⎓3A 9V⎓2A 12V⎓1.5A
- Voltage: 13.2±0.1V
- Rated power: 66W
-
Multi-Charger
- Voltage: 13.2 V
- Charging temperature range: 5℃ to 45℃
In the Box
- 1x EVO II Dual 640T V3 aircraft
- 1x Remote Controller (sticks included)
- 2x Spare batteries
- 2x Spare propellers (pair)
- 1x Battery charger + power cable
- 1X Car charger
- 1x Multi-charger
- 1x RC charger
- 1x RC charging cable
- 1x RC lanyard
- 1x RC protective case
- 1x Spare control stick (pair)
- 1x Protector case
- 1x Manual (Packing List, Quick Guide, Disclaimer & Safety Instructions, Battery Safety Instructions, Car Charger Quick Guide, and Multi-Charger Quick Guide)
