DSLRPros Matrice 30T Urban Scout Package

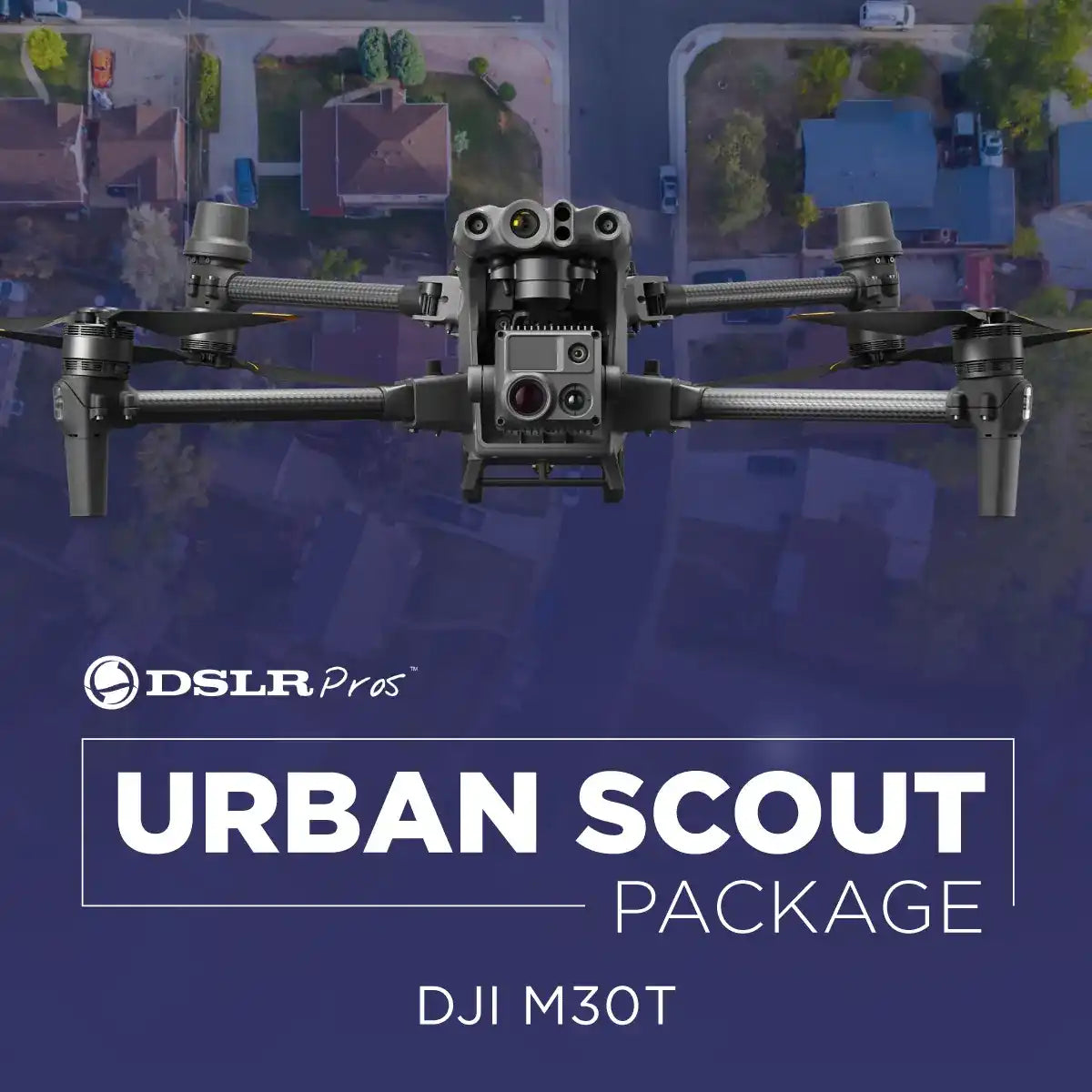

Empower Emergency Missions With the DJI Matrice 30T Urban Scout Package

When seconds matter, the DJI Matrice 30T delivers unmatched performance, precision, and reliability. Engineered for public safety teams and emergency responders, this rugged, compact drone provides advanced tools for real-time situational awareness, even in the toughest environments.

Navigate Any Environment With Confidence

Take command of any mission with the DJI Matrice 30T’s robust design and cutting-edge technology.

• All-Weather Reliability: IP55-rated for exceptional durability, the M30T handles rain, snow, sleet, and scorching heat with ease.
• Wide Temperature Range: Operates seamlessly in temperatures from -20°C to 50°C, making it perfect for extreme climates.
• Compact and Portable: Its foldable design allows for quick deployment and easy transportation, ensuring it’s always ready when needed.
• Triple-Camera System: Access wide-angle, zoom, and thermal cameras with a laser rangefinder, providing critical aerial intelligence in any situation.

From rugged mountain terrains to urban landscapes, the M30T is your reliable tool for safe and efficient aerial operations.

Enhance Public Safety Operations

Stay steps ahead with the DJI Matrice 30T’s advanced capabilities, making it an essential tool for public safety professionals.

• Search and Rescue: Navigate tight spaces and reach inaccessible areas to locate missing persons quickly and efficiently.
• Law Enforcement: Conduct surveillance and monitor high-risk situations without drawing unnecessary attention, thanks to its quiet operation and compact size.
• Disaster Response: Provide real-time data for disaster assessment, enabling first responders to execute safer and faster recovery plans.
• Night and Day Operations: Integrated thermal imaging ensures visibility in low-light conditions, improving situational awareness during critical missions.

With the M30T, you gain the ability to act fast, stay informed, and save lives when it matters most.

Built for Safety and Redundancy

Unpredictable scenarios demand technology that’s always one step ahead. The DJI Matrice 30T is designed with industry-leading safety features for uninterrupted operations.

• Advanced Redundancy Systems: Dual flight control sensors, signal redundancies, and dual intelligent batteries ensure continued operation in any situation.
• Obstacle Avoidance: Multi-directional sensors and advanced algorithms allow the M30T to detect and avoid obstacles, reducing flight risks.
• Emergency Capabilities: Features like three-propeller emergency landing and ADS-B receivers provide additional layers of safety in critical missions.
• Hot-Swap Batteries: Replace batteries without powering down the drone, ensuring minimal downtime during extended operations.

Designed to withstand the unexpected, the M30T ensures missions stay on track no matter the challenge.

Take Control With the DJI RC Plus

The DJI RC Plus enhances mission precision with a high-performance, intuitive controller that empowers pilots in critical situations.

• 7-Inch HD Touchscreen: Navigate effortlessly with clear visuals, even in direct sunlight.
• Weatherproof Design: With an IP54 rating, the RC Plus withstands harsh conditions and operates smoothly from -20°C to 50°C.
• User-Friendly Controls: Designed for ease of use, the RC Plus enables fast takeoff, navigation, and mission execution.
• Reliable Connectivity: Stay connected with seamless signal transmission, ensuring real-time communication and control.

From takeoff to landing, the DJI RC Plus gives you the tools you need for precise and efficient drone operations.

Real-World Solutions for Public Safety Professionals

The DJI Matrice 30T Urban Scout Package delivers mission-critical solutions for industries that demand accuracy and reliability:

• Search and Rescue: Quickly scan large, hard-to-reach areas with thermal imaging to locate missing individuals.
• Law Enforcement: Monitor crowds, high-risk events, or ongoing investigations while maintaining a safe distance.
• Firefighting: Identify hotspots and assess fire movement using thermal cameras to improve safety and response times.
• Disaster Management: Map affected zones and provide real-time situational data for coordinated recovery efforts.
• Critical Infrastructure Monitoring: Inspect bridges, power lines, and other assets efficiently without disrupting operations.

Elevate Your Public Safety Missions

With its advanced imaging systems, robust safety features, and all-weather performance, the DJI Matrice 30T Urban Scout Package is an essential tool for modern public safety operations. Be ready for every mission and make a difference when it matters most.

Ready to take your operations to the next level? Contact DSLRPros today and unlock the power of the DJI Matrice 30T.

Why Choose DSLRPros?

At DSLRPros, we deliver advanced drone solutions tailored for professional needs.

• Customized Offerings: Drones and tools designed for industries like public safety and construction.
• Specialized Expertise: Solutions crafted for your unique operational challenges.
• Top-Tier Equipment: Featuring high-performance drones like DJI Phantom.
• Data Security Focus: Scalable, compliant systems for reliable data management.
• Comprehensive Support: Training to ensure you get the most from your investment.

We’re here to help you achieve operational success with confidence.

Specifications

Aircraft

• Dimensions (unfolded, excl. propellers): 470×585×215 mm (L×W×H)
• Dimensions (folded): 365×215×195 mm (L×W×H)
• Diagonal Wheelbase: 668 mm
• Weight (incl. two batteries): 3770 ± 10 g
• Max Takeoff Weight: 4000 g
• Operation Frequency[1]: 2.4000-2.4835 GHz; 5.725-5.850 GHz
• Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) | 5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
• Hovering Accuracy (windless or breezy): Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) | Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
• RTK Positioning Accuracy (fixed RTK enabled): 1 cm+1 ppm (horizontal) | 1.5 cm+1 ppm (vertical)
• Max Angular Velocity: Pitch: 150°/sec.; Yaw: 100°/sec.
• Max Tilt Angle: 35° (N-mode and Forward Vision System enabled: 25°)
• Max Ascent/Descent Speed: 6 m/s, 5 m/s
• Max Tilt Descent Speed: 7 m/s
• Max Horizontal Speed: 23 m/s
• Max Service Ceiling Above Sea Level (without other payload): 5,000 m (with 1671 propellers) | 7,000 m (with 1676 propellers)
• Max Wind Resistance: 15 m/s | 12 m/s during taking off and landing
• Max Hover Time [2]: 36 min
• Max Flight Time[2]: 41 min
• Motor Model: 3511
• Propeller Model: 1671 | 1676 High Altitude (not included)
• Ingress Protection Rating[3]: IP55
• GNSS: GPS+Galileo+BeiDou+GLONASS(GLONASS is supported only when RTK module is enabled)
• Operating Temperature: -20° to 50° C (-4° to 122° F)

Gimbal

•  Angular Vibration Range: ±0.01°
• Controllable Range: Pan: ±90° | Tilt: -120° to +45°
• Mechanical Range: Pan: ±105° | Tilt: -135° to +60° | Roll: ±45°

Zoom Camera

• Sensor: 1/2" CMOS, Effective pixels: 48M
• Lens: Focal length: 21-75 mm (equivalent: 113-405 mm) | Aperture: f/2.8-f/4.2 | Focus: 5 m to ∞

Wide Camera

• Sensor: 1/2" CMOS, Effective pixels: 12M
• Lens: DFOV: 84° | Focal length: 4.5 mm (equivalent: 24 mm) | Aperture: f/2.8 | Focus: 1 m to ∞

Thermal Camera

• Thermal Imager: Uncooled VOx Microbolometer
• Lens: DFOV: 64° | Focal length: 9.1 mm (equivalent: 40 mm) | Aperture: f/1.0 | Focus: 5 m to ∞
• Infrared Temperature Measurement Accuracy[4]: ±2°C or ±2% (using the larger value)

FPV Camera

• Resolution: 1920×1080
• DFOV: 161°
• Frame Rate: 30 fps

Laser Module

• Wavelength: 905 nm
• Max Laser Power: 3.5 mW
• Single Pulse Width: 6 ns
• Measurement Accuracy: ± (0.2 m + D×0.15%)D is the distance to a vertical surface
• Measuring Range: 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)

Vision Systems

• Obstacle Sensing Range: Forward: 0.6-38 m | Upward/Downward/Backward/Sideward: 0.5-33 m
• FOV: 65° (H), 50° (V)
• Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing Systems

• Obstacle Sensing Range: 0.1 to 10 m
• FOV: 30°
• Operating Environment: Large, diffuse, and reflective obstacles (reflectivity >10%)

TB30 Intelligent Flight Battery

• Capacity: 5880 mAh
• Voltage: 26.1 V
• Battery Type: LiPo 6S
• Energy: 131.6 Wh
• Net Weight: Approx. 685 g
• Operating Temperature: -20° to 50° C (-4° to 122° F)
• Storage Temperature: 20° to 30° C (68° to 86° F)
• Charging Temperature: -20° to 40° C (-4° to 104° F)(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
• Chemical System: LiNiMnCoO2

Auxiliary Lights

• Effective Illumination Distance: 5 m
• Illumination Type: 60 Hz, solid glow

Remote Controller

• Screen: 7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
• Internal Battery: Type: Li-ion (6500 mAh @ 7.2 V) | Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V) | Charge Time: 2 hours | Chemical System: LiNiCoAIO2
• External Battery (WB37 Intelligent Battery): Capacity: 4920 mAh | Voltage: 7.6 V | Battery Type: Li-ion | Energy: 37.39 Wh | Chemical System: LiCoO2
• Operating Time[5]: Internal Battery: Approx. 3 hours 18 minInternal Battery + External Battery: Approx. 6 hours
• Ingress Protection Rating[3]: IP54
• GNSS: GPS+Galileo+BeiDou
• Operating Temperature: -20° to 50° C (-4° to 122° F)

O3 Enterprise

• Operating Frequency[1]: 2.4000-2.4835 GHz, 5.725-5.850 GHz
• Max Transmission Distance (unobstructed, free of interference): 2.4000-2.4835 GHz: 15 km (FCC); 8 km (CE/SRRC/MIC)
• Max Transmission Distance (with interference): Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC) | Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/ MIC) | Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/ SRRC/MIC)
• Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/ SRRC/MIC) | 5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Wi-Fi

• Protocol: Wi-Fi 6
• Operating Frequency[1]: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
• Transmitter Power (EIRP): 2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC) | 5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC) | 5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)

Bluetooth

• Protocol: Bluetooth 5.1
• Operating Frequency: 2.4000-2.4835 GHz
• Transmitter Power (EIRP): <10 dBm

BS30 Intelligent Battery Station

• Dimensions: 353×267×148 mm
• Net Weight: 3.95 kg
• Compatible Battery Type: TB30 Intelligent Flight Battery | WB37 Intelligent Battery
• Input: 100-240 VAC, 50/60 Hz
• Output: TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously) | WB37 Intelligent Battery: 8.7 V, 6 A
• Output Power: 525 W
• USB-C port: Max. output power of 65 W
• USB-A port: Max. output power of 10 W (5 V, 2 A)
• Power Consumption (when not charging battery): < 8 W
• Output Power (when warming up battery): Approx. 30 W
• Operating Temperature: -20° to 40° C (-4° to 104° F)
• Ingress Protection Rating[3]: IP55 (with the cover closed properly)
• Charging Time[6]: Approx. 30 min (charging two TB30 batteries from 20%-90%) | Approx. 50 min (charging two TB30 batteries from 0%-100%)
• Protection Features: Anti-Backflow Protection | Short Circuit Protection | Over Voltage Protection | Over Current Protection | Temperature Protection

In the Box

• 1x DJI Matrice 30T with TB30 & DJI Care Basic
• 1x Loudspeaker Spotlight 2-in-1 Payload for DJI Matrice 30 Drone
• 1x PSDK Mounting Bracket
• 1x DJI CrystalSky/Cendence - WB37 Intelligent Battery (4920mAh)
• 2x DJI Matrice 30 Series (Part 09) 1671 Propeller
• 1x Drone Landing Pad
