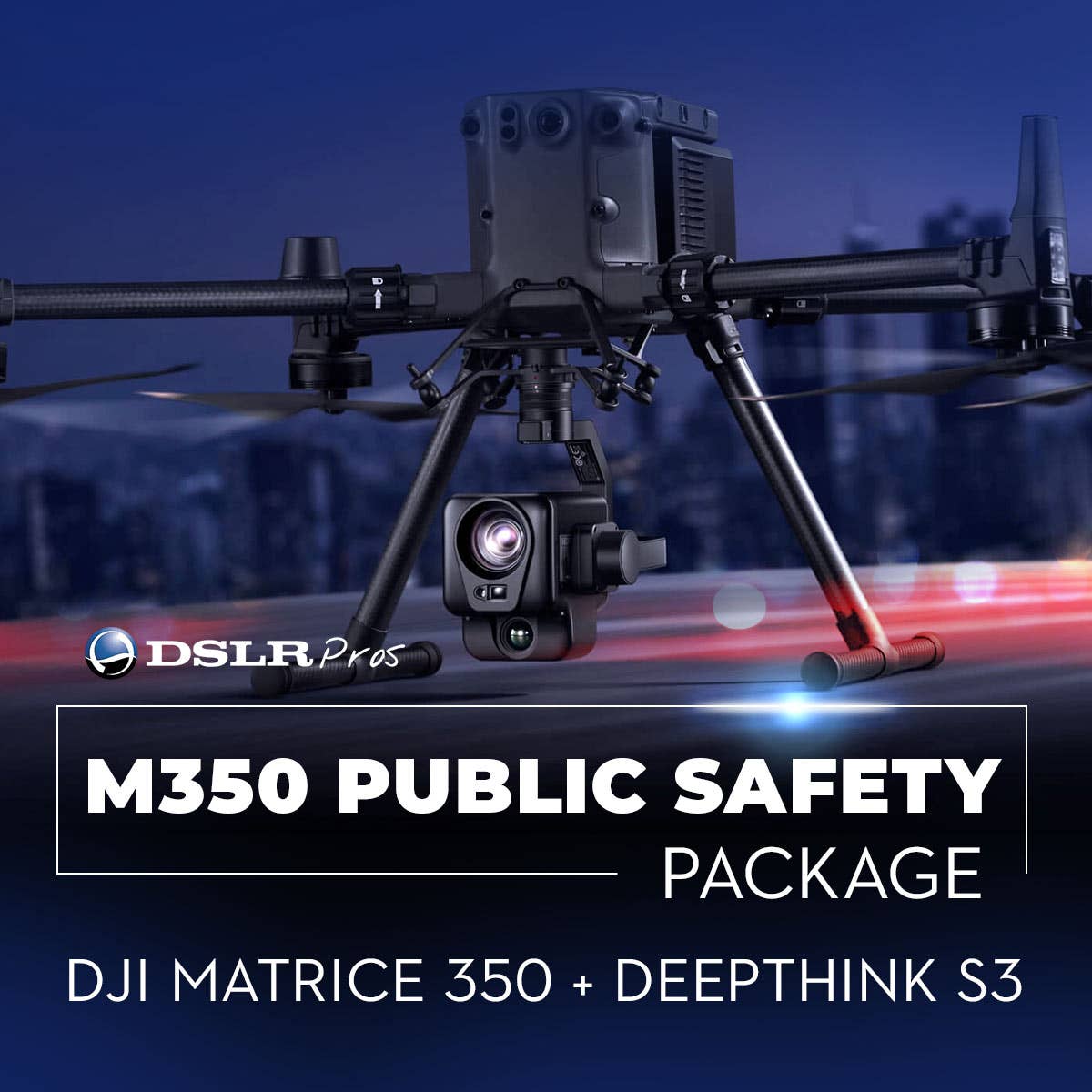

DSLRPros Matrice 350 RTK + Deepthink S3 Public Safety Package

Transform Emergency Response With  DSLRPros Matrice 350 RTK + Deepthink S3 Public Safety Package

The DSLRPros Matrice 350 RTK + Deepthink S3 Public Safety Package offers an advanced and reliable aerial solution designed specifically for critical public safety missions such as search and rescue, firefighting, and disaster response. This exclusive package integrates the industry-leading DJI Matrice 350 RTK drone with the cutting-edge Deepthink S3 Tri-Sensor Night Vision Thermal Imaging Camera, providing unparalleled performance in the most challenging environments.

For users seeking alternatives to the Zenmuse H30T, which has been difficult to import into the U.S., the Deepthink S3 offers comparable features and capabilities, ensuring you don't miss out on critical operations.

Matrice 350 RTK: Unmatched Flight Performance

At the heart of this public safety bundle is the DJI Matrice 350 RTK, a next-generation drone platform engineered for demanding aerial operations. Equipped with powerful propulsion, the ability to carry multiple payloads, and an extended flight time of up to 55 minutes, the Matrice 350 RTK is built for resilience and precision. Whether you're coordinating disaster response, inspecting infrastructure, or conducting search-and-rescue missions, the Matrice 350 RTK's impressive 20 km transmission range and 6-directional obstacle sensing ensure safe, reliable operation even in harsh conditions.

Power Your Missions With the Matrice 350 RTK

• 55-minute flight time for extended missions
• DJI O3 Enterprise Transmission for up to 20 km HD live feed
• Multi-payload support with up to 2.7 kg capacity
• Six-directional sensing and obstacle avoidance
• Night vision FPV camera for enhanced visibility in low-light situations
• Rugged, weather-resistant DJI RC Plus with a high-brightness 7-inch screen for intuitive control in adverse conditions

Deepthink S3: The Superior Imaging Solution

The Deepthink S3 is an innovative tri-sensor payload that combines night vision, thermal imaging, and a laser rangefinder into one compact unit. Tailored for ultra-low light scenarios, the S3 provides full-color HD imaging even in near-total darkness with its 0.0001 lux Super Starlight CMOS sensor, making it ideal for search and rescue operations at night or in heavily forested areas.

With 30X optical zoom and 160X integrated zoom, public safety teams can capture detailed imagery from a distance, while the thermal camera with a resolution of 640x512 ensures reliable heat detection for firefighting and disaster management. The laser rangefinder offers precise distance measurements of up to 1500 meters, providing critical data in fast-moving situations.

Unlock Advanced Capabilities With the Deepthink S3

• 0.0001 Lux full-color HD imaging for night vision
• 30X optical and 160X integrated zoom for long-range observation
• Thermal imaging with 640x512 resolution and dual temperature ranges (-20°C to 150°C, 0°C to 550°C)
• Laser rangefinder with ±1m accuracy for real-time distance and altitude measurement
• Low wind resistance design for stable performance in extreme environments

Best Alternative to the Zenmuse H30T

Due to ongoing geopolitical tensions, particularly between the U.S. and China, operators of DJI Matrice drones have faced difficulties accessing certain payloads, notably the Zenmuse H30T. As this DJI payload encounters challenges entering the U.S. market, the Deepthink S3 Tri-Sensor emerges as a strong alternative. With superior night vision capabilities in ultra-low light conditions (0.0001 lux), a high-definition 4MP sensor, thermal imaging, and laser rangefinding, the S3 is well-suited for public safety operations. While the Zenmuse H30T excels with its higher thermal resolution and broader temperature range, the S3's versatility and tailored features make it a leading choice for nighttime missions and extreme environments. Click here for a more detailed side-by-side comparison of the Deepthink S3 and Zenmuse H30T.

Empowering Public Safety Operations

The DSLRPros Matrice 350 RTK + Deepthink S3 Package is a game-changing solution for public safety professionals, offering unmatched performance in critical missions. From search and rescue to disaster management, this powerful combination provides the tools needed to act quickly, safely, and effectively.

Search and Rescue Missions

• Identify missing persons in challenging environments with thermal imaging and full-color night vision.
• Cover large areas quickly using advanced zoom capabilities and laser rangefinding to pinpoint locations accurately.
• Operate confidently in low-visibility conditions, ensuring no detail is missed during critical rescue efforts.

Disaster Response and Management

• Assess damage and locate survivors with real-time aerial thermal data and high-resolution imaging.
• Navigate hazardous areas without endangering personnel, enabling rapid, informed decision-making.
• Deploy drones in extreme weather conditions with confidence, thanks to the Matrice 350 RTK’s rugged design and reliability.

Tactical Law Enforcement Operations

• Support surveillance operations discreetly with quiet flight and advanced zoom capabilities for enhanced situational awareness.
• Monitor large events, track suspects, and assess high-risk environments with live data feeds to ground teams.
• Improve response times and safety with actionable insights in real time.

Firefighting Support

• Detect and monitor hotspots in wildfire zones or urban fires with precise thermal imaging.
• Assist firefighters with real-time mapping to strategize containment and resource allocation efficiently.
• Enhance visibility in smoke-filled environments, ensuring better team coordination and safety.

The DSLRPros Matrice 350 RTK + Deepthink S3 Public Safety Package is designed to meet the critical demands of first responders. Whether it’s navigating through smoke-filled environments, detecting hotspots in wildfire zones, or pinpointing missing persons in remote areas, this package offers the perfect combination of robust aerial capability and cutting-edge imaging technology. With multi-payload capacity, precise sensing, and detailed imaging, your team will be equipped to respond faster and make life-saving decisions with confidence.

Why Choose the Matrice 350 RTK + Deepthink S3 Package?

• All-in-one aerial solution for public safety missions
• Enhanced operational efficiency with intuitive controls and long-range transmission
• High-performance thermal and night vision capabilities for critical situations
• Seamless integration with DJI’s Matrice 350 RTK and existing systems

Maximize your team’s efficiency and safety in the field with the DSLRPros Matrice 350 RTK + Deepthink S3 Public Safety Package. When lives are on the line, trust the industry’s best to deliver when it matters most.

The DSLRPros Advantage

At DSLRPros, we provide drones and support to elevate your operations.

• Industry-Specific Solutions: Focused tools for agriculture, public safety, and more.
• Pro-Level Expertise: Thoughtfully designed to tackle sector challenges.
• Next-Gen Gear: Performance-leading drones like DJI Phantom.
• Reliable Data Systems: Security-first tools built for compliance.
• Training You Can Trust: We prepare you for operational success.

Your goals become achievable with our solutions.

Specifications

Aircraft

• Dimensions (unfolded, without propellers): 810×670×430 mm (L×W×H)
• Dimensions (folded, with propellers): 430×420×430 mm (L×W×H)
• Diagonal Wheelbase: 895 mm
• Weight (with single downward gimbal): Without batteries: Approx. 3.77 kg; With two TB65 batteries: Approx. 6.47 kg
• Single Gimbal Damper’s Max Payload: 960 g
• Max Takeoff Weight: 9.2 kg
• Operating Frequency: 2.4000-2.4835 GHz; 5.150-5.250 GHz (CE: 5.170-5.250 GHz); 5.725-5.850 GHz
• Transmitter Power (EIRP):
  • 2.4000-2.4835 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
  • 5.150-5.250 GHz (CE: 5.170-5.250 GHz): < 23 dBm (CE)
  • 5.725-5.850 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)
• Hovering Accuracy (with moderate or no wind):
  • Vertical: ±0.1 m (with vision positioning), ±0.5 m (with GNSS positioning), ±0.1 m (with RTK positioning)
  • Horizontal: ±0.3 m (with vision positioning), ±1.5 m (with GNSS positioning), ±0.1 m (with RTK positioning)
• RTK Positioning Accuracy (RTK FIX): 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
• Max Angular Velocity: Pitch: 300°/s; Yaw: 100°/s
• Max Pitch Angle: 30°; When in N mode and with the forward vision system enabled: 25°
• Max Ascent Speed: 6 m/s
• Max Descent Speed (vertical): 5 m/s
• Max Tilted Descent Speed: 7 m/s
• Max Horizontal Speed: 23 m/s
• Max Flight Altitude: 5000 m (with 2110s propellers and takeoff weight ≤ 7.4 kg); 7000 m (with 2112 High-Altitude Low-Noise Propellers and takeoff weight ≤ 7.2 kg)
• Max Wind Speed Resistance: 12 m/s
• Max Flight Time: 55 minutes
• Supported DJI Gimbals: Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, Zenmuse L1
• Supported Gimbal Configurations: Single downward gimbal, Single upward gimbal, Dual downward gimbals, Single downward gimbal + single upward gimbal, Dual downward gimbals + single upward gimbal
• Ingress Protection Rating: IP55
• Global Navigation Satellite System: GPS + GLONASS + BeiDou + Galileo
• Operating Temperature: -20° to 50° C (-4° to 122° F)

Remote Controller

• Screen: 7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits
• Weight: Approx. 1.25 kg (without WB37 battery); Approx. 1.42 kg (with WB37 battery)
• Global Navigation Satellite System: GPS + Galileo + BeiDou
• Built-in Battery: Li-ion (6500 mAh@7.2 V); Charging Type: Use battery station or USB-C fast charger with max power of 65 W (max voltage of 20 V); Charging Time: 2 hours; Chemical System: LiNiCoAlO2
• External Battery (WB37 Intelligent Battery): Capacity: 4920 mAh; Voltage: 7.6 V; Type: Li-ion; Energy: 37.39 Wh; Chemical System: LiCoO2
• Ingress Protection Rating: IP54
• Operating Time: Built-in Battery: approx. 3.3 hours; Built-in Battery + External Battery: approx. 6 hours
• Operating Temperature: -20° to 50° C (-4° to 122° F)
• Operating Frequency: 2.4000-2.4835 GHz; 5.725-5.850 GHz
• Transmitter Power (EIRP):
  • 2.4000-2.4835 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
  • 5.725-5.850 GHz: < 33 dBm (FCC), < 14 dBm (CE), < 23 dBm (SRRC)
• Wi-Fi Protocol: Wi-Fi 6
• Wi-Fi Operating Frequency: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
• Bluetooth Protocol: Bluetooth 5.1
• Bluetooth Operating Frequency: 2.4000-2.4835 GHz

Video Transmission

• Video Transmission System: DJI O3 Enterprise Transmission
• Antenna: 4 video transmission antennas, 2T4R
• Max Transmission Distance (unobstructed, free of interference): 20 km (FCC), 8 km (CE/SRRC/MIC)
• Max Transmission Distance (with interference):
  • Low Interference and Obstructed by Buildings: approx. 0-0.5 km
  • Low Interference and Obstructed by Trees: approx. 0.5-3 km
  • Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km
  • Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km
  • Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km

Vision System

• Obstacle Sensing Range: Forward/Backward/Left/Right: 0.7-40 m; Upward/Downward: 0.6-30 m
• FOV: Forward/Backward/Downward: 65° (horizontal), 50° (vertical); Left/Right/Upward: 75° (horizontal), 60° (vertical)
• Operating Environment: Surfaces with discernible patterns and adequate lighting (lux > 15)

Infrared Sensing System

• Obstacle Sensing Range: 0.1-8 m
• FOV: 30° (±15°)
• Operating Environment: Large, diffuse, and reflective obstacles (reflectivity > 10%)

LED Auxiliary Light

• Effective Illumination Distance: 5 m
• Illumination Type: 60 Hz, solid glow

FPV Camera

• Resolution: 1080p
• FOV: 142°
• Frame Rate: 30fps

Intelligent Flight Battery

• Model: TB65
• Capacity: 5880 mAh
• Voltage: 44.76 V
• Type: Li-ion
• Energy: 263.2 Wh
• Weight: Approx. 1.35 kg
• Operating Temperature: -20° to 50° C (-4° to 122° F)
• Ideal Storage Temperature: 22° to 30° C (71.6° to 86° F)
• Charging Temperature: -20° to 40° C (-4° to 104° F)
• Charging Time: With 220V power supply: approx. 60 minutes to fully charge two batteries; with 110V power supply: approx. 70 minutes

Intelligent Battery Station

• Dimensions: 580×358×254 mm (L×W×H)
• Net Weight: Approx. 8.98 kg
• Compatible Stored Items: Eight TB65 Intelligent Flight Batteries; Four WB37 Intelligent Batteries
• Input Voltage: 100-120 VAC, 50-60 Hz; 220-240 VAC, 50-60 Hz
• Max Input Power: 1070 W
• Output Power: 100-120 V: 750 W; 220-240 V: 992 W
• Operating Temperature: -20° to 40° C (-4° to 104° F)

In the Box

• 1x DJI Matrice 350 RTK
• Choice of either DJI Care Enterprise Basic, Basic 2 Year, or Plus
• 1x Deepthink S3 Tri-Sensor Night Vision Thermal Imaging Camera

We can tailor this public safety package to meet your specific requirements. Please reach out to our sales team for further details.
