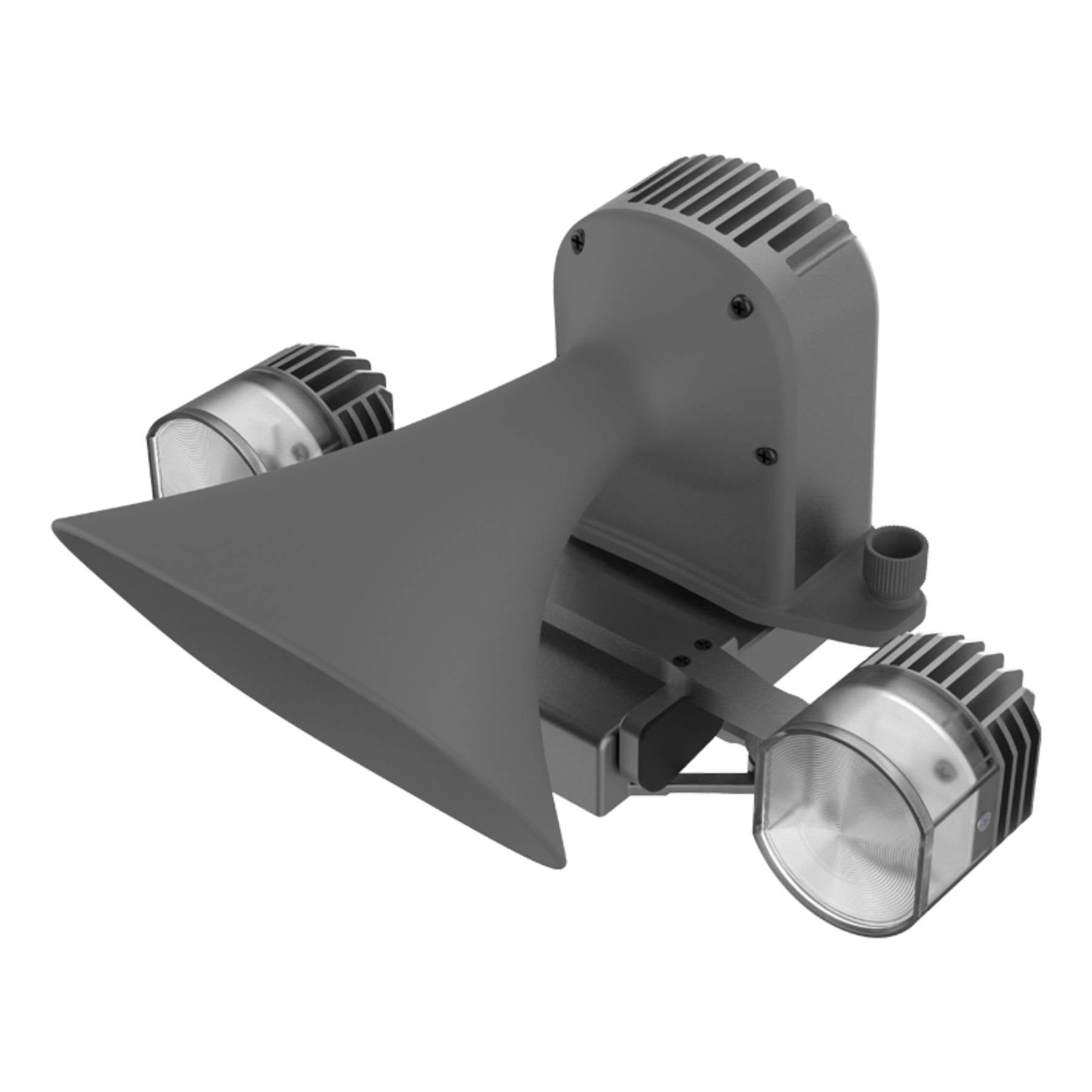

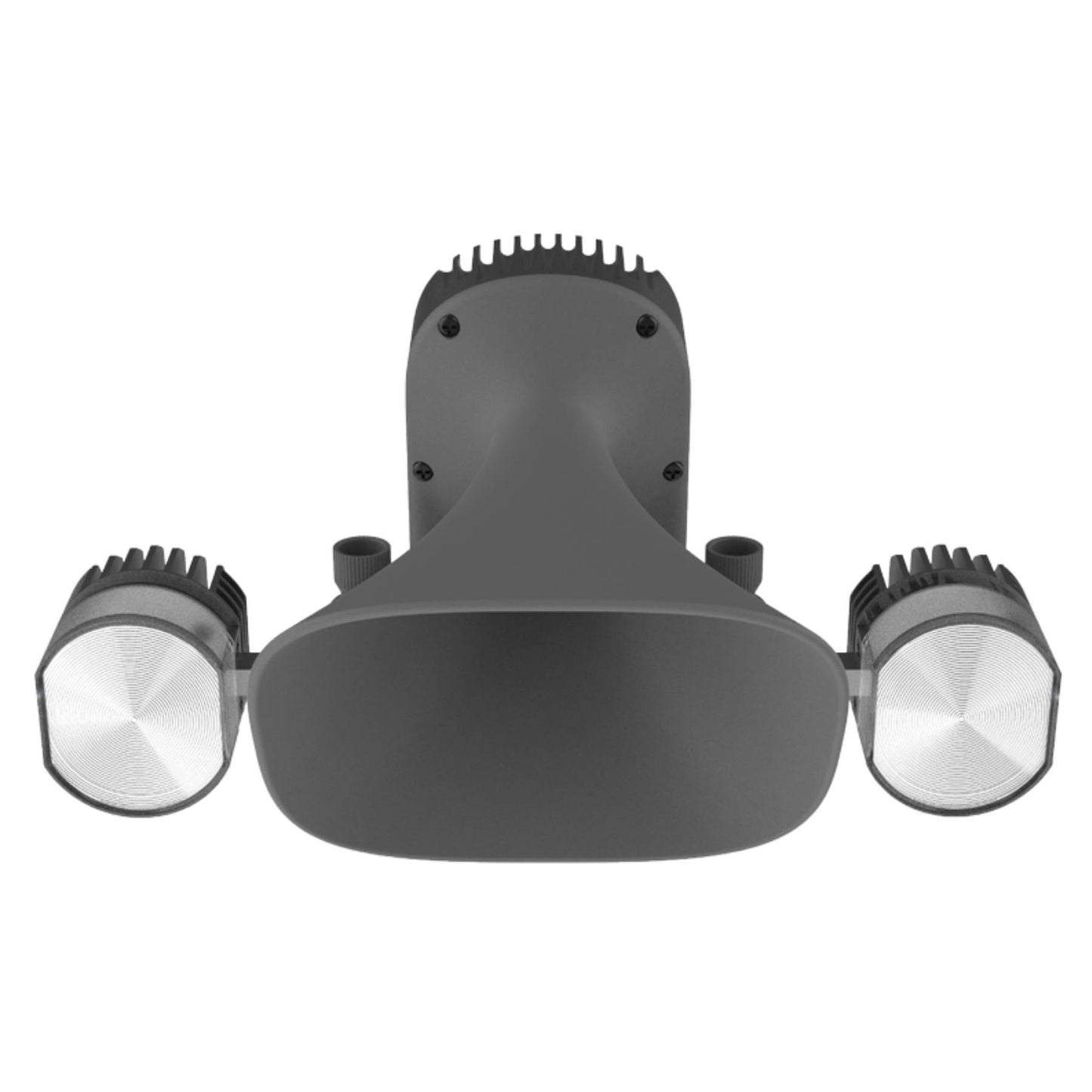

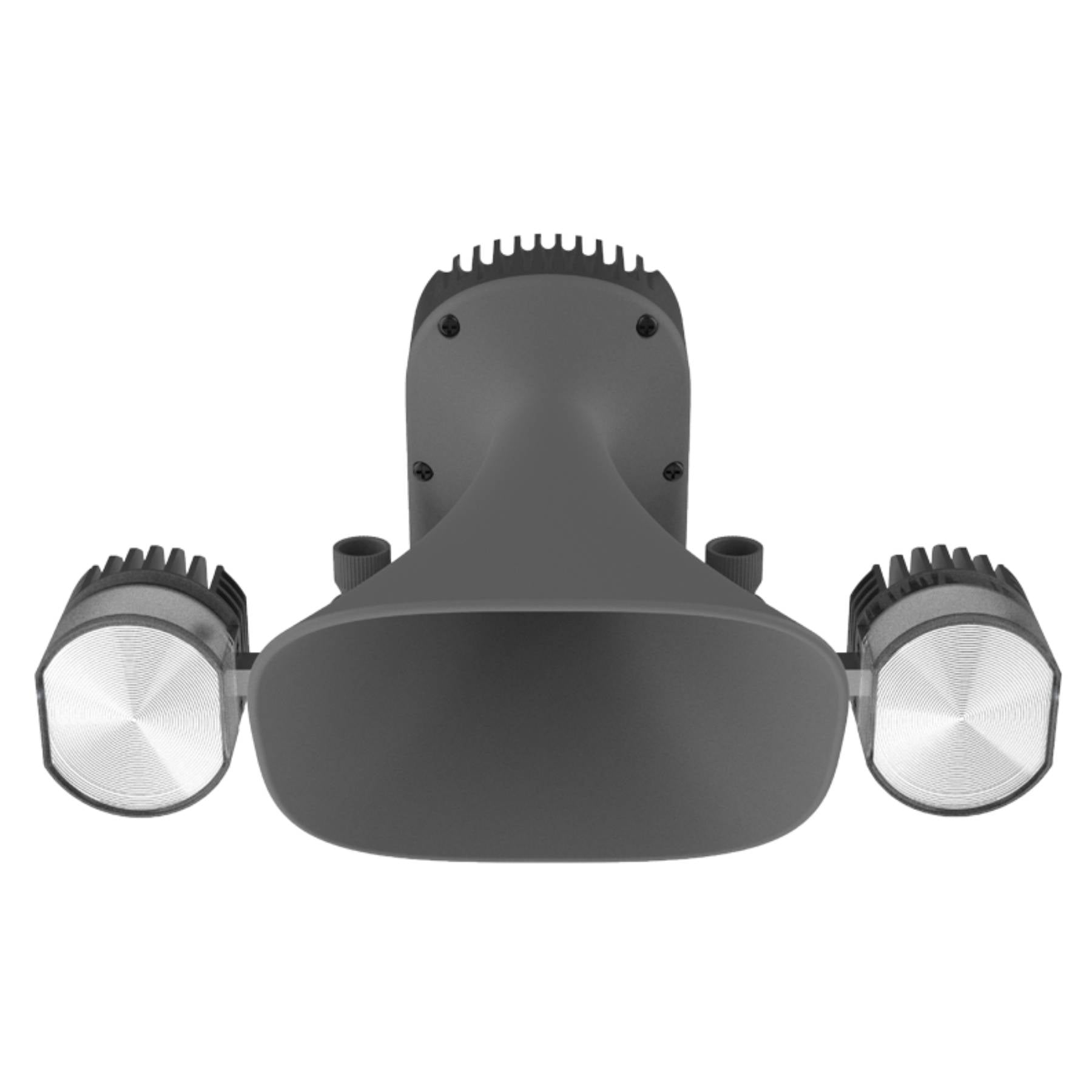

Experience Precision with the JZ M3D Quick Search Kit for DJI M3D/M3TD
Unlock new possibilities with the JZ M3D Quick Search Kit, a cutting-edge, compact "three-in-one" solution tailored for professionals in demanding fields. Combining a high-powered spotlight, robust loudspeaker, and dynamic strobe lighting, this payload is engineered to deliver unmatched performance, even in confined spaces. Compatible with DJI Mavic 3 Enterprise, DJI Matrice M30 series, and DJI Dock 2, the kit ensures seamless integration for efficient operations. Whether it’s illuminating vast areas, broadcasting clear messages, or enhancing visibility with customizable strobe effects, the JZ M3D Quick Search Kit elevates operational efficiency and reliability.
Key Features and Benefits
- Unmatched Audio Clarity: Achieve clear sound transmission up to 300 meters with the 120dB loudspeaker, perfect for delivering critical messages.
- Advanced Spotlight Performance: Custom laser light beads enhance central brightness by 30%, with a long-focus beam reaching 200 meters for precise illumination.
- Dynamic Strobe Effects: Eight customizable RGB LEDs provide vibrant, visible strobes with a 90° wide-angle flash detectable from up to 1 kilometer.
- Seamless Integration: Fully compatible with DJI Pilot 2 and DJI FlightHub 2, offering remote operation and efficient workflow.
Applications
- Urban Monitoring: Enhance public safety with clear audio announcements and nighttime lighting.
- River and Traffic Management: Improve inspection efficiency and safety through advanced lighting and sound communication.
- Industrial Inspections: Identify hazards and respond swiftly in challenging environments.
Why Choose DSLRPros?
At DSLRPros, we’re not just a retailer—we’re your partner in UAV innovation. With years of experience serving professionals in diverse industries, we understand the unique challenges you face. That’s why we provide:
- Expert Guidance: Our team of specialists ensures you find the perfect solutions for your specific needs.
- Dedicated Support: From setup to operation, we’re here to assist at every step, ensuring your success.
- Quality Assurance: We only stock products from trusted manufacturers, so you can invest with confidence. When you choose DSLRPros, you’re choosing reliability, expertise, and a commitment to your operational excellence.
Specifications
JZ M3D Quick Search Kit
- Electrical interface: DJI SDK
- Controls: DJI Pilot 2, DJI FlightHub 2
- Installation: Quick-release screw
- Size (T30S+H1E): 138 x 116 x 78 mm
- Weight (T30S+H1E): 190g
- Ingress Protection: IP54
- Supported models: DJI DOCK 2, DJI M3D, DJI M3TD
- Maximum power consumption: >=30W
Lighting
- Lumens: 3400 Lumens
- Lighting angle (T30S Light): 14°
- Controllable Angle (T30S Light): 0° to -90° controllable pan tilt
- Gimbal & Camera Linkage (T30S Light): Yes
- Flash Colors: 5 Colors set - Red, Green, Blue, Yellow, White
- Lighting distance: 50m, 100m, 150m
- Lighting area: 113m², 471㎡, 1063㎡
- Central illuminance: 30Lux, 7Lux, 3Lux
Broadcasting
- Broadcasting distance (H1E Speaker): ＞300m
- Max Sound pressure (H1E Speaker): 120db
- Internal Storage: 32GB
- Configurations: Can be used as either a Speaker & Spotlight System or separately
In The Box
- 1x T30S Spotlight
- 1x H1E Speaker
- 1x Protective Carrying Case
- 1x Warranty Card
