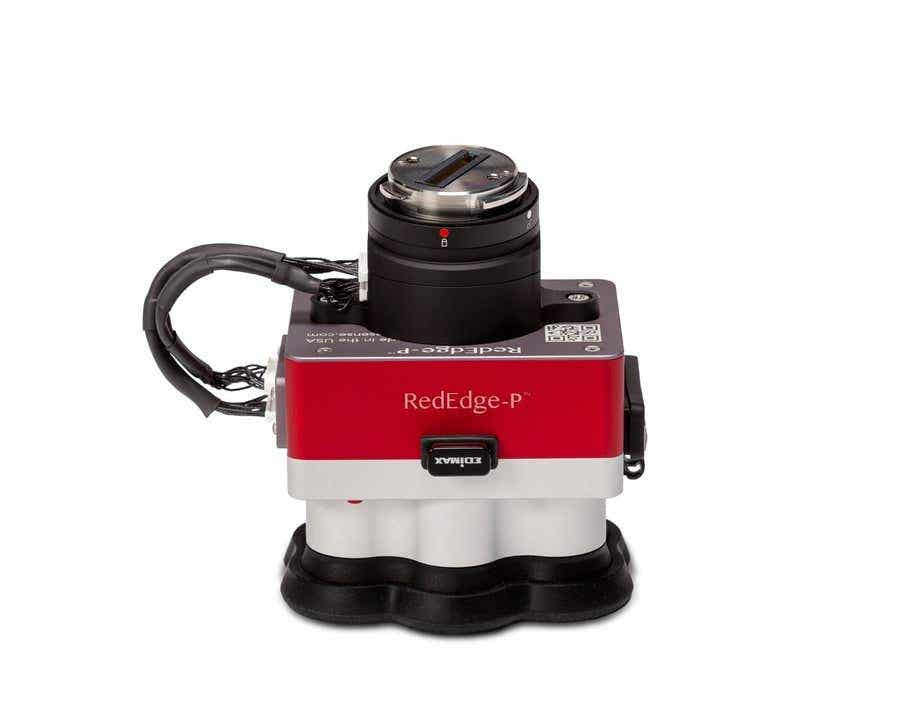

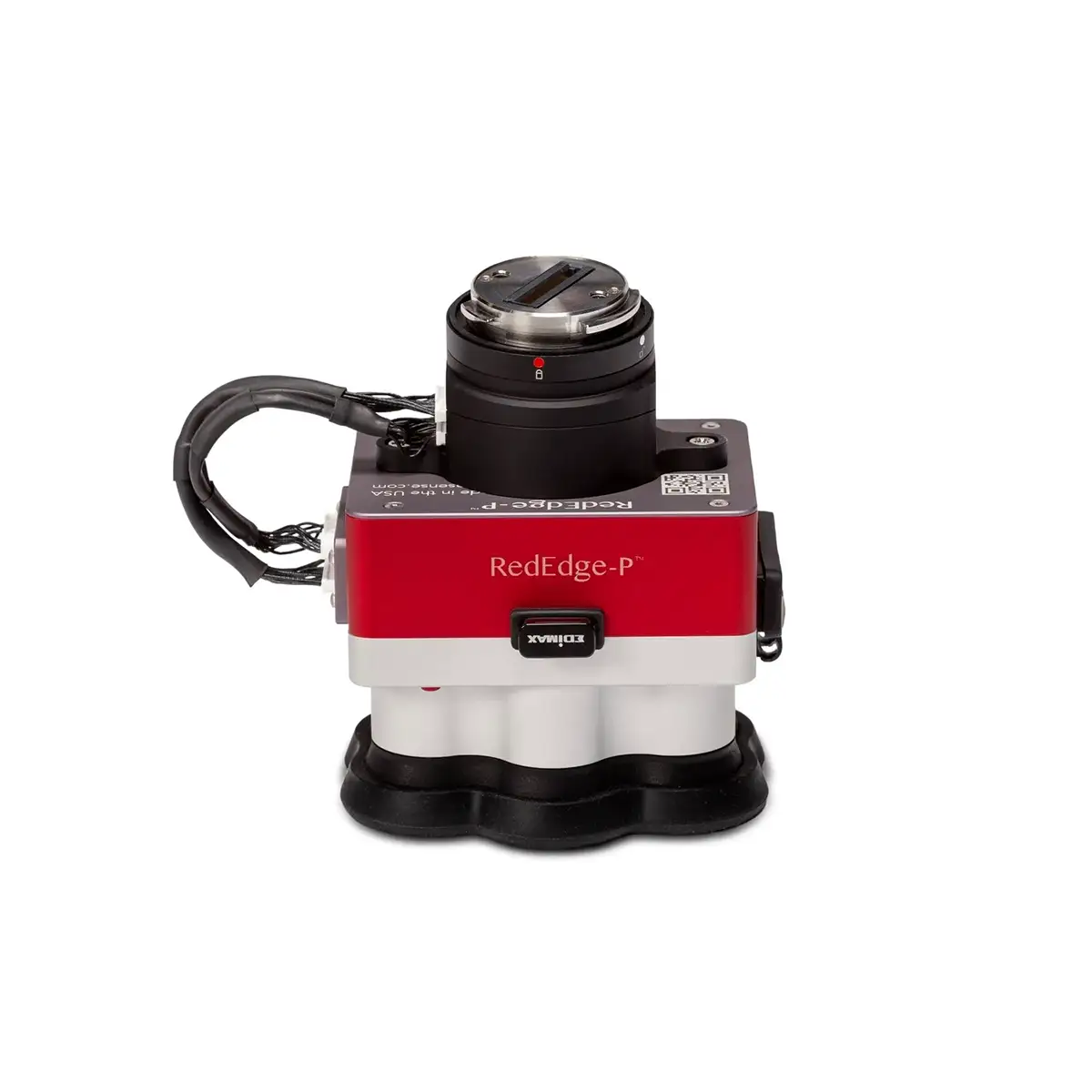

MicaSense RedEdge-P with DJI Skyport for Advanced Multispectral Imaging
The MicaSense RedEdge-P is a high-performance multispectral imaging sensor designed to capture calibrated, high-resolution RGB and multispectral images. Integrated seamlessly with DJI SkyPort-compatible drones, it delivers precision and efficiency across various professional applications.
Superior Imaging Capabilities

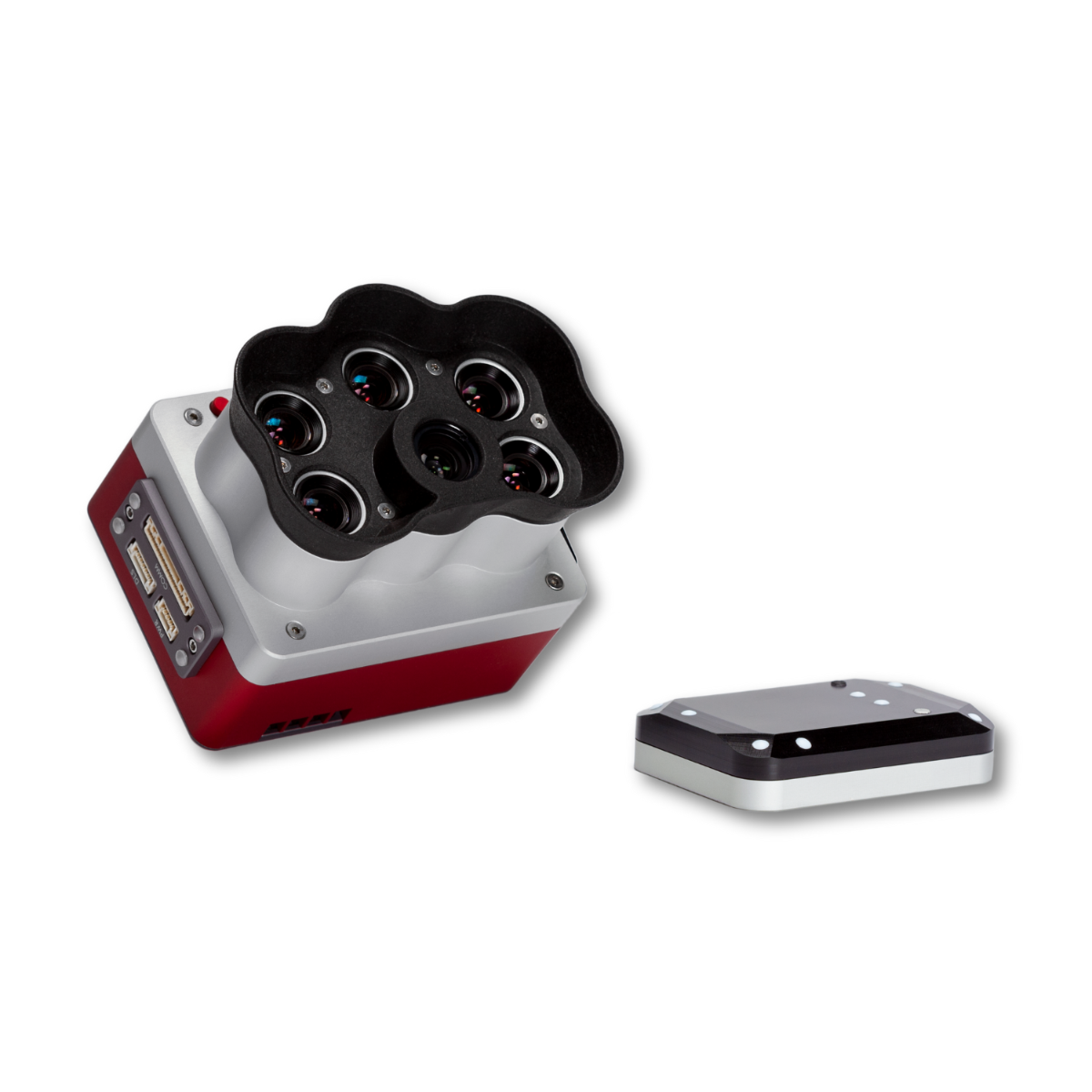

- Captures five multispectral bands (blue, green, red, red edge, near-infrared) and a high-resolution panchromatic band for pan-sharpened outputs.
- Achieves 2-cm GSD at 60m altitude for detailed imagery.
- Equipped with a global shutter for distortion-free images, even during high-speed flights.
Optimized Drone Integration
- Fully compatible with DJI SkyPort-enabled drones, including:
- Matrice 300
- Matrice 200/210 V1 & V2 series
- Supports RTK functionality when used with the Matrice 300 for precise georeferencing.
Adaptable and Durable Design
- Lightweight and compact at 315g, including DLS 2 and Wi-Fi module.
- Built to withstand tough environmental conditions.
- Flexible power options—draw power from the drone's main battery or a separate rechargeable source.
Smart Connectivity and Customization
- Built-in Wi-Fi and Ethernet for real-time image transfer and data download.
- Advanced Downwelling Light Sensor (DLS 2) adjusts for lighting changes by measuring ambient light and sun angle.
- API support (HTTP and MAVLink protocol) for customized integrations and workflows.
Multiple Applications
The MicaSense RedEdge-P enables detailed insights for a variety of industries:
- Precision Agriculture: Monitor crop health, detect plant stress, and improve resource management to maximize yields.
- Forestry Management: Track forest health, tree growth, and detect deforestation or pest infestations.
- Environmental Conservation: Map habitats, track biodiversity, and assess environmental changes for conservation efforts.
- Mining and Geology: Detect mineral signatures, analyze soil composition, and monitor excavation activities.
- Urban Planning: Assess green spaces, monitor urban expansion, and evaluate the environmental impact of development.
- Archaeology: Identify hidden ruins or artifacts by detecting subtle vegetation and soil differences.
- Disaster Response: Capture aerial imagery for damage assessment and prioritize recovery efforts.
The MicaSense RedEdge-P with DJI Skyport combines advanced technology and seamless integration to empower professionals with high-resolution, actionable data across diverse fields.
Specifications
-
External Power: 7.0 V - 25.2 V
-
Power Input: 5.5/7.0/10W (Standby, average, peak)
-
Sensor Resolution: 1456 x 1088 (1.6MP per MS band) | 2464 x 2056 (5.1MP panchromatic band)
-
Spectral Bands: Blue, green, red, red edge, near-IR (global shutter, narrowband)
-
Wavelength (nm): Blue (475nm center, 32nm bandwidth) | Green (560nm center, 27nm bandwidth) | Red (668nm center, 14nm bandwidth) | Red edge (717nm center, 12nm bandwidth) | Near-IR (842nm center, 57nm bandwidth)
-
RGB Color Output: 5.1MP (Global shutter, aligned with all bands)
-
Ground Sample Distance (GSD): 7.7cm per pixel (per MS band) at -400' (120m) AGL | 3.98cm per pixel (panchromatic band) at -400' (120m) AGL
-
Capture Rate: Up to 3 captures per second raw DNG
-
Interfaces: 3 Configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CF Express for storage
-
Field of View: 50 Degree HFOV x 38 Degree VFOV (MS) | 44 Degree HFOV x 38 Degree VFOV (PAN)
-
Storage: CFexpress Card
-
Dimensions: 3.5 x 2.8 x 2.6" (8.9 x 7 x 6.7cm)
-
Weight: 12.8 oz (363g)
In the Box
- RedEdge-P sensor
- DLS 2 with embedded GPS
- Calibrated Reflectance Panel (CRP 2)
- USB WiFi dongle
- Lens cover
- Necessary integration cables

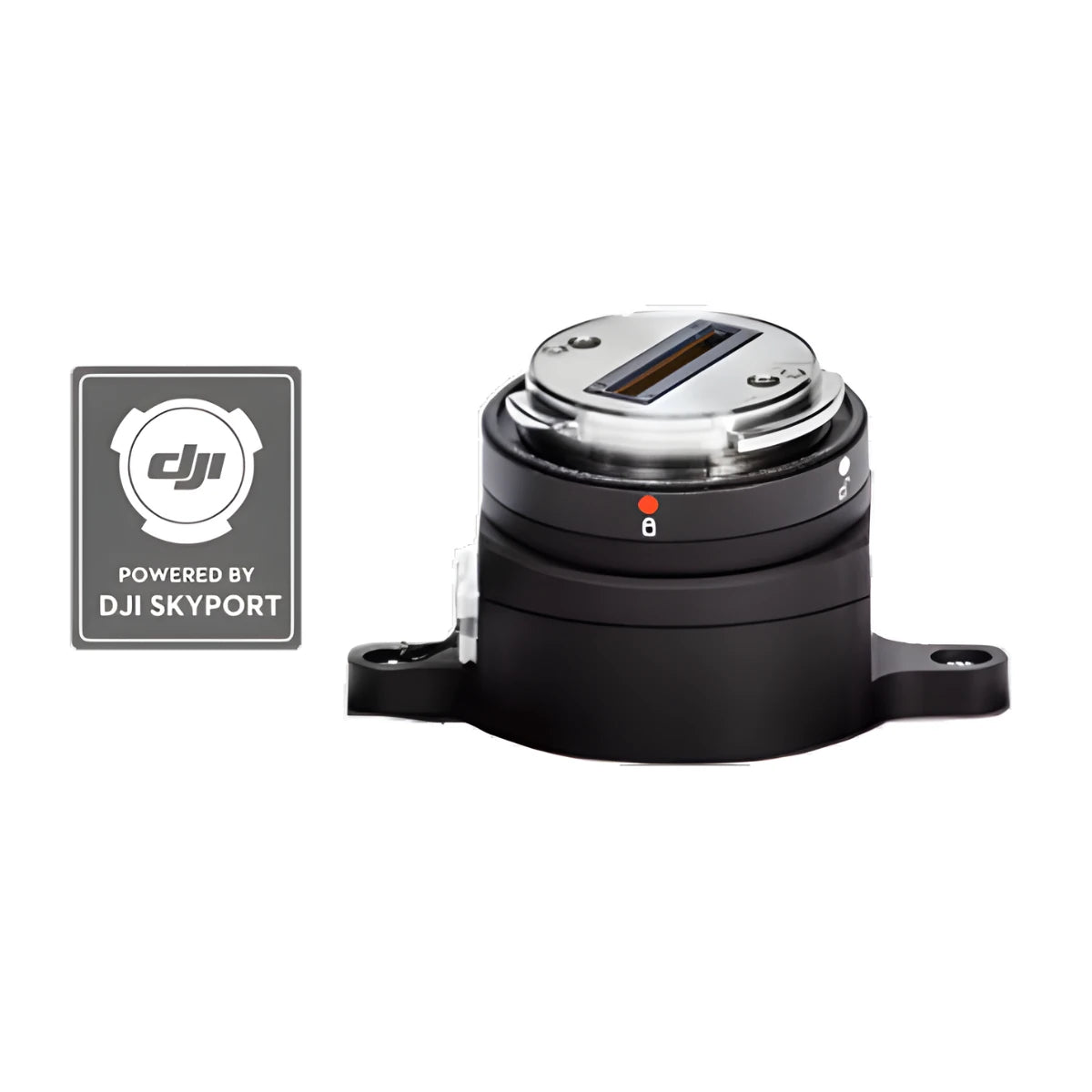

- DJI Skyport for M300
- CFexpress card
- CFexpress card reader
- Hard Carrying Case
- Quick StartGuide
