Advanced Drone Solutions for First Responders

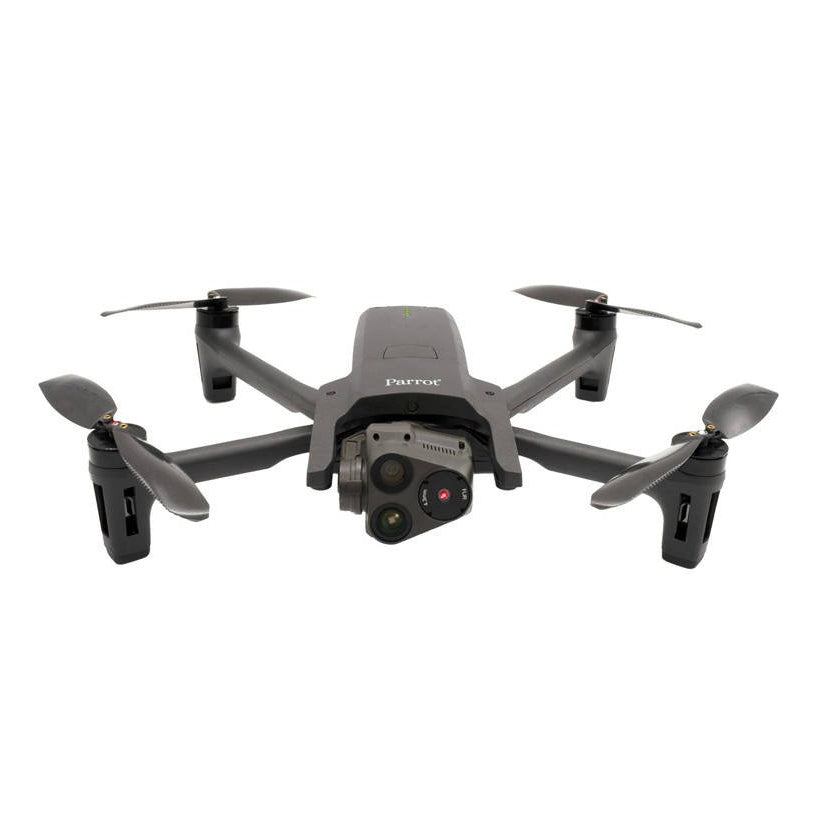

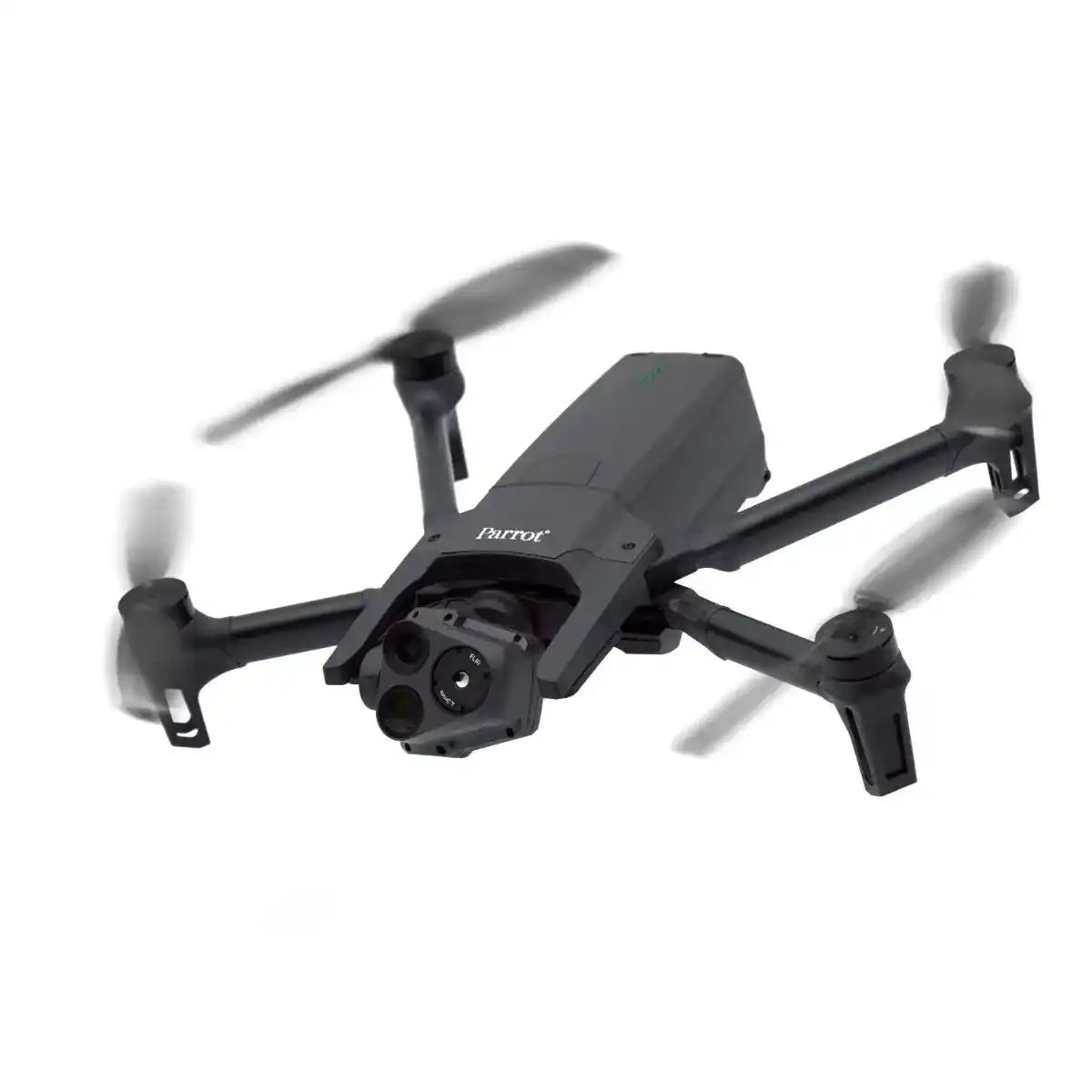

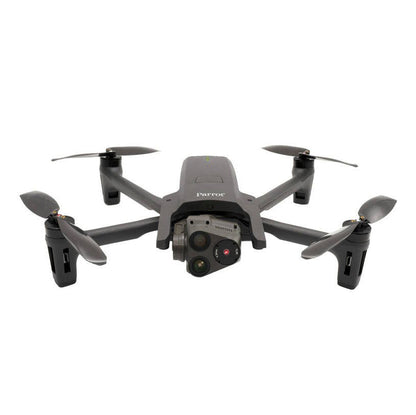

The Parrot ANAFI USA is a high-performance drone purpose-built for first responders, security teams, and search and rescue (SAR) operations. Manufactured in the U.S. with input from the U.S. Army, it delivers cutting-edge capabilities with 32x optical zoom, dual 21-megapixel cameras, and a FLIR Boson thermal camera, making it an essential tool for critical missions.
High-Performance Imaging and Rugged Design
Precision Imaging for Critical Insights
The ANAFI USA’s 32x zoom captures intricate details from up to 3 miles away, while the thermal camera detects heat signatures from a distance of 2 km. These capabilities empower operators to identify hot spots, locate victims, and assess situations with clarity.
Built for Tough Environments
Weighing just 500 g, this compact drone includes advanced image stabilization for clear visuals in challenging scenarios. Its IP53 rating ensures resistance to rain and dust, while its low noise level of 79 dB makes it one of the quietest in its category. A flight time of 32 minutes and USB-C charging extend its operational flexibility.
Fast Deployment
With a 55-second setup time, the ANAFI USA enables rapid response, ensuring professionals are ready to act when every second counts.
Tailored for Professional Missions
Data Security You Can Trust
The ANAFI USA prioritizes secure operations, featuring encrypted SD card storage, WPA2 Wi-Fi connections, and GDPR-compliant firmware. With signed firmware to prevent tampering, operators can confidently safeguard mission data.
Mission-Ready Software Integration
The FreeFlight 6 app supports streamlined data sharing with no automatic data transfer unless approved. Integrating with Pix4Dreact, the drone converts captured photos into detailed 2D maps, enhancing mission planning efficiency.
Flexible and Open Ecosystem
Equipped with an open-source SDK, the ANAFI USA supports a broad range of professional tools, allowing for customization and expanded operational use.
Empowering Critical Missions
Search and Rescue Operations
Locate victims in difficult-to-reach areas using heat signatures from the thermal camera, even in dense environments or at night.
Firefighting
Detect hot spots and assess fire progression from a safe distance, providing actionable data to guide firefighting strategies and enhance safety.
Security and Surveillance
Conduct discreet surveillance with the ANAFI USA’s low noise level and long-range zoom, ensuring thorough area monitoring without detection.
Emergency Response Mapping
Generate real-time 2D maps using Pix4Dreact, supporting immediate situational awareness for critical decision-making during emergencies.
With its powerful imaging capabilities, secure data management, and durable design, the Parrot ANAFI USA is an indispensable tool for professionals dedicated to protecting lives and ensuring safety.
Why Choose DSLRPros as Your Drone Partner?
At DSLRPros, we provide premium drone systems built to meet unique industry needs.
- Customized Solutions: Purpose-built tools for agriculture, safety, and beyond.
- Sector Expertise: Solutions tailored to overcome specific challenges.
- Exceptional Equipment: Top-tier drones like the DJI Phantom for peak performance.
- Data Confidence: GDPR-compliant systems that ensure reliability.
- Professional Training: Guidance to make the most of your investment.
We help you achieve measurable success.
Specifications
Drone
- Size (folded): 252 × 104 × 84 mm
- Size (unfolded): 282 × 373 × 82 mm
- Size (unfolded on MIL version): 282 × 373 × 192 mm
- Mass: 500 g / 1.10 lb
- Maximum Take-off Mass (MTOM): 644 g / 1.42 lb
- Maximum Flight Time: 32 minutes (30 minutes on MIL version)
- Maximum Horizontal Speed: 14.7 m/s
- Maximum Ascent Speed: 4 m/s (6 m/s on unlocked SE, GOV, and MIL versions)
- Maximum Descent Speed: 3 m/s
- Maximum Wind Resistance: 14.7 m/s
- Maximum Propeller Speed: 11,000 rpm
- Sound Power Level at 1 m (3 ft): 84 dB
- Service Ceiling: 5,000 m above MSL (Mean Sea Level)
- User Defined Geofencing: Supported
- IP Rating: IP53 (dust and rain resistant)
- Operating Temperature: -33 °F (-36 °C) to +122 °F (+50 °C)
- No Take-off Temperature Limitations: Supported
Security
- Zero Data Shared by Default: Supported
- SD Card Encryption: AES-XTS encryption with a 512 bits key
- Network Connections: WPA2 AES CCMP encrypted
- Firmware: Digitally signed
Sensors
- Satellite Navigation: GPS, GLONASS, & GALILEO
- Barometer and Magnetometer: Supported
- Vertical Camera and Ultra-sonar: Supported
- IMU: 2 × 6-axis
- Accelerometers: 2 × 3-axis
- Gyroscopes: 2 × 3-axis
EO Image Chain
- Sensors: 2 sensors (1/2.4")
- Digital Zoom: 32x
- Electronic Shutter Speed: 1 s to 1/10,000 s
- ISO Range: 100 - 3200
- Video Resolution: 4K/FHD/HD
- Video Format: MP4 (H.264)
-
Photo Resolutions:
- Wide: 21 MP (84° FOV)
- Rectilinear: up to 16 MP (up to 75.5° FOV)
- Photo Formats: JPEG, DNG (Digital NeGative RAW)
IR Image Chain
- Sensor: FLIR BOSON
- Digital Zoom: 32x
- Temperature Range: -40°C to +150°C
- Thermal Sensitivity: ≤60 mK
- Measured IR Wavelength Range: 7.5 to 13 micrometers
- Video Resolution: 1280 × 720 px
- Video Format: MP4 (H.264)
- Framerate: 9 fps
- Photo Resolution: 320 × 256 px
- Photo Format: JPEG
Image Stabilization
- Stabilized Gimbal: 3-camera IR/EO
- Hybrid Stabilization: 3-axis
- Mechanical Stabilization: 2-axis roll/pitch
- Electronic (EIS): 3-axis pitch/roll/yaw
- Controllable Gimbal Tilt Range: -90° to +90°
Fast-Charging Smart Battery
- Type: High density LiPo (3 × 4.4 V cells)
- Capacity: 3,400 mAh
- Battery Life: 32 minutes
- Charging Port: USB-C
- Charging Time: Charges in 2 h with a USB-PD (Power Delivery) charger
- Mass: 195 g / 0.43 lb
- Voltage: 11.55 V
- Maximum Charging Power: 30 W
Parrot Skycontroller 4
- Size (without device): 238 × 147 × 55 mm
- Maximum Size: 315 × 147 × 55 mm
- Mass: 610 g / 1.34 lb
- Transmission System: Wi-Fi 802.11 a/b/g/n
- Operating Frequencies: 2.4 GHz, UNII-1 & UNII-3
- Direct Video Stream Resolution: 720p
- Battery Capacity: 3,350 mAh 7.2 V
- Charging Time: 3 h 45 min
- Battery Life: Between 3 h and 6 h (varies according to the device used and its state of charge)
- Compatibility: Compatible with all smartphones and tablets up to 8"
- Ports: 2 × USB-C (charging and connecting), micro-HDMI
- IP Rating: IP5X (dust resistant)
Parrot Skycontroller USA
- Size: 313 × 208 × 72 mm
- Size (with antenna unfolded on MIL version): 313 × 208 × 173 mm
- Mass: GOV version: 1.14 kg / 2.51 lbs, MIL version: 1.16 kg / 2.56 lbs
- NDAA & TAA Compliant: Supported
- Transmission System: Wi-Fi 802.11 a/b/g/n (+ additional Microhard radio on MIL version)
- Operating Frequencies: 2.4 GHz, UNII-1 & UNII-3
- Direct Video Stream Resolution: 720p
- Battery Capacity: 5,000 mAh 7.2 V
- Charging Time: 2 h
- Battery Life: 4 h 30 min
- Based On: 8" Samsung Galaxy Tab A
- Ports: USB-C, USB-A, Ethernet
- IP Rating: IP53 (dust and rain resistant)
ANAFI USA MIL
- Radio: Microhard pDDL1800 1.8 GHz
- TOGA (Tactical Open Government Architecture) Compatible: Supported
- Foldable Antennas: Supported
- AES 256 Encryption: Supported
- Additional Mass: 20 g on ANAFI USA; 20 g on the Skycontroller USA
Ecosystem
- Open Source SDK for Developers: Supported
- Extensive Partner Program: Supported
In the Box
- 1x Parrot ANAFI USA Aircraft
- 2x Extra Batteries
- 1x Multi-Port USB Charger
- 4x USB-A/USB-C Cables
- 1x Additional Propeller Set
- 1x Long-Range Controller
- 1x Tablet Holder
- 1x Hard Case
