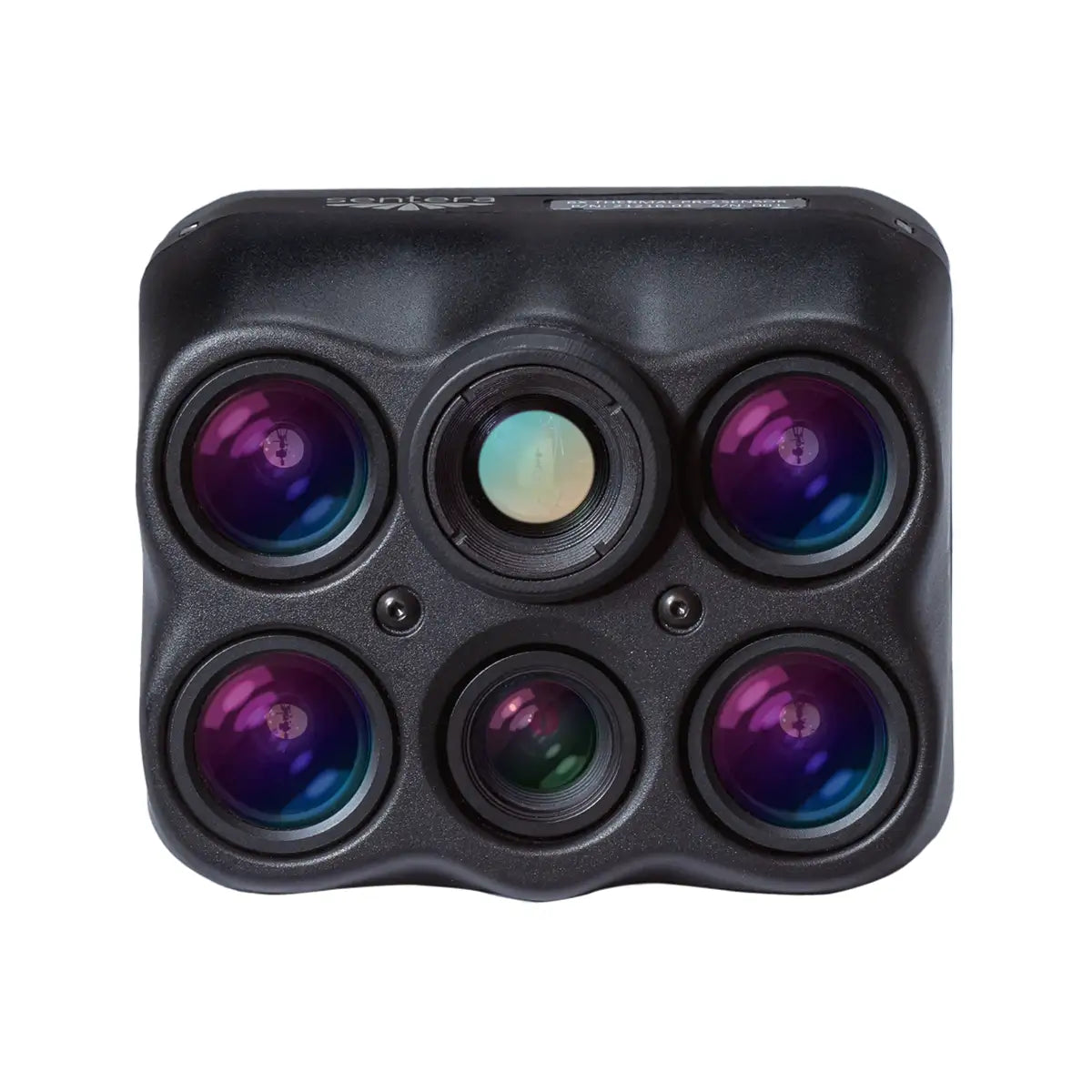

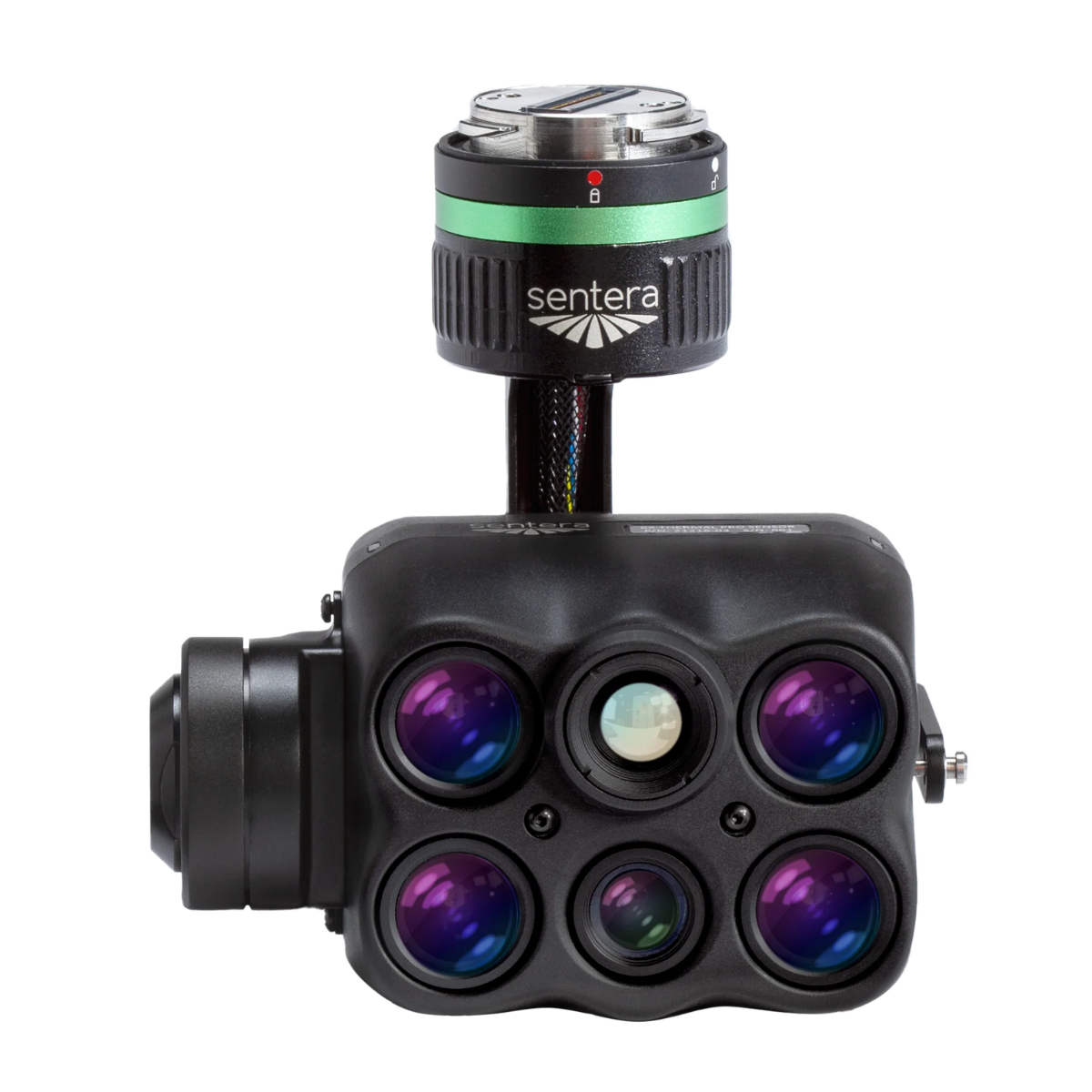

Sentera 6X Thermal Pro Sensor Kit for M300/M350

The Sentera 6X Thermal Pro Sensor Kit for DJI Matrice 300 and Matrice 350 takes multi-sensing to a whole new level by merging four 3.2MP radiometric multispectral imagers, a 20MP RGB camera, and a FLIR Boson 640 thermal imager-all in a lightweight, gimballed design. With a high capture rate and 512GB internal SSD storage, you can collect thermal LWIR, multispectral VIS-NIR, and high-resolution visual band imagery in one streamlined workflow.

Key Features

Elevate your aerial missions with unparalleled data fidelity and comprehensive sensing capabilities.

• Six Sensors in One: Four 3.2MP multispectral, one 20MP RGB, and one 640 FLIR Boson radiometric thermal camera
• High Resolution & Accuracy: FLIR Boson 640 ensures four times the thermal resolution of the 6X Thermal, plus each multispectral/RGB imager has a dedicated optical path
• Fast Capture Rate & Real-Time Registration: Up to 5 fps sustained, with onboard multi-layer registration for precise, synchronized data
• 512GB Internal SSD & Lightweight Build: Maximize flight time and efficiency while storing large datasets
• Plug-and-Play Integration: Compatible with popular UAS platforms and easy to integrate using common interfaces and I/O options
• NDAA Compliant: Secure hardware ensuring confident, professional deployments
• Included Accessories: Incident light sensor and calibrated reflectance panel for reliable radiometric accuracy

Applications

From advanced analytics to critical environmental assessments, the 6X Thermal Pro excels in a variety of use cases.

• Evaporation Analysis & Water Stress: Detect moisture deficits and optimize irrigation scheduling
• Multispectral, RGB, DSM/Elevation & Thermal Mapping: Consolidate key data layers into a single flight
• Residue Cover & Carbon Monitoring: Validate conservation practices and soil health metrics
• Crop Health, Damage, & Disease Detection: Identify nutrient stress and potential threats swiftly
• Forest Fire Detection & Active Flame Identification: Monitor hot spots and assess wildfire spread in real time
• Soil & Vegetation Moisture Levels: Gather precise thermal and multispectral data for better resource management

Why Buy from DSLRPros

• Expert consultations for sensor selection and data workflows
• Fast shipping and reliable service to keep projects on schedule
• Comprehensive after-sales support, including integration assistance
• Competitive pricing on advanced drone solutions

Specifications

• Resolution
  • 2048px by 1536px (Multispectral)
  • 5184px by 3888px (RGB)
  • 640 x 512 (Thermal)
• Shutter Type
  • Global (Multispectral)
  • Electronic Rolling Shutter (RGB)
  • Shutterless (Thermal)
• Sensor
  • Sony IMX147 (RGB)
  • Sony IMX265 (Multispectral)
  • FLIR Boson 640R (Thermal)
• Power Input: 10.5 - 26V
• Power Consumption: 15W Typical, 18W Max
• Capture Rate: 5 FPS (0.2s interval)
• Storage: 512 GB Internal SSD
• Filter/Sensitivity (custom filtering is available)
  • Green: 550nm CWL x 20nm
  • Red: 670nm CWL x 30nm
  • Red Edge: 715nm CWL x 10nm
  • NIR: 840nm CWL x 20nm
  • RGB: IR cut 650nm
  • Thermal Infrared: Radiometric 8μm to 14μm
• Interfaces: USB-C 3.0, Gigabit Ethernet, PPS, Serial, Discrete I/O
• Supported Protocols: DJI, MAVlink V1 & V2, Custom
• Image Format: 8-bit JPEG (RGB), 12-bit TIFF (MSP), 16-bit TIFF (Thermal)
• Weight (Sensor only): 290g
• Weight (With gimbal)
  • Skyport: 505g
  • Smart Dovetail: 525g
  • Gremsy Hyper Quick: 500g
  • ILS adds 58g to total
• GSD @200ft (60m)
  • 1.0in / 2.6cm (MSP)
  • 0.4in / 1.0cm (RGB)
  • 3.4in / 8.75cm (LWIR)
• Field of View
  • 47° HFOV (MSP and RGB)
  • 50° HFOV (Thermal)
• Dimensions (Sensor Only): 79.5mm x 66mm x 67.5mm
• Dimensions (With Gimbal): 111.8mm x 126.2mm x 106.4mm

Compatibility

• Fully Integrated
  • DJI M350, M300, M210, M200
  • Inspired Flight IF800 Tomcat, IF1200
  • Freefly Astro
• Custom Integration Options
  • Gimbal Interfaces
    • Freefly Smart Dovetail
    • Gremsy Hyper Quick
  • Non-Gimbal Interfaces
    • JST GH (Serial, Power In, Ethernet, PPS PWM)
    • USB-C (USB)
    • 2-56 Threaded Mounting Holes (Mounting 6 Locations)

In The Box

• 6X Thermal Pro Sensor with Gimbal
• ILS/GPS or GPS Only Module
• Mounting Brackets
