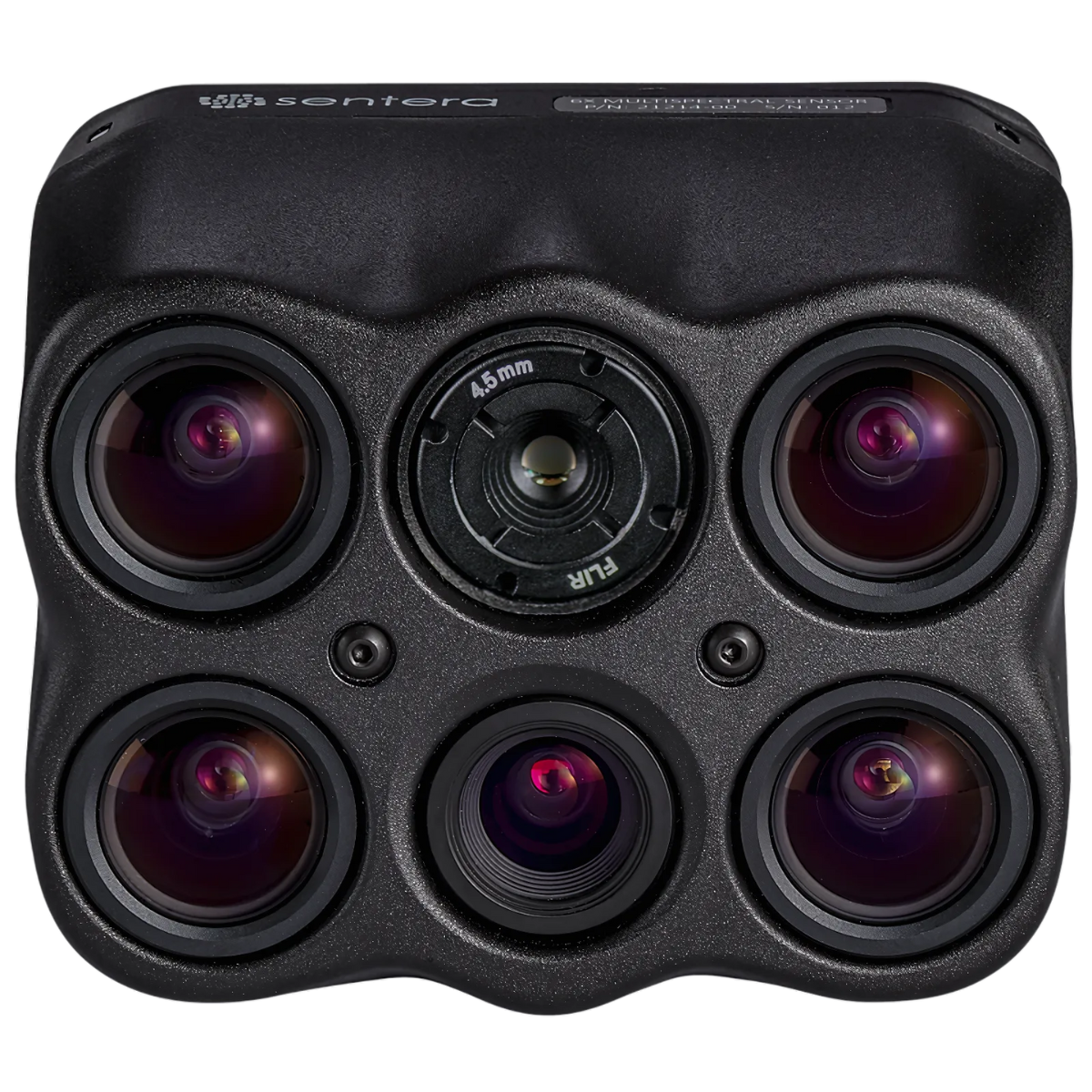

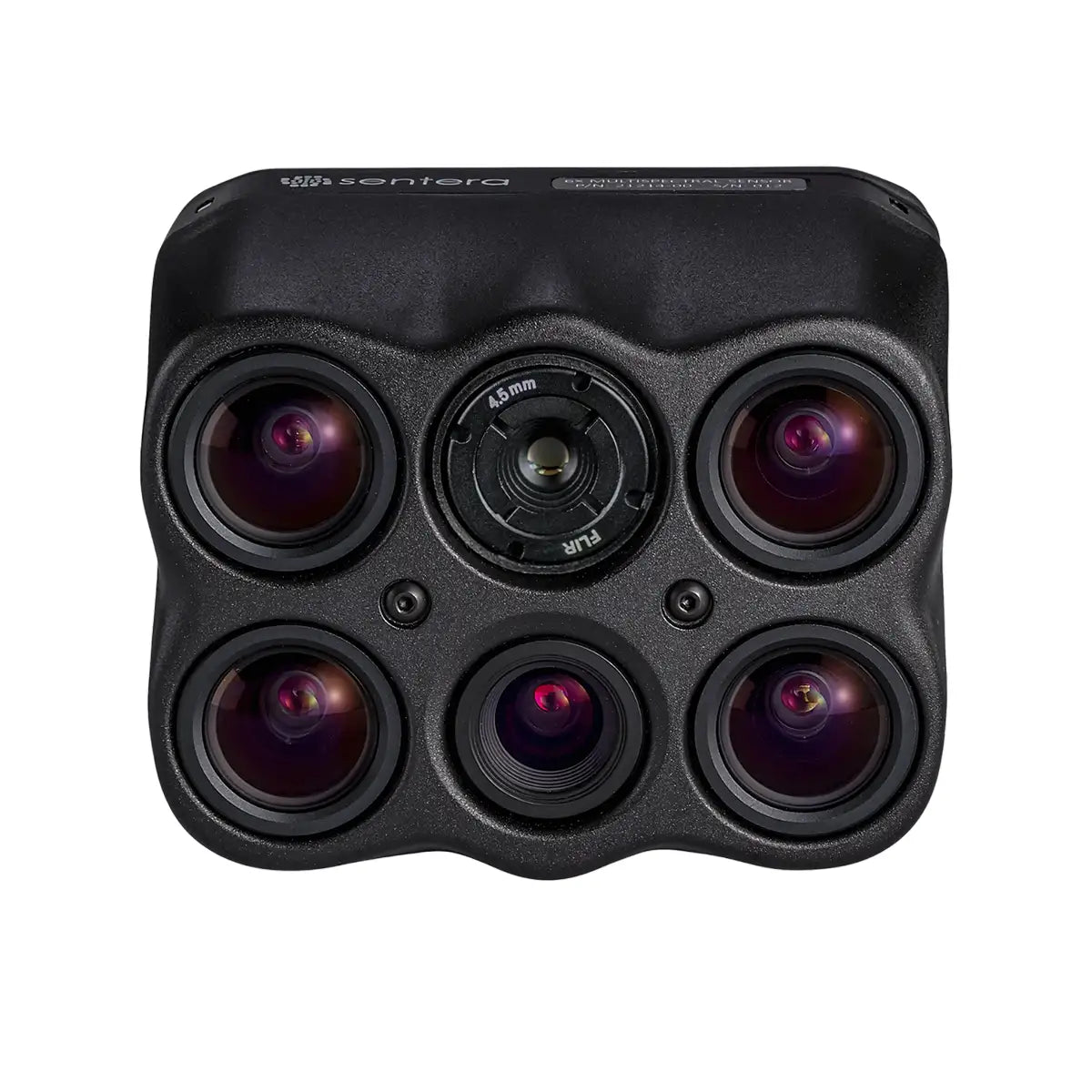

The Sentera 6X Thermal sensor merges best-in-class multispectral capabilities with longwave thermal imaging. By offering radiometrically accurate, pixel-level temperature measurement and synchronized data capture, it delivers powerful insights for agriculture, inspection, and beyond-all in a single flight.
Key Features
- Six Sensors in One: Four 3.2MP global shutter multispectral imagers, one 20MP RGB imager, and one FLIR Boson 320 radiometric thermal camera
- Real-Time Image Registration: Onboard multi-layer registration ensures precise, simultaneous data capture across all channels
- High-Throughput Data Capture: Sustained 5 fps capture rate and open, standardized data formats for efficient rig processing
- Accuracy & Calibration: Incident light sensor, calibrated reflectance panel, and optional ambient color correction for optimal data fidelity
- NDAA Compliant: Operate confidently with secure, high-quality hardware
Applications
- Irrigation & Water Stress Management: Use thermal data to spot moisture deficits for informed scheduling
- Thermal & Multispectral Mapping: Generate DSM/Elevation and orthomosaics for thorough analysis
- Conservation & Residue Monitoring: Verify sustainable practices and track carbon levels
- Crop Health & Disease Detection: Pinpoint nutrient stress or damage with synchronized RGB, multispectral, and thermal imagery
- Forest Fire & Active Flame Identification: Detect hot spots and monitor fire spread via longwave thermal
- Soil & Vegetation Moisture: Measure temperature variation to assess moisture content
Why Buy from DSLRPros
- Specialized drone knowledge for complex sensor integration
- Fast, reliable shipping to keep your missions on schedule
- End-to-end support from setup to data processing
- Competitive pricing on professional-grade drone solutions
Specifications
- Resolution
- 2048px by 1536px (Multispectral)
- 5184px by 3888px (RGB)
- 320px by 256px (Thermal)
- Shutter Type
- Global (Multispectral)
- Electronic Rolling Shutter (RGB)
- Shutterless (Thermal)
- Sensor
- Sony IMX147 (RGB)
- Sony IMX265 (Multispectral)
- FLIR Boson 320R (Thermal)
- Power Input: 10.5 - 26V
- Power Consumption: 15W Typical, 18W Max
- Capture Rate: 5 FPS (0.2s interval)
- Storage: 512 GB Internal SSD
- Filter/Sensitivity (custom filtering available)
- Green: 550nm CWL x 20nm
- Red: 670nm CWL x 30nm
- Red Edge: 715nm CWL x 10nm
- NIR: 840nm CWL x 20nm
- RGB: IR cut 650nm
- Thermal Infrared: Radiometric 8μm to 14μm
- Interfaces: USB-C 3.0, Gigabit Ethernet, PPS, Serial, Discrete I/O
- Supported Protocols: DJI, MAVlink V1 & V2, Custom
- Image Format: 8-bit JPEG (RGB), 12-bit TIFF (MSP), 16-bit TIFF (Thermal)
- Weight (Sensor only): 280g
- Weight (With gimbal)
- Skyport: 495g
- Smart Dovetail: 515g
- Gremsy Hyper Quick: 490g
- ILS adds 58g to total
- GSD @200ft (60m)
- 1.0in / 2.6cm (MSP)
- 0.4in / 1.0cm (RGB)
- 6.9in / 17.5cm (LWIR)
- Field of View
- 47° HFOV (MSP and RGB)
- 50° HFOV (Thermal)
- Dimensions (Sensor Only): 79.5mm x 66mm x 67.5mm
- Dimensions (With Gimbal): 111.8mm x 126.2mm x 106.4mm
Compatibility
- Fully Integrated
- DJI M350, M300, M210, M200
- Inspired Flight IF800 Tomcat, IF1200
- Freefly Astro
- Custom Integration Options
- Gimbal Interfaces
- Freefly Smart Dovetail
- Gremsy Hyper Quick
- Non-Gimbal Interfaces
- JST GH (Serial, Power In, Ethernet, PPS PWM)
- USB-C (USB)
- 2-56 Threaded Mounting Holes (Mounting 6 Locations)
- Gimbal Interfaces
In The Box
- 6X Thermal Sensor with Gimbal
- ILS/GPS or GPS Only Module
- Mounting Brackets
