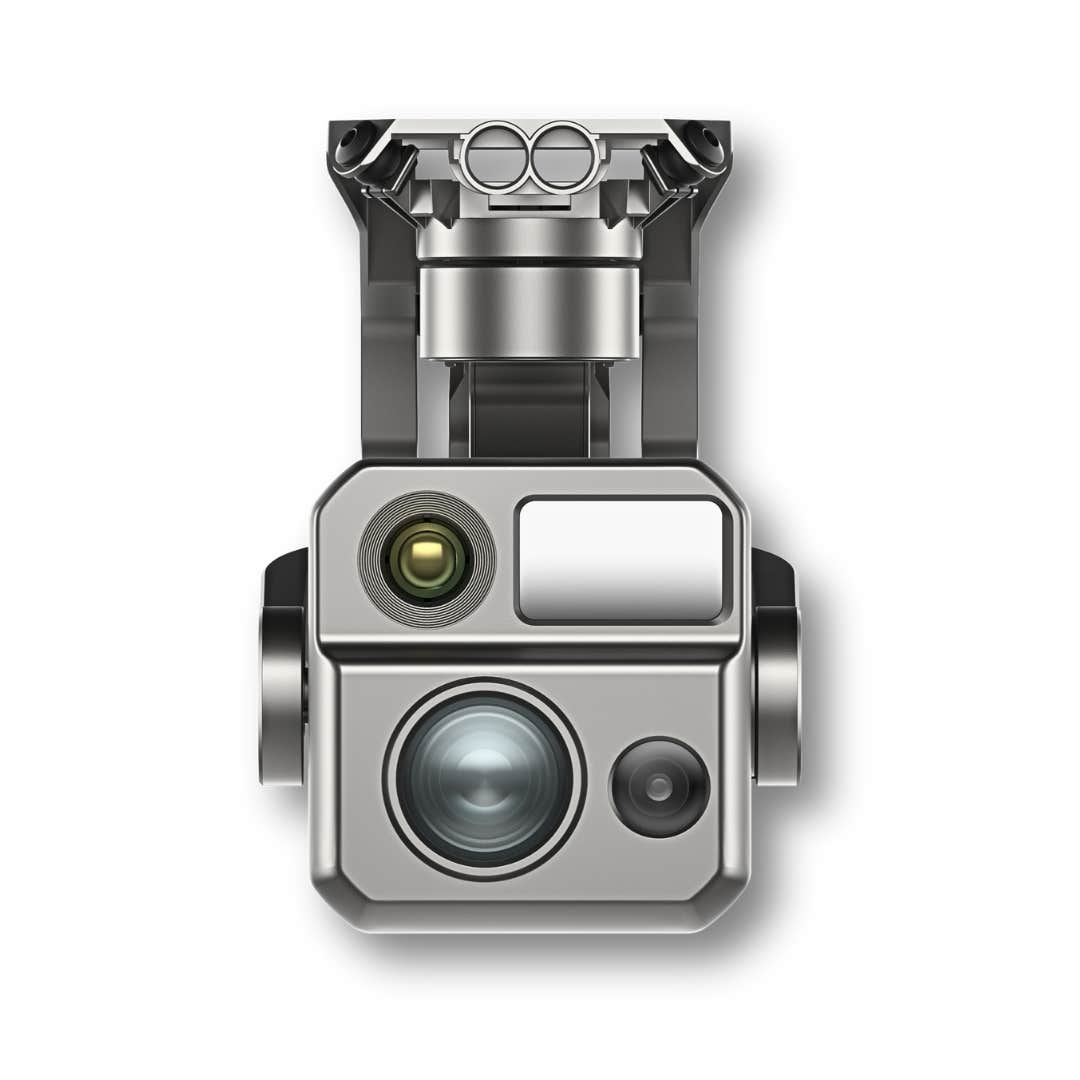

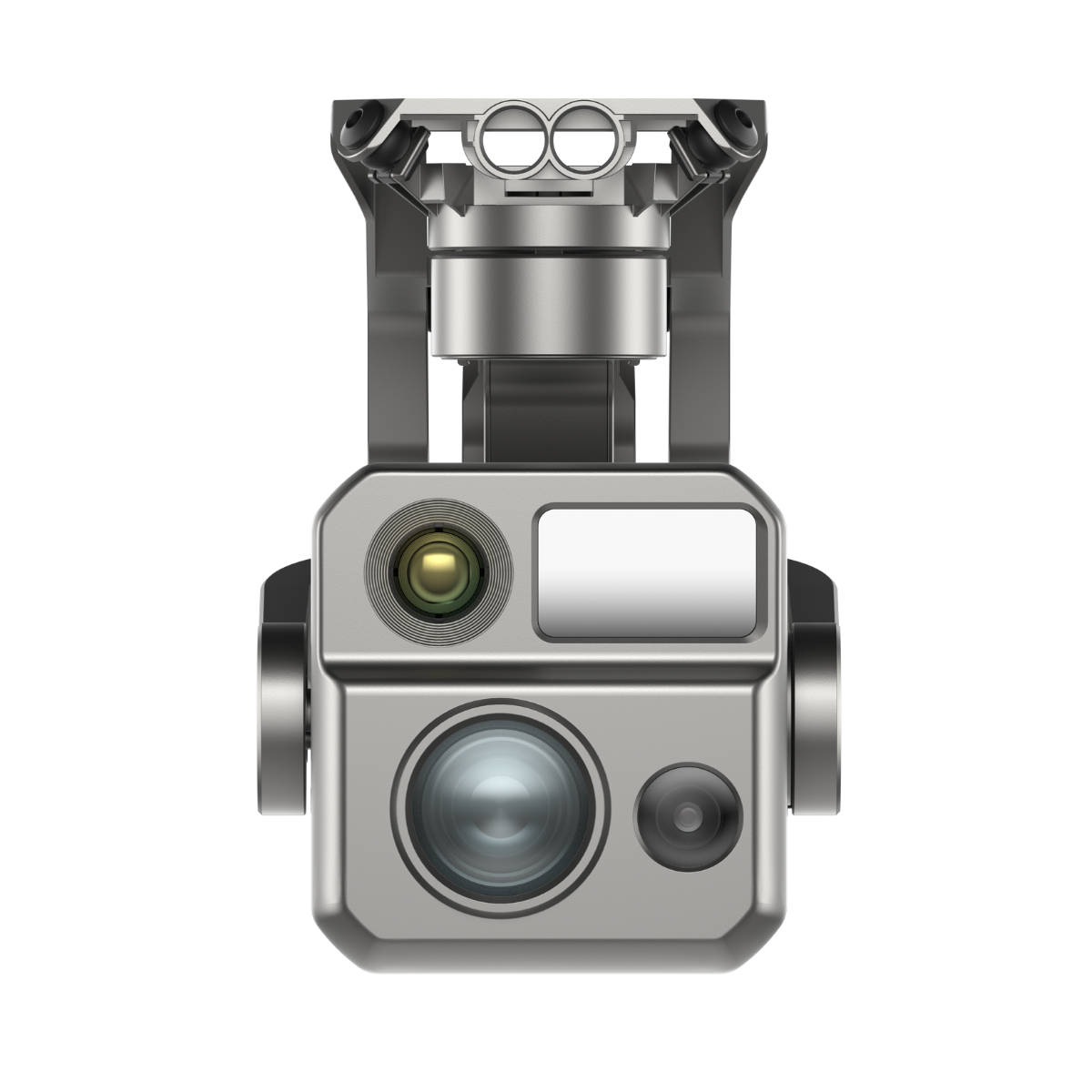

Unmatched Imaging Power: The EVO Max 4N Gimbal Camera
The EVO Max 4N gimbal camera features are designed for professionals who demand precision, versatility, and clarity in any environment. This multi-sensor payload for EVO Max 4N combines visual, thermal, and rangefinding technologies into one seamlessly integrated system, making it a powerhouse for aerial imaging across industries.
Innovative and Easy-to-Use Payload Design
Engineered for quick deployment, the EVO Max 4N’s camera payload can be mounted or removed in seconds with just two screws. This simple mechanism allows for rapid repairs, upgrades, or swaps—ensuring minimal downtime during critical missions.
Advanced Multi-Sensor Camera System
- Starlight Camera – A 2.3MP night vision camera capable of capturing high-detail imagery in near-total darkness. Its exceptional low-light sensitivity ensures accurate target tracking even in challenging conditions.
- Wide Camera – A 50MP sensor supporting 4K 30fps video, enhanced by Moonlight Algorithm 2.0 for reduced noise, improved HDR, and sharp detail in low-light scenarios. ISO can reach up to 64000 for superior night performance.
- Thermal Camera – A 640×512 high-resolution sensor with 30fps video support and zoom capabilities of EVO Max 4N camera reaching up to 16x digital zoom—ideal for detecting heat signatures from a distance.
- Laser Rangefinder – Provides precise coordinates and altitude readings of targets up to 0.75 miles away, instantly displayed on the controller screen.
Precision Zoom and Tracking Capabilities
Whether identifying structural defects, monitoring wildlife, or tracking suspects, the zoom capabilities of EVO Max 4N camera offer both optical and digital magnification. This allows operators to keep a safe distance while still acquiring detailed visuals for inspection, documentation, or analysis.
Built for Demanding Missions
The EVO Max 4N camera system excels in public safety, industrial inspections, search and rescue, and mapping operations. Its multi-sensor payload for EVO Max 4N delivers real-time situational awareness, enabling faster, more informed decision-making from the air.
From crisp daylight imaging to precision thermal detection and long-range measurement, the EVO Max 4N’s camera payload is a mission-ready tool for professionals who can’t compromise on performance.
Contact us today to learn more or request a live demonstration and experience its capabilities firsthand.
Specifications
Gimbal
- Mechanical Range:
- Pitch: -135° to 45°
- Yaw: -45° to 45°
- Roll: -45° to 45°
- Controllable Range: -90° to 30°
- Stability System: 3-axis mechanical gimbal (pitch, yaw, roll)
- Max Control Speed (Pitch): 200°/s
- Angular Vibration Range: <0.005°
- Sensor: 1/2" CMOS, Effective pixels: 48M
- Lens:
- Focal Length: 11.8-43.3mm (35mm equivalent: 64-234mm)
- Aperture: f/2.8-f/4.8
- Focusing distance: 5m ~ ∞
- Exposure Compensation: ±3EV 0.3EV/step
- ISO Range:
- Normal Mode:
- Auto: ISO100 - ISO6400
- Manual:
- Photo: ISO100 - ISO12800
- Video: ISO100 - ISO6400
- Normal Mode:
- Shutter Speed:
- Photo: 8s - 1/8000s
- Video: 1s - 1/8000s
- Max. Photo Resolution: 8000×6000
- Max. Video Resolution: 7680×4320
EVO Max 4N Night Vision Camera
- Sensor: Effective Pixels: 2.3M
- Lens:
- Focal Length: 35mm (equivalent 41.4mm)
- FOV: 52°
- Zoom Range: 1-8x, supports linkage zoom
- ISO Range:
- Auto: ISO100-ISO450000
- Super Sensitive Mode: Auto ISO100-ISO450000
- Camera Modes: Single shot (default), long press for continuous shots
- Photo Format: JPG
- Photo Resolution: 1920×1200
- Video Format: MP4
- Video Resolution: 20Mbps (1920×1200 P30)
- HDR Video: Auto
- Video Output: Super Sensitive Mode: 1920×1200 P30
EVO Max 4N Thermal Camera
- Sensor: Uncooled VOx Microbolometer
- Lens:
- FOV: 61°
- Focal Length: 9.1mm
- Aperture: f/1.0
- Focusing Distance: 2.2m ~ ∞
- Infrared Temperature Measurement Accuracy: ±3°C or ±3% of reading (using the larger value) at ambient temperature range from -4°F to 140°F (-20°C-60°C)
In the Box
- 1x Autel EVO Max 4N Gimbal Camera
