ACSL SOTEN Thermal Package - Thermal Clarity Meets Tactical Control
Built for Professionals Who See What Others Miss
The ACSL SOTEN Thermal Package is a complete, NDAA-compliant drone system built for operators who need thermal imaging to make fast, informed decisions in the field. Whether you're conducting search and rescue, utility inspections, or security operations, this package pairs advanced thermal optics with a rugged smart controller for real-time visibility in complex environments.
Stabilized Thermal and EO Imaging with Seamless Control

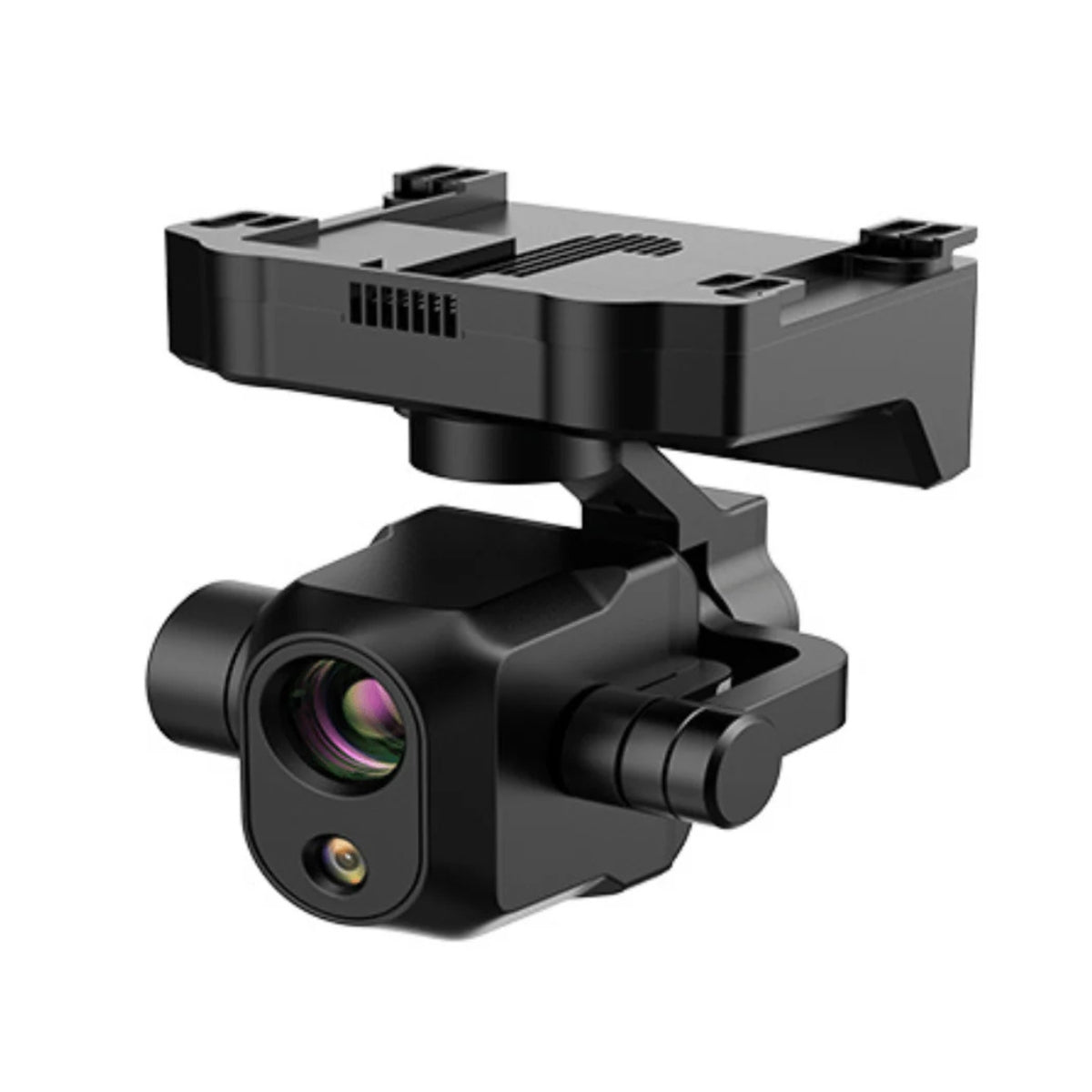

At the heart of this bundle is the ACSL SOTEN FLIR Hadron 640R Thermal Camera, delivering 640 x 512 thermal resolution at 60Hz with radiometric capabilities. The integrated EO sensor offers 64MP stills and crisp 4K video. Both are stabilized by a 3-axis gimbal for smooth, clear footage. With the TENSO Smart Controller, you'll gain AES256-secure control, direct exposure adjustments, and a daylight-readable 5" display-ideal for tactical or industrial use.
Key Features
Designed for field professionals who require precision thermal imaging, secure operation, and durability in one streamlined package.
- Includes ACSL SOTEN FLIR Hadron 640R Thermal Camera with stabilized 3-axis gimbal
- Thermal: 640 x 512 resolution, 13.8mm focal length, 32° HFOV, 60Hz video
- EO: 64MP photos and 4K video at 30Hz, 67° HFOV

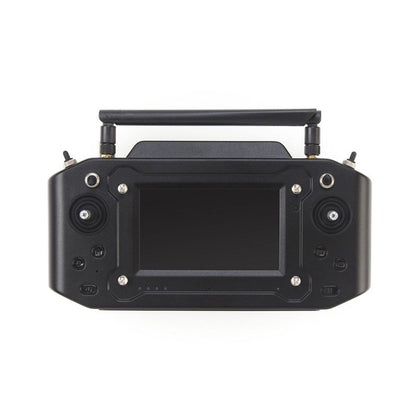

- TENSO Smart Controller: 5" 1080p screen, IP43-rated, 3-hour battery life
- AES256 encrypted comms between controller and drone
- Direct exposure control and gimbal customization features
- LTE/WiFi-enabled control with 2.5-mile operating range
- Hot-swappable camera bay for fast mission-specific payload changes
- NDAA and ISO15408-compliant for secure operations
- FAA Remote ID compliant
- 1.7 kg foldable drone with up to 25-minute flight time
Applications
This package is ideal for professionals who rely on thermal data for operational awareness, diagnostics, and response.
- Search and rescue and nighttime emergency operations
- Roof, powerline, and infrastructure heat mapping
- Security and tactical surveillance missions
- Fire scene management and hotspot detection
- Agricultural irrigation and soil temperature analysis
- Environmental and wildlife monitoring
Why Buy from DSLRPros
DSLRPros has a long track record of supporting professionals in the field. We understand the importance of thermal clarity, encrypted control, and fast deployment. From onboarding and sensor setup to post-sale support, our experts ensure that your ACSL SOTEN Thermal Package performs from the first flight.
You'll get direct access to drone specialists who can help you tailor this system to your workflow. Whether you're a public safety team, industrial inspector, or tactical unit, we'll help you fly with confidence, compliance, and clarity.
Get the ACSL SOTEN Thermal Package from DSLRPros and put thermal data to work-where and when it counts.
Specifications
- Dimensions: Unfolded: 637mm x 560mm (including propellers), Folded: 162mm x 363mm
- Height: Unfolded 153mm (including propellers)
- Weight: 1,720g (including standard camera and battery)
- Number of rotor blades: 4
- Intelligent battery: Lithium-ion battery 94Wh, 1 pc
- Operating frequency: 2.412 - 2.477 GHz
- Hovering accuracy (using vision positioning): Vertical: ±0.1m, Horizontal: ±0.3m
- Hovering accuracy (GNSS): Vertical: ±0.5m, Horizontal: ±1.5m
- Maximum pitch angle: 30°
- Maximum angular velocity: Pitch: 80°/s, Yaw: 45°/s
- Maximum ascent speed: 3m/s
- Maximum descent speed: 2m/s
- Maximum takeoff weight: 2,000g
- Maximum speed (no wind): 15m/s
- Operational limit altitude: 2000m
- Maximum airspeed: 15m/s
- Max flight time: With standard camera, wind speed 8m/s: 25min; Without standard camera, wind speed 8m/s: 29min
- Optional Camera: Infrared camera + visible camera, Multispectral camera, Optical zoom camera
- Ingress protection: IP43 (with camera, gimbal, and battery)
- GNSS: GPS + QZSS + GLONASS + SLAS
- Operating temperature: 0°C to 40°C
- Optional items: LTE Comms Module, Spare Battery
- Obstacle detection range: Forward: 10m, Up: 5m, Down: 5m
- Obstacle detection angle: 70° horizontal, 40° vertical
- Obstacle detection freq.: Forward: 10Hz, Up: 10Hz, Down: 10Hz
- Operating environment: Adequate lighting and clear texture
- Infrared Sensor - Obstacle detection range: Up: 2m, Down: 12m
- Infrared Sensor - Obstacle detection angle: Up: 27°, Down: 2°
- Infrared Sensor - Obstacle detection freq.: Up: 50Hz, Down: 50Hz
- Infrared Sensor - Operating environment: Large, diffuse or reflective obstacles
- Remote Controller - Operating frequency: 2.412 to 2.477 GHz
- Remote Controller - Maximum distance: 4km (without obstructions or radio interference)
- Remote Controller - Battery life: Up to 4 hours
- Remote Controller - Operating temperature: 0°C to 40°C
- Remote Controller - Security: AES encryption method
- Remote Controller - Multiple operations: Control can be transferred between two radio controllers
- Supported Mobile Devices - OS: Android™ 4.1 or higher
- Supported Mobile Devices - Terminal: USB Type-C
- Supported Mobile Devices - Confirmed models: Sony Xperia™ 5, 10 III
- Visible Camera - Effective pixels: 20 megapixels
- Visible Camera - Still image shooting method: JPEG / DNG / JPEG+DNG
- Visible Camera - Image quality: Superfine / Fine / Normal; Resolution: 20MP / 15MP / 10MP
- Visible Camera - Video method: MOV / H.264
- Visible Camera - Video quality: 4K: 30fps; 2.7K: 60/30fps; Full HD: 120/60/30fps; HD: 60/30fps; nHD: 240/120/60/30fps
- Visible Camera - Video recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
- Visible Camera - Sensor size: 1 inch
- Visible Camera - Shutter system: Mechanical
- Visible Camera - Focus mode: Single AF / Continuous AF / MF; Area: Multi AF / Spot AF
- Visible Camera - Exposure compensation: -2EV to +2EV (step of 1/3EV)
- Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
- Visible Camera - Security: Data encryption can be enabled/disabled
- Camera Gimbal - Mechanism: 3-axis
- Camera Gimbal - Operable range: Pan: ±85°; Tilt: -115° to 45°
- Camera Gimbal - Max speed: Pan: 60°/s; Tilt and roll: 100°/s
- Camera Gimbal - Control accuracy: ±0.02°
- Camera Gimbal - Switching method: One-touch camera switching
- Infrared + Visible Camera - Effective pixels: Visible: 12MP; Infrared: 81,920 pixels
- Infrared + Visible Camera - Temperature resolution: <60mK
- Infrared + Visible Camera - Dynamic range: Up to +140°C (high gain)
- Infrared + Visible Camera - Image quality: Superfine / Fine / Normal
- Infrared + Visible Camera - Video method: MOV / H.264
- Infrared + Visible Camera - Video quality: Full HD / HD
- Infrared + Visible Camera - Recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
- Infrared + Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
- Infrared + Visible Camera - Security: Encrypted data can be recorded; Encryption can be enabled/disabled

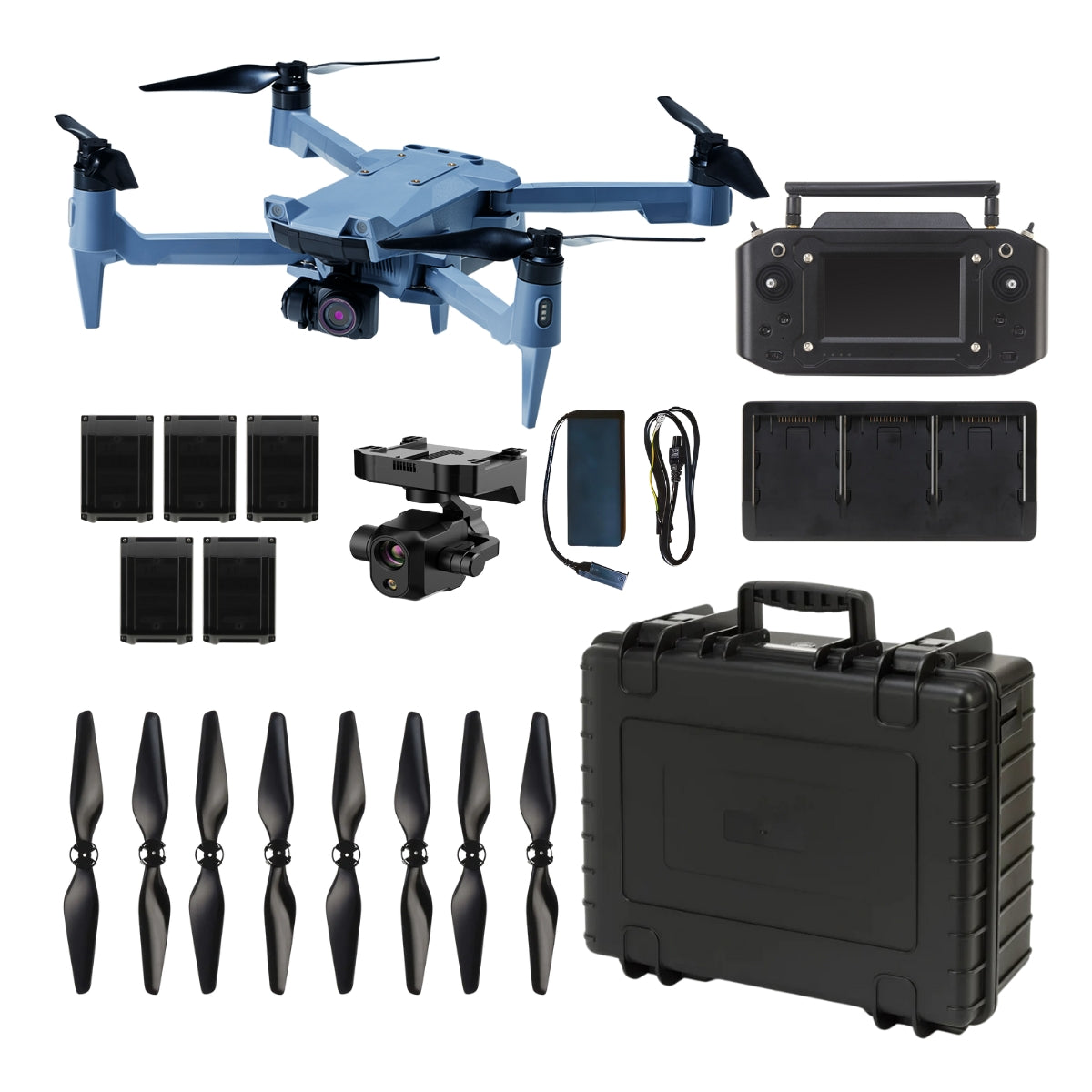

In The Box

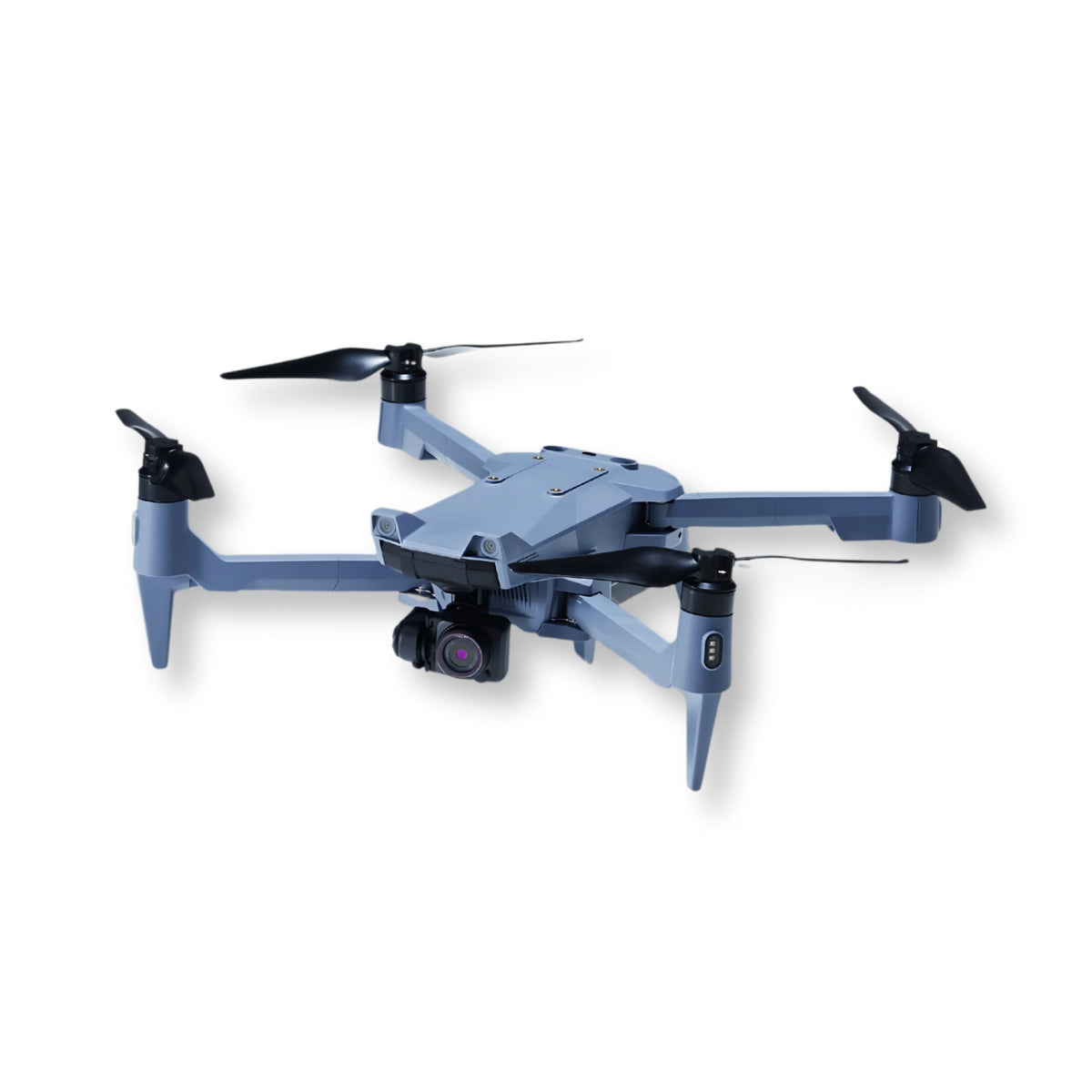

- 1x SOTEN Airframe
- 1x TENSO Smart Controller
- 1x Battery Charger
- 1x Triple Battery Charger
- 5x Smart Batteries
- 2x CW Propeller Set
- 2x CCW Propeller Set
- 1x Standard Payload
- 1x Thermal Payload (FLIR 640 × 512 Radiometric + 64 MP)
- 1x Hard Storage Case
