Sentera 65R Sensor Kit for Matrice 300 / Matrice 350 / Matrice 400 (27MM, Skyport V2)

Sentera 65R Sensor Kit for Matrice 300 / Matrice 350 / Matrice 400 (27mm, Skyport V2): 65MP global-shutter mapping for DJI Enterprise fleets

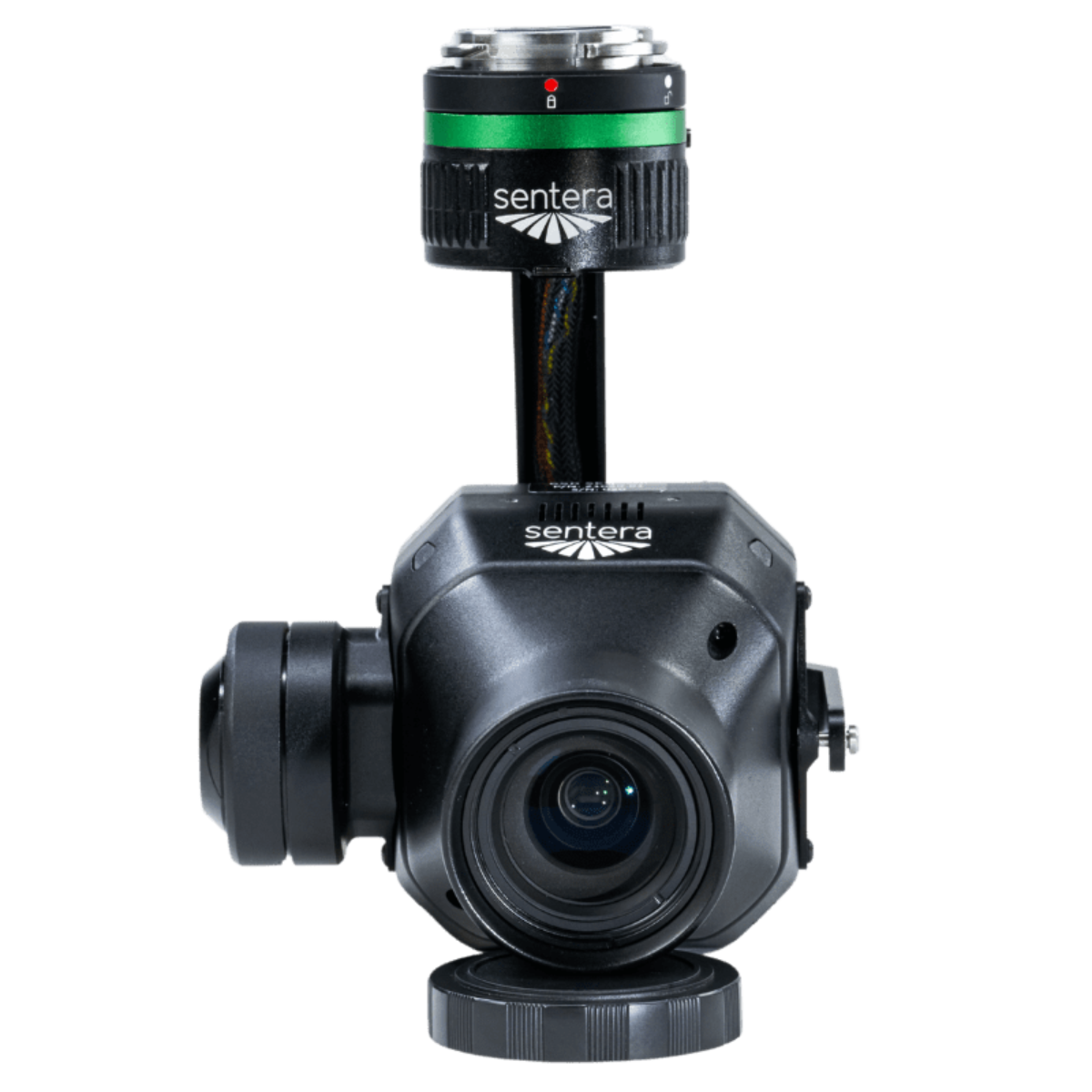

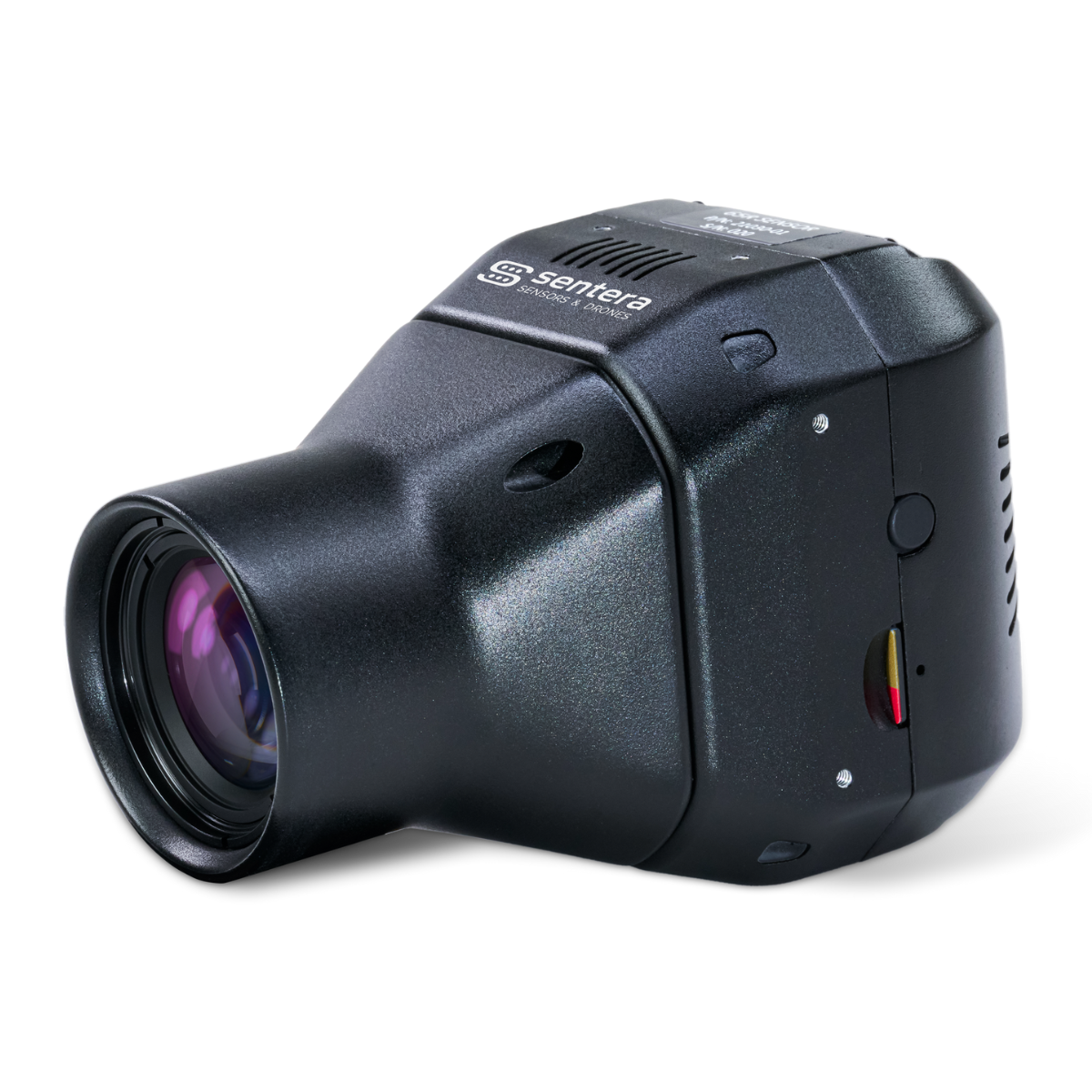

The Sentera 65R Sensor Kit for Matrice 300 / Matrice 350 / Matrice 400 (27mm, Skyport V2) is an ultra-high-resolution RGB mapping payload built for precision surveying, modeling, and monitoring. It uses a 65-megapixel Gpixel GMAX3265 global-shutter sensor capturing 9344 × 7000 pixel imagery at up to 3 fps for efficient large-area coverage. With Skyport V2 plug-and-play integration on supported Matrice platforms and RTK-aligned synchronization features, the 65R helps teams capture sharper datasets with fewer flight lines, consistent timing, and streamlined storage handling.

Mapping sensor highlights and workflow benefits

• 65MP global-shutter sensor captures sharp images during dynamic flight
• Native 9344 × 7000 resolution increases coverage per mapping pass
• 0.45 cm per pixel GSD at 125 ft (38 m)
• 1.43 cm per pixel GSD at 400 ft (122 m)
• 27mm lens balances wide coverage and fine surface detail
• 57.6° HFOV supports efficient corridor and area mapping routes
• 512 GB PCIe NVMe storage supports high-volume capture workflows
• PPS and exposure pulses support precise time and position alignment
• Integrated IMU supports consistent capture timing and geo-tagging accuracy

Imaging performance built for precision deliverables

The 65R is engineered around global-shutter capture to eliminate rolling-shutter distortion and motion artifacts common in aerial mapping. Its 3.2 µm pixel size and 9344 × 7000 resolution deliver dense image detail, supporting confident reconstruction and measurement workflows.

The 27mm lens and 57.6° horizontal field of view provide a balanced footprint for efficient coverage without sacrificing spatial fidelity. With PPS input for timing, exposure pulse output, and an integrated IMU, the payload supports repeatable capture sequences aligned to RTK-enabled operations.

Why the 65R accelerates enterprise mapping operations

For mapping teams, efficiency comes from capturing more usable pixels per image and reducing rework. The 65R’s 3 fps capture rate supports consistent overlap at operational flight speeds, while 512 GB of onboard PCIe NVMe storage reduces downtime from frequent offloads. A 9–26 V input range and 12 W typical power profile support predictable integration planning. At 330 g (including lens) and a compact 2.50 × 2.48 × 4.19 in (6.35 × 6.30 × 10.64 cm) form factor, it fits professional payload workflows without unnecessary complexity.

Platform compatibility and system integration

• Plug-and-play integration via DJI Skyport V2 gimbal interface
• Compatible with DJI Matrice 300 RTK using Skyport V2 integration
• Compatible with DJI Matrice 350 RTK using Skyport V2 integration
• Designed for DJI Matrice 400 series enterprise payload workflows
• USB-C and Gigabit Ethernet support fast data access and transfer
• UART and digital I/O support capture triggering and system control
• PPS input supports time and position synchronization for mapping

Professional application scenarios

• Topographic mapping: capture dense RGB imagery for accurate surface models
• Corridor surveys: map roads, pipelines, and utilities with consistent overlap
• Construction progress: produce repeatable orthomosaics for schedule tracking
• Land development: document sites for planning, grading, and verification
• Environmental monitoring: track change detection across broad project areas
• Asset documentation: build visual records for inspection and maintenance planning
• Disaster assessment: capture detailed context imagery for rapid situational mapping
• Mining operations: support volumetrics and site documentation with sharp imagery
• Research programs: collect standardized datasets for repeatable analytical comparisons

Designed for enterprise integration

The 65R is built for enterprise mapping programs that require repeatable capture, consistent interfaces, and predictable data handling. Skyport V2 integration streamlines deployment on supported Matrice aircraft, while PPS timing, exposure pulses, and the integrated IMU support consistent datasets across missions. Standardized interfaces and onboard NVMe storage help teams scale operations without adding workflow friction.

The Sentera 65R Sensor Kit delivers high-detail mapping imagery with global-shutter capture and enterprise-ready integration features. It is purpose-built for teams that prioritize accuracy, consistency, and efficient coverage across DJI Enterprise operations.

Available now from DSLRPros. Deploy 65MP global-shutter mapping on your Matrice fleet with expert support and proven enterprise workflows.
