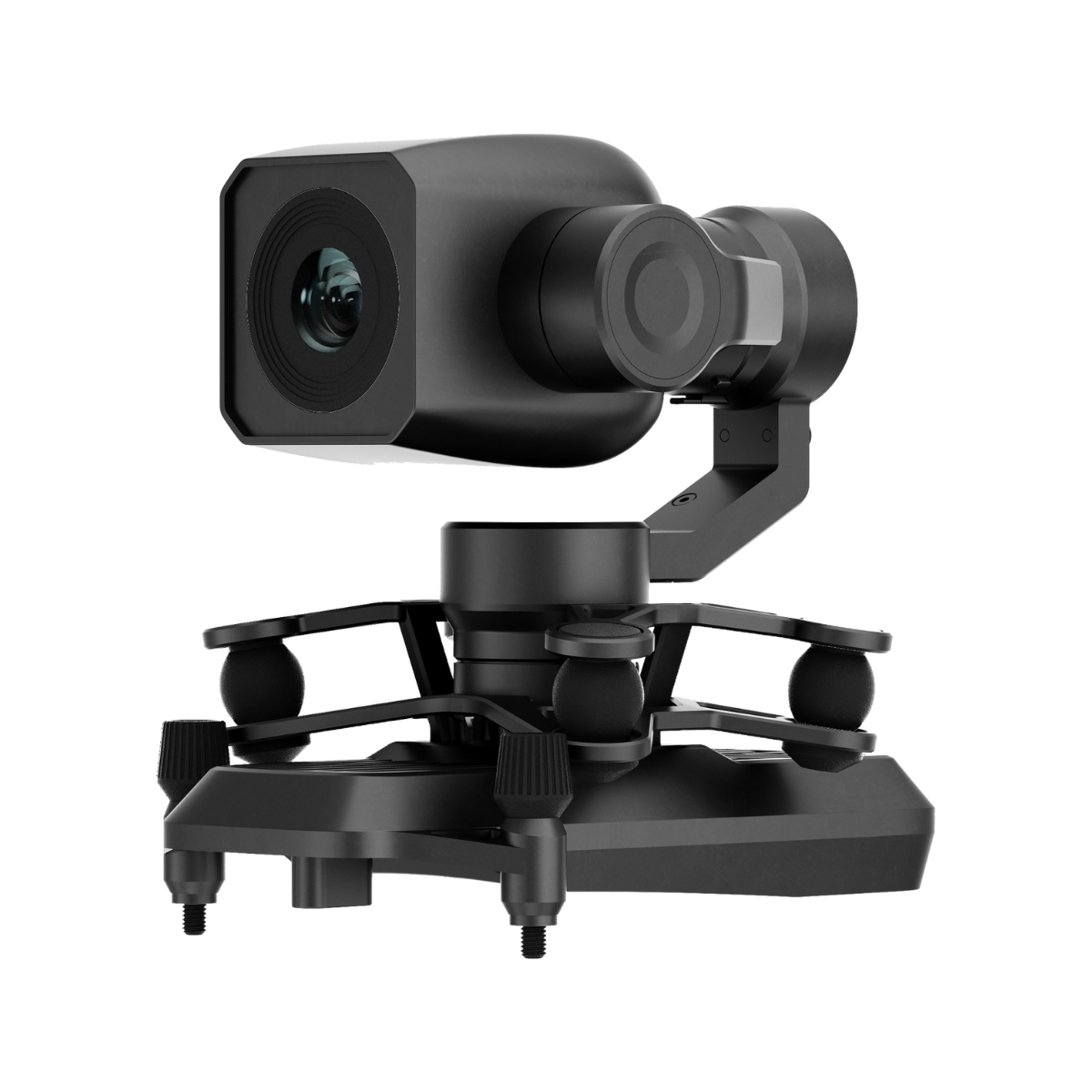

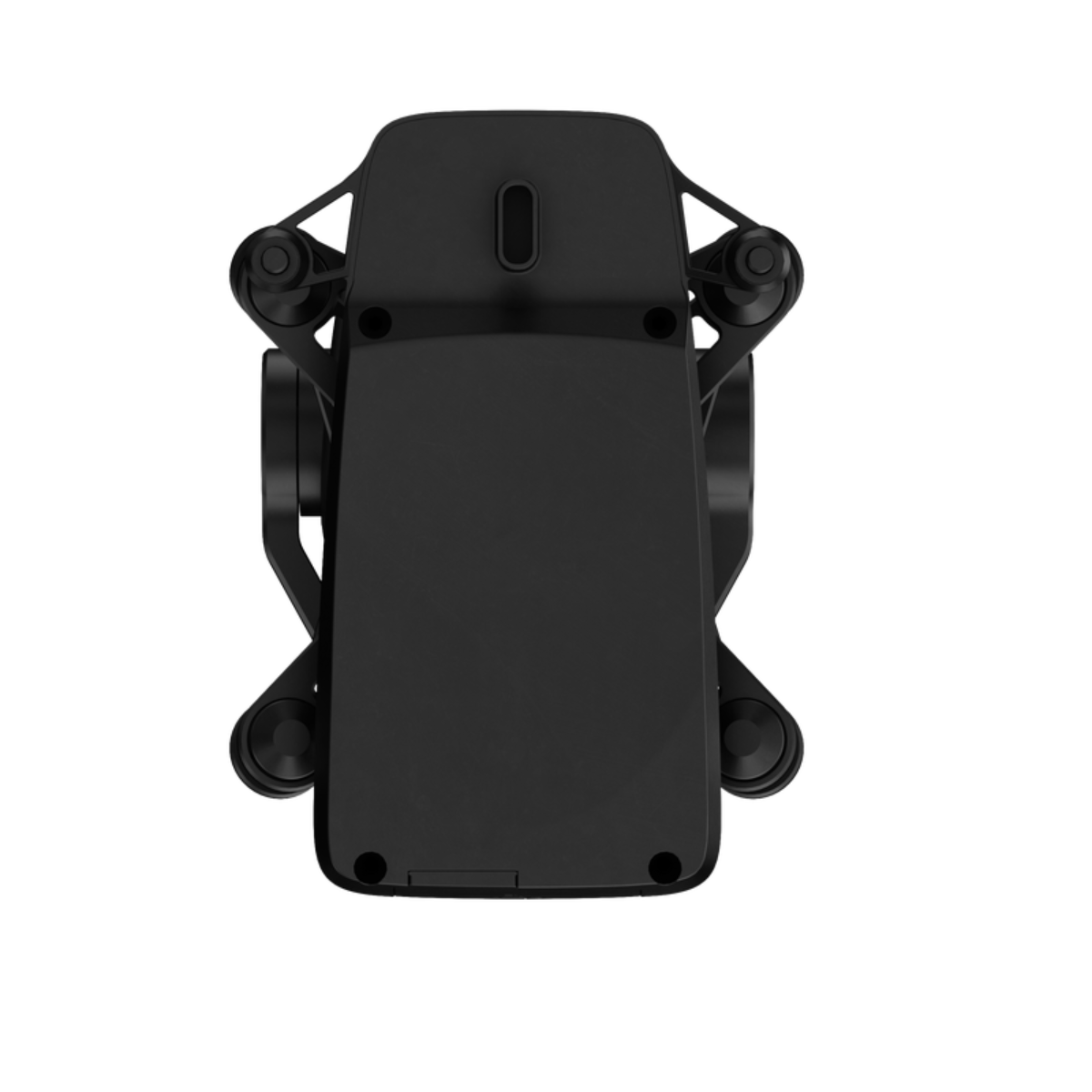

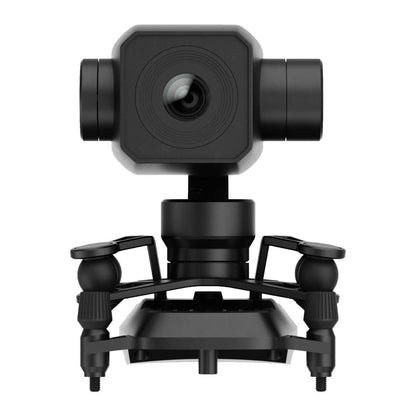

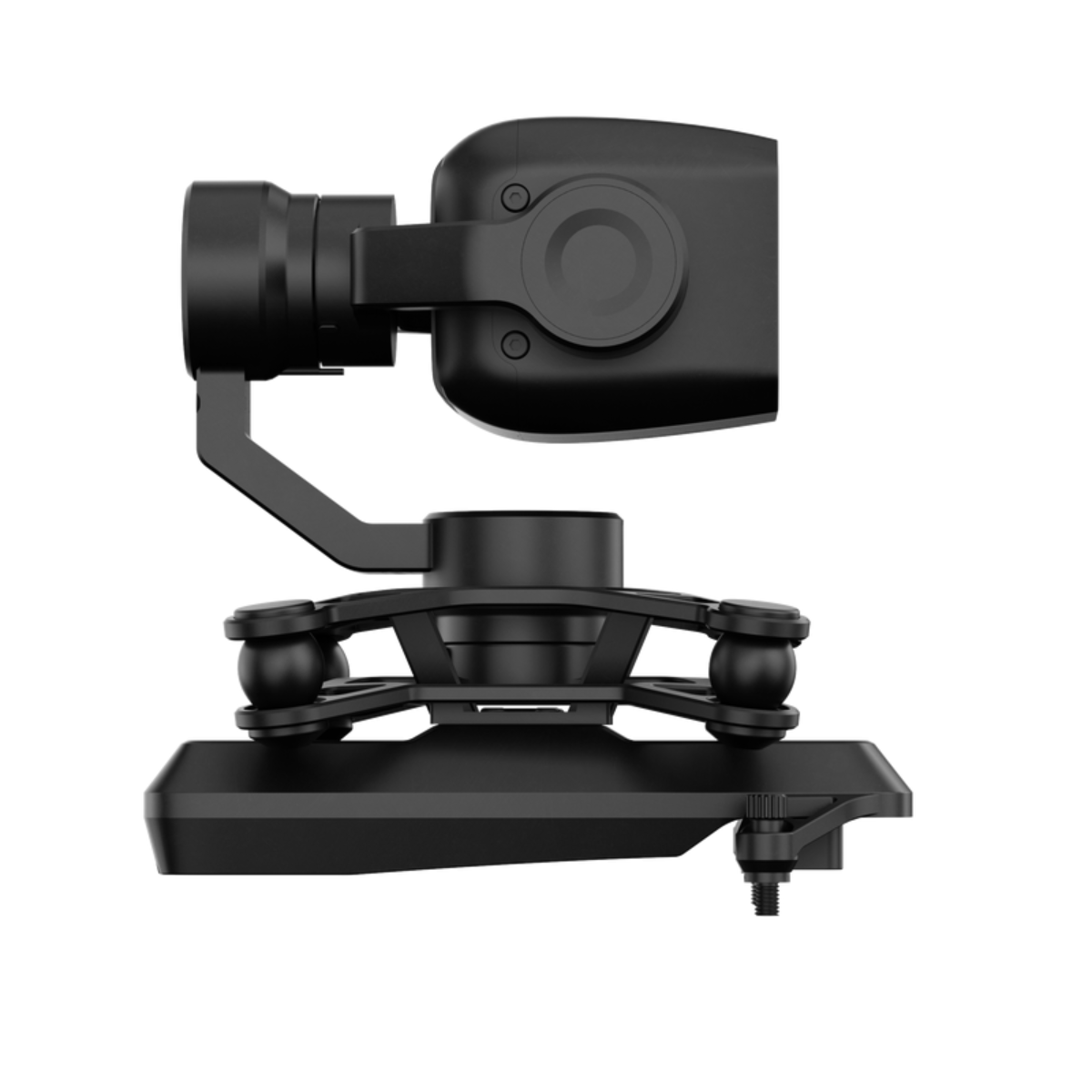

See the Night Like Never Before with the Deepthink S8

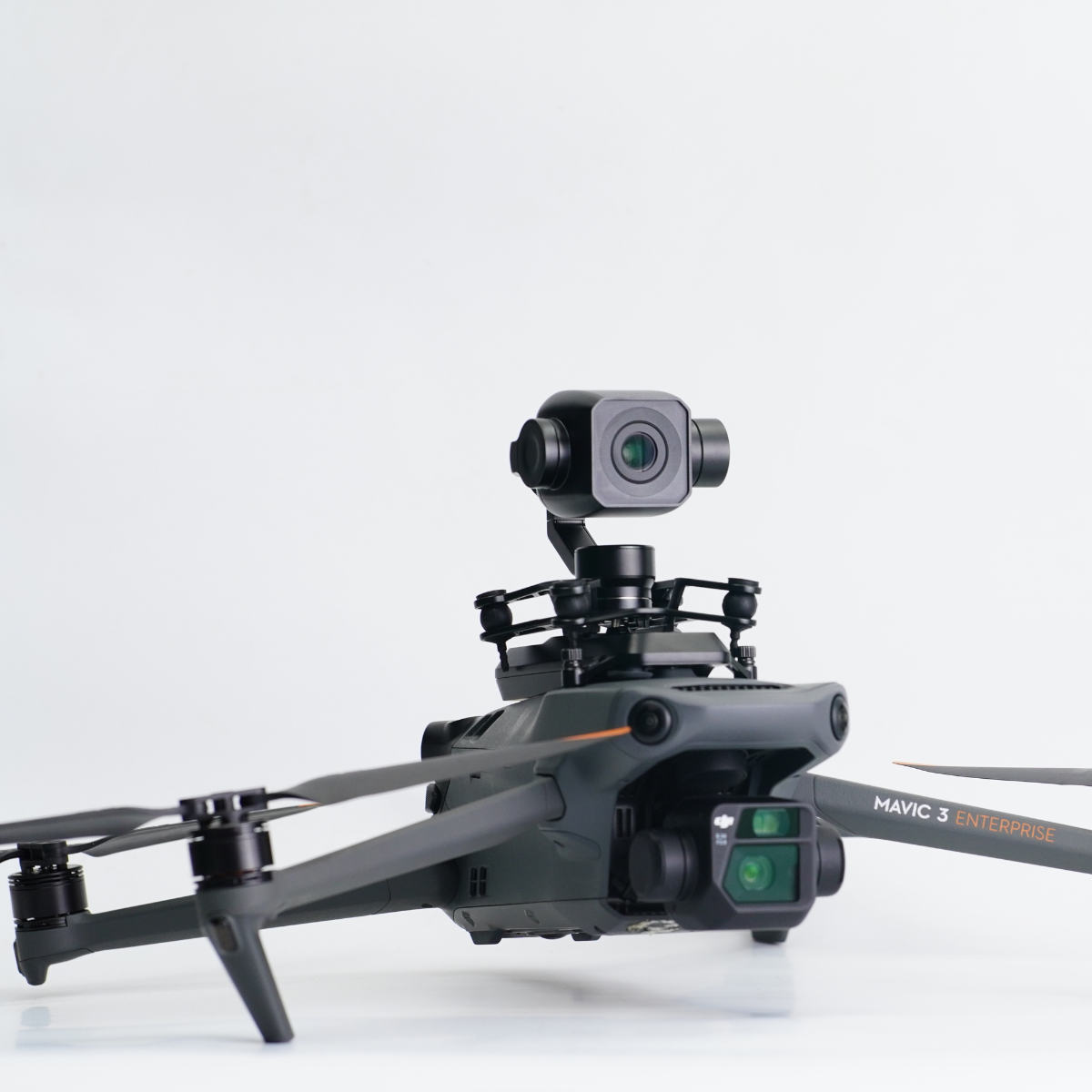

Elevate your night operations with the Deepthink S8 Night Vision Camera, engineered specifically for the DJI Mavic 3E/3T. Ideal for public safety, firefighting, search and rescue, and aerial inspections, this cutting-edge gimbal camera leverages advanced technology to deliver exceptional performance in low-light environments.
- Exceptional Night Vision: Equipped with a 1/1.8'' sensor and AI ISP technology, the S8 captures clear, color images in lighting as low as 0.0001 lux.
- Energy-Efficient Design: Consumes only 3W of power, supporting maximum flight duration without excessive battery drain.
- Unmatched Stability: Features a 3-axis stabilization system with a tilt angle range of ≤±0.005° for smooth, steady footage during flight.
- Seamless Integration: Connects effortlessly to the DJI Mavic 3E/3T via an e-port for easy setup. Compatible with DJI remote controllers through PSDK for efficient operation.
Whether you're tackling critical missions or capturing detailed nighttime visuals, the Deepthink S8 combines advanced technology with practical usability to ensure exceptional results every time.
Specifications
- Image Sensor: 1/1.8" Ultra Low Lux CMOS
- Min Illumination: Full Color: 0.0008 Lux, No Fill Night
- Video Resolution: 4MP/Full Color 2688×1520P
- Video Frame Rate: 5fps~30fps
- Video Codec: H.264
- White Balance: Auto
- Gain Control: Auto
- No Fill Light: Supported
- OTA Firmware Upgrading: Supported
- WDR: 120 dB
- SNR: ＞48 dB
- AI Denoising: Supported
- AI HDR: Supported
- AI Defogging: Supported
- Exposure Mode: Auto
Lens
- Focal Length: Actual Focal Length: 15.40 ±5% mm (Equivalent focal length: 74.07 mm)
- Aperture: F1.6
- FOV (D×H×V): 33.4° (D) × 29° (H) × 16.4° (V)
- Day-Night Mode: X
Stabilization System
- Angular Vibration Range: ±0.005°
- Mechanical Range: Tilt: -30° to +90°
- Mounting: E-PORT
- Power Supply: 13.6 V/3.26 A
Interface
- MicroSD Card: Max 1 TB
General
- Power Consumption: ≥3 W
- Ingress Protection Rating: X
- Working Temperature: -20℃ to 60℃ (-4℉ to 140℉)
- Working Humidity: ≤95%
- Dimension: L94.2 mm × W71.1 mm × H90 mm
- Net Weight: Approx. 200 g
In the Box
- 1x Deepthink S8 Night Vision Camera
- 1x Storage Case
- 1x User Manual
- 1x Certificate
- 1x MicroSD Card
- 1x Lens Cleaning Cloth
- 2x Desiccant
